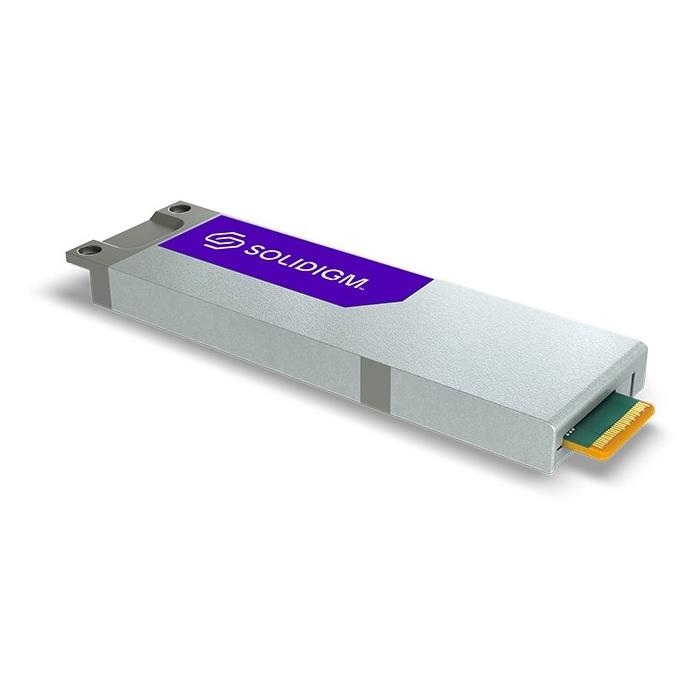

Solidigm SB5PHU7X076TOP 7.68TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 E1.S 9.5mm 3D TLC 2DWPD OPAL Encrypted D7-PS1010 Series

Enterprise-grade for cloud, AI, and data centers
High-performance PCIe 4.0, low-latency throughput
Optimized I/O for consistent real-world performance
Enhanced endurance for reliable, long-term operation

This NVMe Solid-State Drive (SSD) Features 7.68TB Storage Capacity. Built With PCIe Generation 5.0 x4, Interface. Designed in E1.S Thickness of 9.5mm Form Factor. 176L TLC 3D NAND Flash Technology, With a Durability Rating Of 2.0DWPD. Optimized For Extreme AI Compute Operating Environments. OPAL Encrypted. D7-PS1010 Series - OEM

The Solidigm D7-PS1010 is a high-performance PCIe 4.0 NVMe SSD designed for enterprise workloads, offering consistent performance, high reliability, and endurance. Available in E1.S 9.5mm form factor, it provides efficient storage solutions for cloud, AI/ML, and data center environments.

Extra Specifications for Solidigm SB5PHU7X076TOP 7.68TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 E1.S 9.5mm 3D TLC 2DWPD OPAL Encrypted D7-PS1010 Series

Main Specifications
Device Type	NVMe Solid state drive - internal
Capacity	7.68TB
Form Factor	E1.S 9.5mm
Interface	PCIe 5.0 x4, NVMe
NAND Flash Memory Type	176L TLC 3D NAND
Weight	10G
Performance
4KB Random Read	3000000 IOPS (4K Blocks)
4KB Random Write	400000 IOPS (4K Blocks)
Endurance DWPD	2DWPD
Average Latency	Latency - Random Read (typ.): 60μs
	Latency - Sequential Read (typ.): 60μs
	Latency - Sequential Write (typ.): 7μs
	Latency - Random Write (typ.): 7μs
Power
Power Consumption (Active)	23W
Power Consumption (Idle)	5W
Miscellaneous
MTBF	2.5M hours
Features	OPAL
Environmental
Operating Environment	Vibration - Operating: 2.17 GRMS (5 - 700 Hz) Max
	Vibration - Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
	Shock (Operating and Non-Operating): 1,000 G (Max) at 0.5 msec
	Operating Temperature Range: 0°C to 77°C

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	1-2 weeks
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	SOLIDIGM
Type of Support:	FULL
Phone No.:	833-313-7337
URL:	Click here for Manufacturer Website
