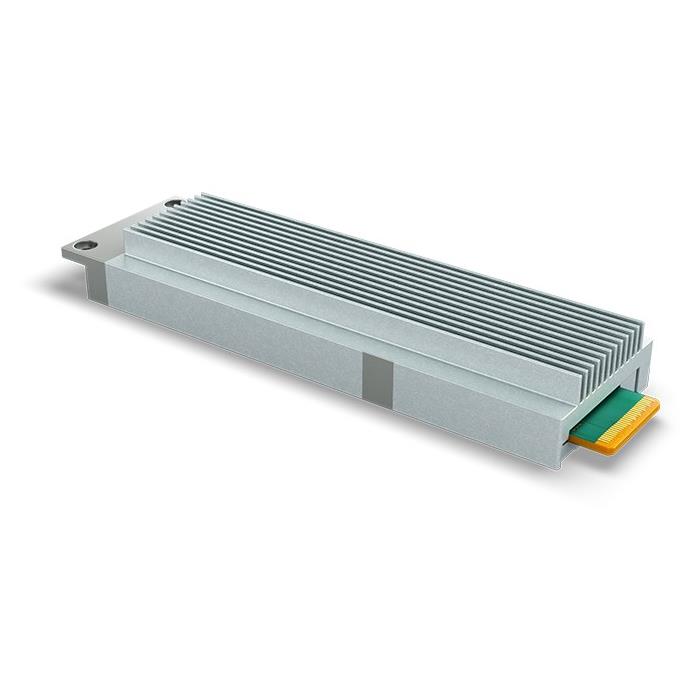

Solidigm SB5PHV7X038TOP Hard Drive 3.84TB NVMe PCIe x4 Lanes Generation 5.0 E1.S 15mm 3D TLC 2DWPD OPAL Encrypted D7-PS1010 Series

Enterprise-grade for cloud, AI, and data centers
High-performance PCIe 4.0, low-latency throughput
Optimized I/O for consistent real-world performance
Enhanced endurance for reliable, long-term operation

The Hard Drive Features 3.84TB Storage Capacity. NVMe Solid State Drive (SSD). Built With PCIe Generation 5.0 x4, Interface. Designed in E1.S Thickness of 15mm Form Factor. 176L TLC 3D NAND Flash Technology, With a Durability Rating Of 2.0DWPD. Optimized For Extreme AI Compute Operating Environments. OPAL Encrypted. D7-PS1010 Series - OEM

The Solidigm D7-PS1010 E1.S represents a breakthrough in thermal optimization, addressing the dual challenges of heat management and cost efficiency while delivering the high performance required for demanding AI workloads.

Extra Specifications for Solidigm SB5PHV7X038TOP Hard Drive 3.84TB NVMe PCIe x4 Lanes Generation 5.0 E1.S 15mm 3D TLC 2DWPD OPAL Encrypted D7-PS1010 Series

Main Specifications
Device Type	NVMe Solid state drive - internal
Capacity	3.84TB
Form Factor	E1.S 15mm
Interface	PCIe 5.0 x4, NVMe
NAND Flash Memory Type	176L TLC 3D NAND
Weight	75 gms +/- 10g
Performance
4KB Random Read	3200000 IOPS (4K Blocks)
4KB Random Write	315000 IOPS (4K Blocks)
Endurance DWPD	2DWPD
Average Latency	Latency - Random Read (typ.): 60μs
	Latency - Sequential Write (typ.): 7μs
	Latency - Random Write (typ.): 7μs
	Latency - Sequential Read (typ.): 10
Power
Power Consumption (Active)	18W
Power Consumption (Idle)	5W
Miscellaneous
MTBF	2.5M hours
Features	OPAL
Environmental
Operating Environment	Vibration - Operating: 2.17 GRMS (5 - 700 Hz) Max
	Vibration - Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
	Shock (Operating and Non-Operating): 1,000 G (Max) at 0.5 msec
	Operating Temperature Range: 0°C to 77°C

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	1-2 weeks
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	SOLIDIGM
Type of Support:	FULL
Phone No.:	833-313-7337
URL:	Click here for Manufacturer Website
