| Main Specifications |

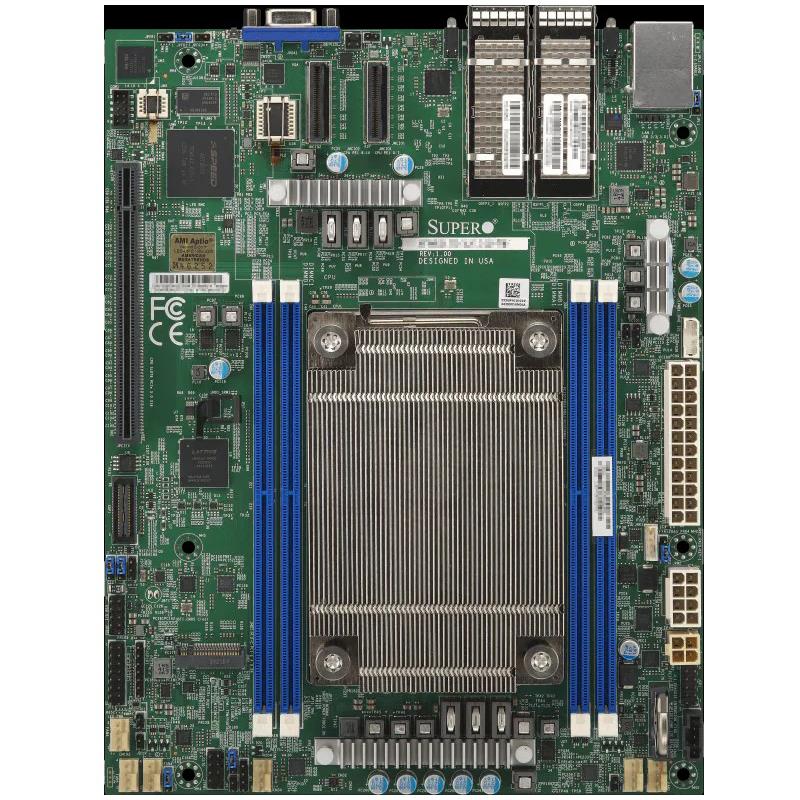

| Device Type | Motherboard |
| Form Factor | Narrow Micro-ATX |
| Dimensions (WxDxH) | 7.5" x 9.6" (19.05cm x 24.4cm) |
| Processor |
| Embedded Processor | Intel Xeon 6 SoC 6546P-B, CPU TDP 195W, Intel Quick Assist Technology, Intel vRAN Accelerator |
| Cache/Cores | Up to 32 cores |
| System Memory |
| Memory Capacity | 4 DIMM slots, Up to 512GB ECC Registered RDIMM, DDR5-6400MT/s |
| Memory Type | 4800/5600/6400 MT/s ECC DDR5 RDIMM Up to 512GB of memory with speeds of up to 6400 MT/s(1DPC) |
| DIMM Sizes | 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB |
| RDIMM: 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Single LAN with 1GbE with Intel I210 |
| Dual LAN with 100G QSFP28 LAN via SoC |
| Input / Output |
| Serial Port / Headers | 1 COM |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16, 2 PCIe 5.0 x8 MCIO connector |
| M.2 | Key: M-key |
| Form Factor: 2280 |
| M.2 Interface: 1 PCIe 4.0 |
| System BIOS |
| BIOS Type | AMI 64MB UEFI |
| BIOS Features | SMBIOS 3.7 |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V |
| LED | UID/remote UID LED, CPU/system overheat LED |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI |
| FAN | 6x 4-pin fan headers (up to 6 fans), Fan speed control |
| Other Features | WOL, UID, Control of power-on for recovery from AC power loss, ACPI power management |
| Environmental |
| Operating Environment | Operating Temperature Range: 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range: -10°C - 70°C (14°F - 158°F) |
| Operating Relative Humidity Range: 8% - 95% (non-condensing) |
| Non Operating Relative Humidity Range: 8% - 95% (non-condensing) |
| Parts List |
| I/O Shield | 1x MCP-260-00204-0N |
| I/O Cables | 1x CBL-CDAT-0605 |
| QRG | MNL-2757-QRG |
