| Add-on Card |

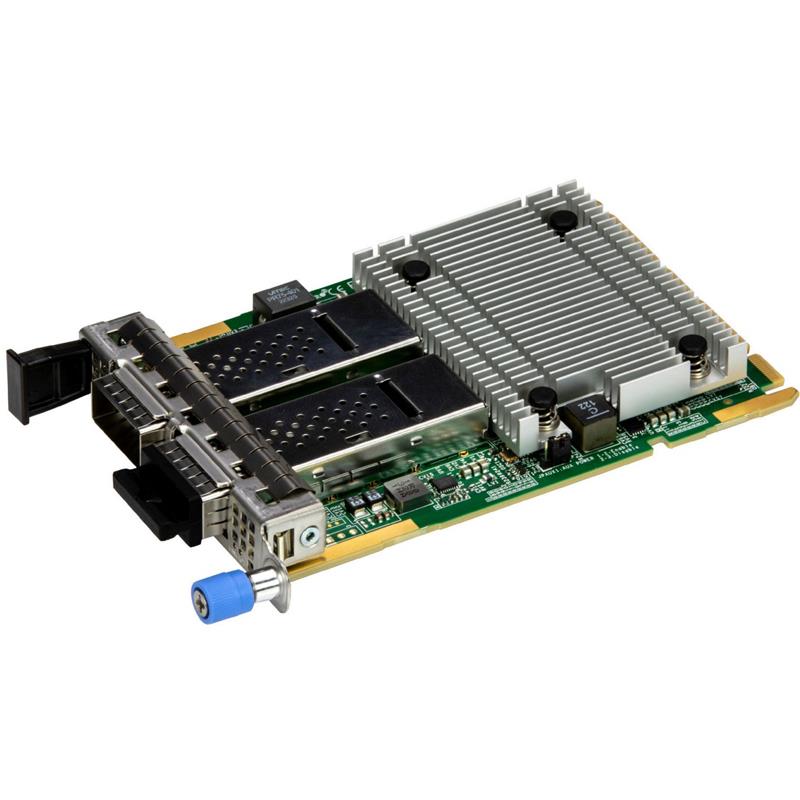

| Add-on Card | Supermicro® Advanced I/O Modules (AIOM) are the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The is using the shared hardware design of by enabling the firmware setup to provide single port 200Gbps output in port1 while the port2 is disabled. Based on the Broadcom® BCM57508 with features such as VXLAN, NVGRE, RoCE, and NIC Partitioning, it provides unparalleled density, performance, and functionality. The Supermicro® AOC-A200G-B1CM is the most versatile 200GbE controller in the market and an excellent choice to enhance network connectivity in Data Centers and Enterprise environments. To order, contact your distributor. This product is only available through Supermicro. |
| Compliance |
| RoHS | RoHS compliant 6/6 |
| Downloads |
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-A200G-B1CM.pdf ] |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-A200G-B1CM.pdf ] |
| Specifications |
| Networking Features | Configurable Flow Acceleration |
| Jumbo frames (up to 9.6 KB) |
| IEEE 802.3x flow control |
| IEEE 802.3ad Link Aggregation |
| Virtual LANs- 802.1q VLAN tagging |
| UEFI and iSCSI boot |
| Stateless Offload Features | Large Send Offload |
| Receive Segment Coalescing |
| Large Receive Offload |
| Receive Side Scaling (RSS) |
| Transmit Side Scaling (TSS) |
| TCP, UDP and IP checksum offloads |
| IPv4 and IPv6 offloads |
| TCP Segmentation Offload |
| Virtualization Features | NetQueue, VMQueue, and Multiqueue |
| Edge Virtual Bridging (EVB) |
| SR-IOV with up to 128 Virtual Functions (VFs) |
| VXLAN, NVGRE, and Geneve |
| RDM over Converged Ethenet (RoCE) | RoCEv1 and RoCEv2 |
| Data Center Bridging with RoCE |
| Flow Processing | Exact/Wildcard Match Flow Lookup |
| VLAN insertion/deletion |
| NAT/NAPT/Mirroring |
| Data Center Bridging | Priority-based flow control (PFC; IEEE 802.1Qbb) |
| 8 traffic classes per port; fully DCB compliant per 802.1Qbb |
| Enhanced transmission selection (ETS; IEEE 802.1Qau) |
| Quantized Congestion Notification (QCN; IEEE 802.1Qau) |
| Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz) |
| Power Savings | ACPI compliant power management |
| PCI Express Active State Power Management (ASPM) |
| Ultra-low-power mode |
| Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010) |
| Power Consumption | Maximum 20W |
| Storage Conditions | Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Storage humidity: 90% non-condensing relative humidity at 35°C |
| Physical Dimensions | Advanced I/O Module (AIOM) Form Factor |
| Card PCB dimensions: 76mm x 115mm (W x D) |
