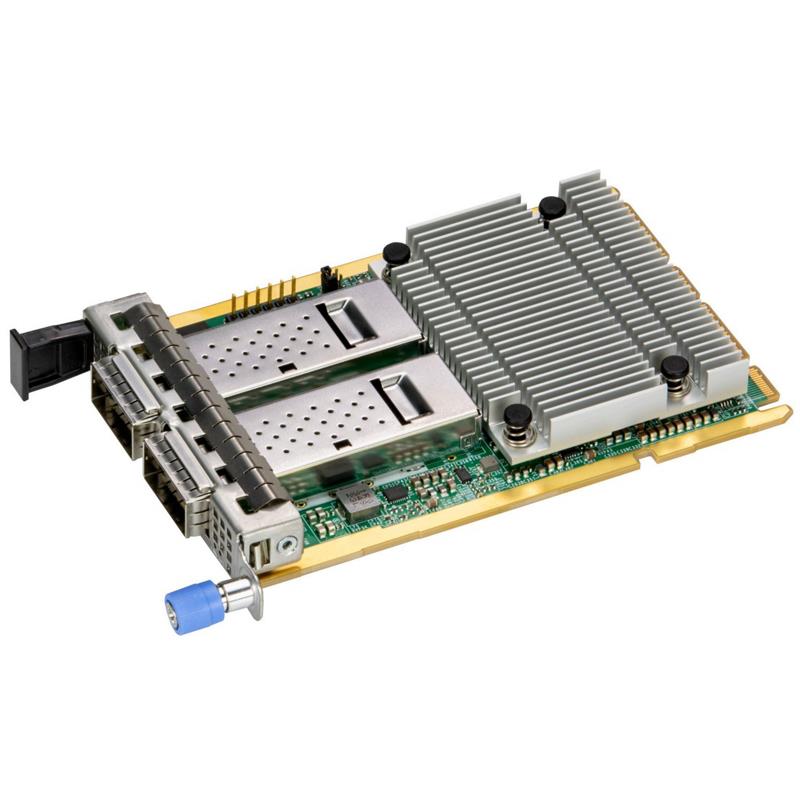

Supermicro AOC-A200G-B2CM 200Gb Ethernet Controller Card Advanced I/O Module (AIOM) Form Factor Dual QSFP112 Connector Powered By Broadcom BCM57608 Controller PCIe 5.0 x16

Supermicro AOC-A200G-B2CM 200Gb Ethernet Controller Card Advanced I/O Module (AIOM) Form Factor Dual QSFP112 Connector Powered By Broadcom BCM57608 Controller PCIe 5.0 x16

  • Broadcom BCM57608 2x200GbE controller

  • PCIe Gen 5.0 x16, Dual QSFP112 connector

  • Asset Management Features with thermal sensor

  • NC-SI for Remote Management (Not supported in Standby by default)

This Advanced I/O Module (AIOM) Network Interface Card Designed To Deliver High-Performance 200GbE Connectivity. Based On The Broadcom BCM57608 With Features Such As VXLAN, NVGRE, RoCE. It Provides Dual QSFP112 Ports, With A PCIe 5.0 x16 Interface. Ideal For Data Centers And Enterprise Environments Requiring High-Density Networking Solutions - (AOC-A200G-B2CM)

$ 1,102.00$ 1,102.001102.0USD

$ 1,102.00

Option not available

PreOrder
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. Broadcom BCM57608 2x200GbE controller

    2. PCIe Gen 5.0 x16

    3. Dual QSFP112 connectors

    4. Supports 200/100/50/25/10GbE

    5. RDMA over Converged Ethernet (RoCEv2)

    6. VXLAN, NVGRE, and Geneve support

    7. NIC Partitioning (NPAR)

    8. Broadcom TruFlow flow processing engine

    9. Asset management with thermal sensor

    10. NC-SI for remote management (not supported in standby by default)

    11. RoHS compliant 6/6

    Extra Specifications for Supermicro AOC-A200G-B2CM 200Gb Ethernet Controller Card Advanced I/O Module (AIOM) Form Factor Dual QSFP112 Connector Powered By Broadcom BCM57608 Controller PCIe 5.0 x16

    Main Specifications
    Device TypeEthernet Controller Card
    Form FactorAdvanced I/O Module (AIOM)
    InterfacePCIe Gen 5.0 x16
    Dimensions (WxDxH)Card PCB dimensions: 76mm (2.99inch) x 115mm (4.52inch) (W x D)
    Connectivity
    ConnectorsDual QSFP112 connector
    Support for 200/100/50/25/10GbE
    Security Features
    Security FeaturesHW Secure Boot (RoT), Attestation (SPDM)
    Software Features
    Manageability FeaturesNetwork Controller Sideband Interface/ NC-SI (Not supported in Standby by default)
    Platform Level Data Model (PLDM) for Monitoring and FW Update
    Networking
    Stateless Offload FeaturesTCP, UDP and IP checksum offloads, IPv4 and IPv6 offloads, Receive Segment Coalescing, TCP Segmentation Offload, Large Receive Offload (LRO), Large Send Offload (LSO), Receive Side Scaling (RSS), Transmit Side Scaling (TSS)
    NIC Partitioning16 Physical Functions, QoS per partition, Partitioning control via sideband communication, Up to 64 MAC/VLAN filter per partition, Per partition statistics support, Stateless offloads configuration per partition, VEB/VEPA support
    Virtualization FeaturesNetQueue, VMQueue, and Multi-queue, SR-IOV with up to 128 Virtual Functions (VFs), VXLAN, NVGRE, GRE, Geneve and IP-in-IP, Edge Virtual Bridging (EVB)
    Data Center BridgingPriority-based flow control (PFC; IEEE 802.1Qbb), Enhanced transmission selection (ETS; IEEE 802.1Qau), Quantized congestion Notification (QCN; IEEE 802.1Qau), Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz), 8 traffic classes per port; fully DCB compliant per 802.1Qbb
    Specification
    RDMA over Converged Ethernet (RoCE)RoCEv1 and RoCEv2, Data Center Bridging with RoCE
    Power
    Power SavingsACPI compliant power management, Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010)
    Power Consumption19W
    Environmental
    Operating EnvironmentStorage temperature: -40°C to 70°C (-40°F to 158°F)
    Storage humidity: 90% non-condensing relative humidity at 35°C
    Miscellaneous
    Environmental ComplianceRoHS Compliant 6/6

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
