  2. Samsung HDS-2AT-MZILS7T6HMLS007 Hard Drive 7.68TB SSD SAS 12Gb/s 2.5-inch 15mm 3D V-NAND TLC 1DWPD SED PM1633A Series

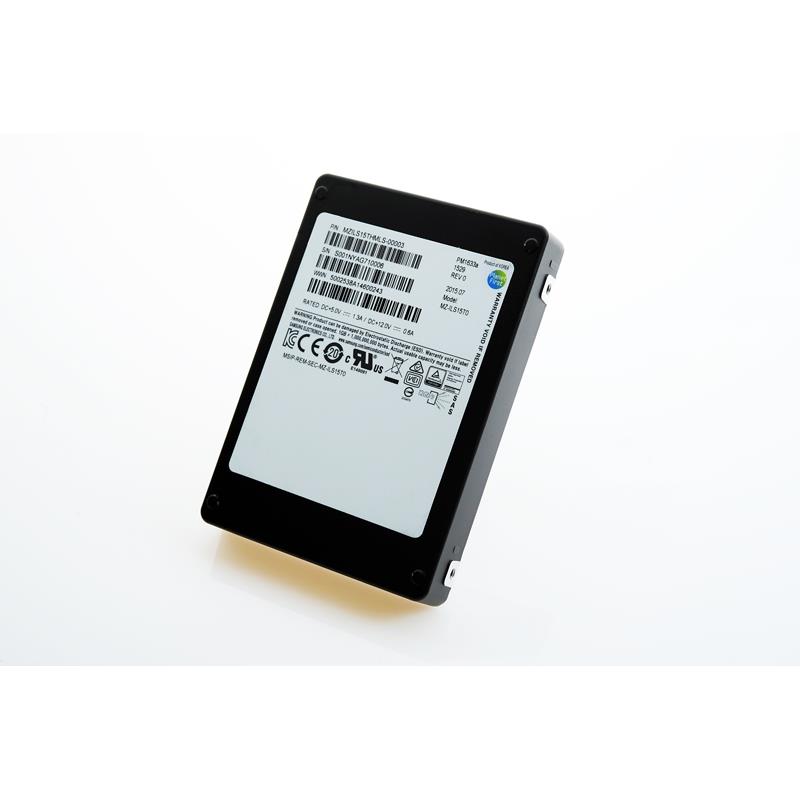

Samsung HDS-2AT-MZILS7T6HMLS007 Hard Drive 7.68TB SSD SAS 12Gb/s 2.5-inch 15mm 3D V-NAND TLC 1DWPD SED PM1633A Series

Samsung HDS-2AT-MZILS7T6HMLS007 Hard Drive 7.68TB SSD SAS 12Gb/s 2.5-inch 15mm 3D V-NAND TLC 1DWPD SED PM1633A Series

  • Samsung’s V-NAND (3D) TLC flash memory

  • Massive 7.68TB capacity in a 2.5″ form factor

  • Optimized for enterprise use in high-density deployments

  • SAS3 12Gb/s interface ensuring high throughput and compatibility

The Hard Drive Features 7.68TB Storage Capacity. Solid State Drive (SSD). SAS 12Gb/s Designed In 2.5-inch Form Factor Thickness of 15mm. 3D V-NAND TLC Flash NAND Technology, With a Durability Rating Of 1.0DWPD. Optimized For Enterprise Environments. Features: Self-Encrypting Drives (SED) / AES 256-bit. PM1633A Series - OEM

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    • Up to 7.68TB in a compact 2.5" form factor

    • SAS 12 Gb/s interface with dual-port enterprise availability

    • 1 DWPD endurance rating (5-year warranty)

    • 2M-hour MTBF and UBER < 10⁻¹⁷ for high reliability

    • 2.5", 15 mm height design

    • Powered by Samsung V-NAND (3D TLC) plus Samsung’s own controller & firmware

    Extra Specifications for Samsung HDS-2AT-MZILS7T6HMLS007 Hard Drive 7.68TB SSD SAS 12Gb/s 2.5-inch 15mm 3D V-NAND TLC 1DWPD SED PM1633A Series

    Main Specifications
    Device TypeSolid state drive - internal
    Capacity7.68TB
    Form Factor2.5 in, 15mm
    InterfaceSAS 3.0 @ 12 Gb/s
    NAND Flash Memory TypeSamsung V-NAND TLC (triple-level cell)
    Dimensions (WxDxH)70 x 100 x 15 mm
    Weight140 grams
    Performance
    ReadUp to 1,250 MB/s
    WriteUp to 1,250 MB/s
    4KB Random ReadUp to 200,000 IOPS
    4KB Random WriteUp to 35,000 IOPS
    Endurance DWPD1DWPD
    Power
    Power Consumption (Active)11 W
    Power Consumption (Idle)4.5 W
    Miscellaneous
    MTBF2.0 M hours

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:SOLIDIGM
    Type of Support:FULL
    Phone No.:833-313-7337
    URL:Click here for Manufacturer Website
