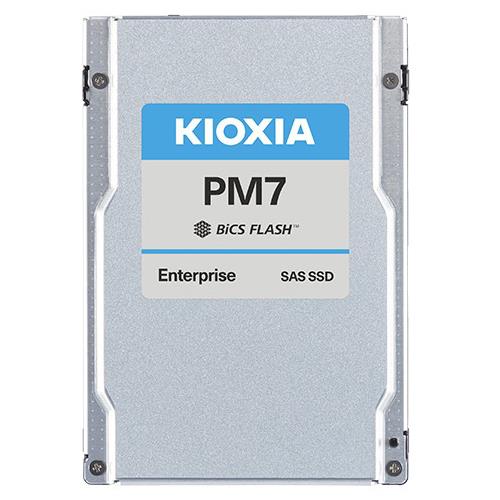

  2. Kioxia HDS-T2A-KPM7XVUG1T60 Hard Drive 1.60TB SSD SAS 24Gb/s 2.5-inch 15mm BiCS FLASH TLC 3DWPD SIE PM7-V Series
Kioxia HDS-T2A-KPM7XVUG1T60 Hard Drive 1.60TB SSD SAS 24Gb/s 2.5-inch 15mm BiCS FLASH TLC 3DWPD SIE PM7-V Series

Kioxia HDS-T2A-KPM7XVUG1T60 Hard Drive 1.60TB SSD SAS 24Gb/s 2.5-inch 15mm BiCS FLASH TLC 3DWPD SIE PM7-V Series

  • 3 DWPD with 100 % Random Write Workload

  • 24G SAS interface with single/dual-port support

  • Power Loss Protection and End-to-End Data Protection

  • Optimized for mixed-use and read-intensive environments

The Hard Drive Features 1.60TB Storage Capacity. Solid-State Drive (SSD). Built With SAS 24Gb/s Interface, Designed in 2.5-inch Form Factor Thickness of 15mm. BiCS FLASH TLC Technology, With a Durability Rating Of 3.0DWPD. Optimized For Mixed Use Applications, Including Relational Database, Streaming Media, Data Warehousing, And Web Services. Features Sanitize Instant Erase (SIE) Capability. Kioxia PM7-V Series - OEM

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    Enterprise SAS Mixed Use SSD


    KIOXIA PM7-V Series 24G SAS Enterprise SSD is optimized for mixed-use applications, including relational database, streaming media, data warehousing and web services. The series is designed to deliver balanced levels of performance, reliability, capacity and endurance for mixed use and read intensive environments. Featuring KIOXIA 112-layer BiCS FLASH 3D flash memory, this 7th generation enterprise SAS SSD PM7-V offers 3 DWPD (Drive Writes Per Day)


    Key Features


    • 24G SAS interface with single/dual-port support

    • Capacities from 1.6 TB to 12.8 TB

    • Up to 720K random read IOPS (4 KiB) in dual-port mode

    • 2.5-inch form factor, 15 mm thickness

    • 3 DWPD with 100 % Random Write Workload

    • Power Loss Protection and End-to-End Data Protection, including T10 DIF


    Key Applications


    • Web servers

    • Data warehousing

    • Streaming media

    Extra Specifications for Kioxia HDS-T2A-KPM7XVUG1T60 Hard Drive 1.60TB SSD SAS 24Gb/s 2.5-inch 15mm BiCS FLASH TLC 3DWPD SIE PM7-V Series

    Main Specifications
    Device TypeSolid State Drive - Internal - SIE Model
    Capacity1.60 TB
    Form Factor2.5-inch, 15mm thickness
    Interface24G SAS
    Interface Speed22.5 Gbit/s , 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s, 1.5 Gbit/s
    NAND Flash Memory TypeBiCS FLASH TLC
    Dimensions (WxDxH)Height 15.0 mm + 0, - 0.5 mm x Width 69.85 0.25 mm x Length 100.45 mm Max.
    Weight130 g Max.
    Performance
    Internal Data Rate4,200 MB/s (Read) / 3,400 MB/s (Write
    4KB Random Read720K IOPS
    4KB Random Write320K IOPS
    Power
    Supply Voltage12 V ± 10 %, 5 V +10 % / -7 %
    Power Consumption (Ready)5 W typ.
    Miscellaneous
    MTBF2,500,000 hours
    Package TypeOEM
    Environmental
    Operating EnvironmentTemperature (Operating): 0 °C to 70 °C
    Humidity (Operating): 5 % to 95 % R.H.
    Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
    Shock (Operating): 9.8 km/s2 { 1,000 G } ( 0.5 ms )
    Temperature (Non-operating): -40 °C to 80

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
