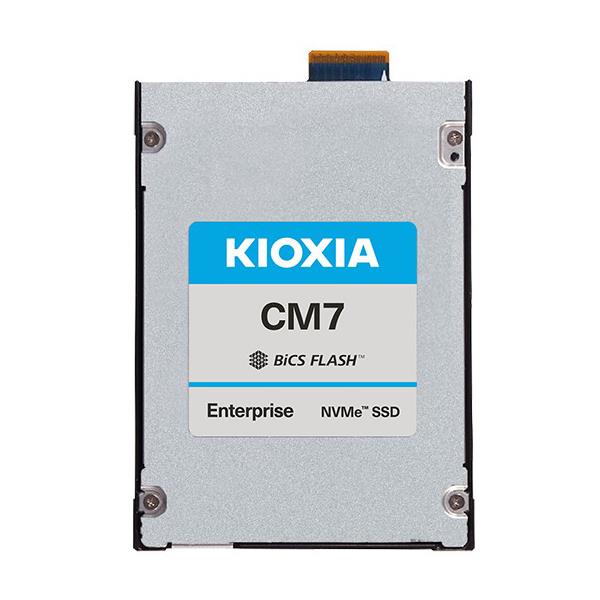

  2. Kioxia HDS-T3N-KCM7XRJE15T3 15.3TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 E3.S 7.5mm BiCS FLASH TLC 1DWPD SIE CM7-R Series
Kioxia HDS-T3N-KCM7XRJE15T3 15.3TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 E3.S 7.5mm BiCS FLASH TLC 1DWPD SIE CM7-R Series

Kioxia HDS-T3N-KCM7XRJE15T3 15.3TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 E3.S 7.5mm BiCS FLASH TLC 1DWPD SIE CM7-R Series

  • PCIe 5.0, NVMe 2.0 specification compliant

  • Dual-port design for high-availability applications

  • High performance with lower power consumption

  • Business intelligence, Data warehousing Applications

The NVMe Solid-State Drive Features 15.3TB Storage Capacity. Built With PCIe Generation 5.0 x4, NVMe 2.0 Interface, Designed in E3.S Form Factor Thickness of 7.5mm. BiCS FLASH TLC Technology, With a Durability Rating Of 1.0DWPD. Optimized For Data Center Class Workloads. Features: Sanitize Instant Erase (SIE). Kioxia CM7-R Series - OEM

$ 1.00$ 1.001.0USD

$ 1.00

Option not available

PreOrder
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    • PCIe 5.0, NVMe 2.0 specification compliant

    • Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)

    • Form factor: E3.S, 7.5 mm thickness

    • Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH 3D TLC

    • Dual-port design for high availability applications

    • High performance with lower power consumption

    • Power loss protection (PLP) and end-to-end data protection

    • Suited for 24x7 enterprise workloads

    Extra Specifications for Kioxia HDS-T3N-KCM7XRJE15T3 15.3TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 E3.S 7.5mm BiCS FLASH TLC 1DWPD SIE CM7-R Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity15.3TB
    InterfacePCIe 5.0, NVMe 2.0
    Form FactorE3.S 7.5mm
    NAND Flash Memory TypeBiCS FLASH TLC
    Weight110 g Max
    Performance
    Internal Data Rate13,000 MB/s (Read) / 5,300 MB/s (Write)
    4KB Random Read2,000K IOPS
    4KB Random Write260K IOPS
    Endurance DWPD1DWPD
    Power
    Supply Voltage12 V ± 10 %, 3.3 V ± 15 %
    Power Consumption (Active)25 W typ.
    Power Consumption (Ready)5 W typ.
    Miscellaneous
    MTBF2,500,000 hours
    Environmental
    Operating EnvironmentHumidity (Operating): 5 % to 95 % R.H.
    Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
    Temperature (Non-operating): -40 °C to 85 °C
    Shock (Operating): 9.8 km/s2 { 1,000 G } ( 0.5 ms )
    Temperature (Operating): 0 °C to 73 °C

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
