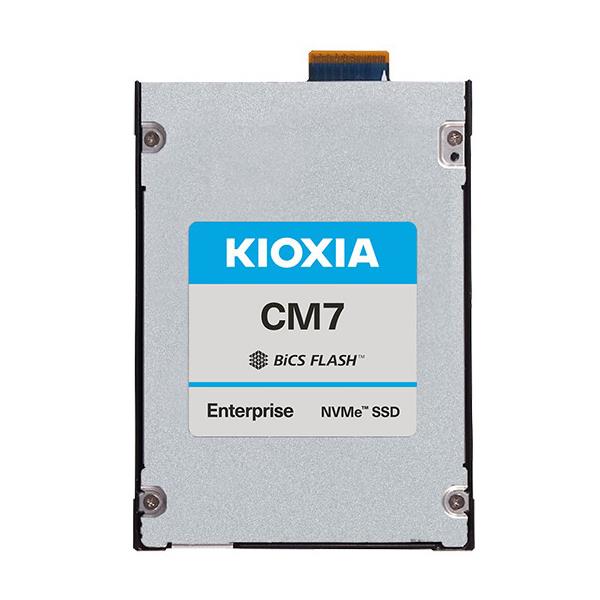

  2. Kioxia HDS-T3N-KCM7XRJE15T3 Hard Drive 15.3TB NVMe PCIe x4 Lanes Generation 5.0 E3.S 7.5mm BiCS FLASH TLC 1DWPD SIE CM7-R Series
Kioxia HDS-T3N-KCM7XRJE15T3 Hard Drive 15.3TB NVMe PCIe x4 Lanes Generation 5.0 E3.S 7.5mm BiCS FLASH TLC 1DWPD SIE CM7-R Series

Kioxia HDS-T3N-KCM7XRJE15T3 Hard Drive 15.3TB NVMe PCIe x4 Lanes Generation 5.0 E3.S 7.5mm BiCS FLASH TLC 1DWPD SIE CM7-R Series

  • PCIe 5.0, NVMe 2.0 specification compliant

  • Dual-port design for high-availability applications

  • High performance with lower power consumption

  • Business intelligence, Data warehousing Applications

The Hard Drive Features 15.3TB Storage Capacity. NVMe Solid State Drive (SSD). Built With PCIe Generation 5.0 x4, NVMe 2.0 Interface, Designed in E3.S Form Factor Thickness of 7.5mm. BiCS FLASH TLC Technology, With a Durability Rating Of 1.0DWPD. Optimized For Data Center Class Workloads. Features: Sanitize Instant Erase (SIE). Kioxia CM7-R Series - OEM

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    • PCIe 5.0, NVMe 2.0 specification compliant

    • Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)

    • Form factor: E3.S, 7.5 mm thickness

    • Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH 3D TLC

    • Dual-port design for high availability applications

    • High performance with lower power consumption

    • Power loss protection (PLP) and end-to-end data protection

    • Suited for 24x7 enterprise workloads

    Extra Specifications for Kioxia HDS-T3N-KCM7XRJE15T3 Hard Drive 15.3TB NVMe PCIe x4 Lanes Generation 5.0 E3.S 7.5mm BiCS FLASH TLC 1DWPD SIE CM7-R Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity15.3TB
    InterfacePCIe 5.0, NVMe 2.0
    Form FactorE3.S 7.5mm
    NAND Flash Memory TypeBiCS FLASH TLC
    Weight110 g Max
    Performance
    Internal Data Rate13,000 MB/s (Read) / 5,300 MB/s (Write)
    4KB Random Read2,000K IOPS
    4KB Random Write260K IOPS
    Endurance DWPD1DWPD
    Power
    Supply Voltage12 V ± 10 %, 3.3 V ± 15 %
    Power Consumption (Active)25 W typ.
    Power Consumption (Ready)5 W typ.
    Miscellaneous
    MTBF2,500,000 hours
    Environmental
    Operating EnvironmentHumidity (Operating): 5 % to 95 % R.H.
    Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
    Temperature (Non-operating): -40 °C to 85 °C
    Shock (Operating): 9.8 km/s2 { 1,000 G } ( 0.5 ms )
    Temperature (Operating): 0 °C to 73 °C

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:SOLIDIGM
    Type of Support:FULL
    Phone No.:833-313-7337
    URL:Click here for Manufacturer Website
