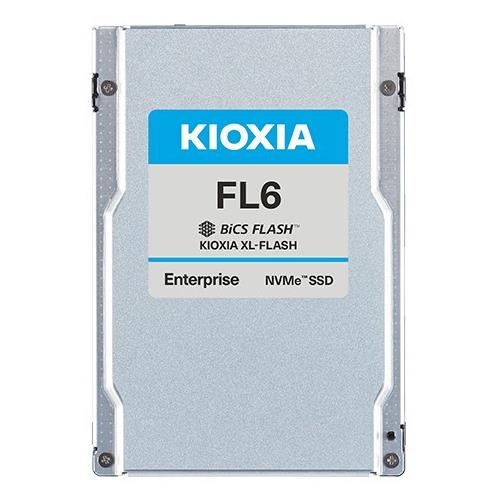

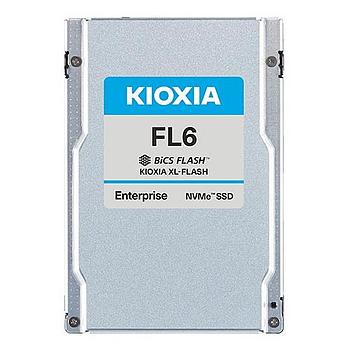

  2. Kioxia HDS-TUN0-KFL6XHUL1T60 Hard Drive 1.6TB NVMe PCIe x4 Lanes Generation 4.0 2.5-inch 15mm XL-FLASH 60DWPD SIE Dual-port FL6 Series
Kioxia HDS-TUN0-KFL6XHUL1T60 Hard Drive 1.6TB NVMe PCIe x4 Lanes Generation 4.0 2.5-inch 15mm XL-FLASH 60DWPD SIE Dual-port FL6 Series

Kioxia HDS-TUN0-KFL6XHUL1T60 Hard Drive 1.6TB NVMe PCIe x4 Lanes Generation 4.0 2.5-inch 15mm XL-FLASH 60DWPD SIE Dual-port FL6 Series

  • PCIe 4.0, NVMe 1.4 specification compliant

  • Dual-port design for high availability applications

  • Massive 1.6TB capacities with 60 DWPD endurance

  • KIOXIA XL-FLASH is 96-layer BiCS FLASH 3D flash memory

The Hard Drive Features 1.6TB Storage Capacity. NVMe Solid State Drive (SSD). Built With NVMe 1.4 / 64 GT/s (PCIe Gen4 Single x4, Dual x2) Interface, Designed in 2.5-inch Form Factor Thickness of 15mm. KIOXIA XL-FLASH Is 96-Layer BiCS FLASH 3D Flash Memory And 1-Bit/Cell SLC Technology For High-Speed Reads And Writes Technology, With a Durability Rating Of 60DWPD. It Is Ideal For Enterprise And Hyperscale Data Center Applications, Such As Server Caching, Write Logging, And Read/Write Caching In Tiered Storage Environments. Features: Sanitize Instant Erase (SIE). Dual-port Design. Kioxia FL6 Series - OEM

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    • PCIe 4.0 and NVMe 1.4 compliant

    • Endurance up to 60 DWPD with capacities from 800 GB to 3.2 TB

    • 2.5-inch form factor with 15mm Z-height

    • KIOXIA XL-FLASH using 96-layer BiCS FLASH 3D memory with 1-bit SLC design for ultra-fast reads and writes

    • SFF-TA-1001 U.3 compatible

    • Dual-port architecture supporting high-availability environments

    • Fast response times with 29 μs read latency and 8 μs write latency

    • Sixth-generation flash die failure recovery with double parity protection

    • Power loss protection with end-to-end data safeguarding

    • Engineered for continuous 24x7 enterprise workloads

    Extra Specifications for Kioxia HDS-TUN0-KFL6XHUL1T60 Hard Drive 1.6TB NVMe PCIe x4 Lanes Generation 4.0 2.5-inch 15mm XL-FLASH 60DWPD SIE Dual-port FL6 Series

    Main Specifications
    Device TypeSolid State Drive - Internal - SIE Model
    Capacity1.6TB
    Form Factor2.5-inch, 15mm thickness
    InterfacePCIe 4.0, NVMe 1.4
    Maximum Interface Speed64 GT/s (PCIe Gen4 single x4, dual x2)
    NAND Flash Memory TypeXL-FLASH
    Dimensions (WxDxH)1 in x 3 in x 4 in
    Weight0.3 lbs
    Performance
    Read6200 MB/s
    Write6200 MB/s
    4KB Random Read1,480K IOPS
    4KB Random Write380K IOPS
    Power
    Supply Voltage12 V ± 10 %, 3.3 V ± 15 %
    Power Consumption (Active)16 W typ.
    Power Consumption (Ready)5 W typ.
    Environmental
    Operating EnvironmentHumidity (Operating): 5 % to 95 % R.H.
    Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
    Shock (Operating): 9.8 km/s2 { 1,000 G } ( 0.5 ms )
    Temperature (Operating): 0 ℃ to 70 ℃
    Temperature (Non-operating): -40 ℃ to 80 ℃

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:SOLIDIGM
    Type of Support:FULL
    Phone No.:833-313-7337
    URL:Click here for Manufacturer Website
