  2. Kioxia HDS-TUN-KCD8XPUG6T40 Hard Drive 6.40TB NVMe PCIe x4 Lanes Generation 5.0 2.5-inch 15mm BiCS FLASH TLC 3DWPD SIE Single-port CD8P-V Series

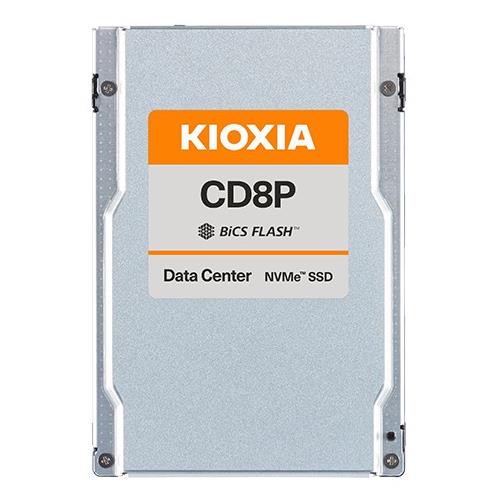

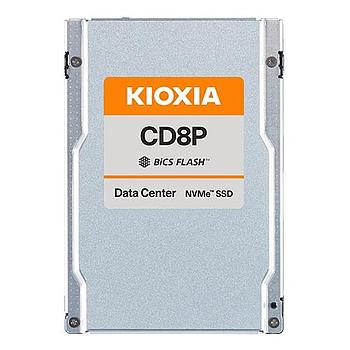

Kioxia HDS-TUN-KCD8XPUG6T40 Hard Drive 6.40TB NVMe PCIe x4 Lanes Generation 5.0 2.5-inch 15mm BiCS FLASH TLC 3DWPD SIE Single-port CD8P-V Series

Kioxia HDS-TUN-KCD8XPUG6T40 Hard Drive 6.40TB NVMe PCIe x4 Lanes Generation 5.0 2.5-inch 15mm BiCS FLASH TLC 3DWPD SIE Single-port CD8P-V Series

  • Reliable, consistent performance for 24/7 operations

  • Power loss protection (PLP) + end-to-end data correction

  • Single-port architecture optimized for data center workloads

  • Massive 6.40TB capacity, Ideal for high-density deployments

The Hard Drive Features 6.40TB Storage Capacity. NVMe Solid State Drive (SSD). Built With NVMe 2.0 / 128 GT/s (PCIe Gen5 x4) Interface, Designed in 2.5-inch Form Factor Thickness of 15mm. Proprietary KIOXIA Architecture: Controller, Firmware, And BiCS FLASH Generation 5 TLC Flash Memory. With a Durability Rating Of 3.0DWPD. Single-Port Design, Optimized For Data Center Class Workloads. Features: Sanitize Instant Erase (SIE). Kioxia CD8P-V Series - OEM

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    • PCIe 5.0, NVMe 2.0 specification compliant

    • Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)

    • Form factor: 2.5-inch, 15 mm thickness

    • Proprietary KIOXIA architecture: controller, firmware, and BiCS FLASH generation 5 TLC flash memory

    • Single-port design, optimized for data center class workloads

    • Consistent performance and reliability for demanding 24x7 environments

    • Designed for high-density storage deployments

    • Power loss protection (PLP) and end-to-end data correction

    • Security options: SIE


    Key Applications


    • Hyperscale

    • IoT and big data analytics

    • Online transaction processing (OLTP)

    • (transactional and relational databases)

    • Virtualized environments

    • Streaming media and content delivery networks

    Extra Specifications for Kioxia HDS-TUN-KCD8XPUG6T40 Hard Drive 6.40TB NVMe PCIe x4 Lanes Generation 5.0 2.5-inch 15mm BiCS FLASH TLC 3DWPD SIE Single-port CD8P-V Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity6.4TB
    InterfacePCIe 5.0, NVMe 2.0
    Maximum Interface Speed128 GT/s (PCIe Gen5 x4)
    NAND Flash Memory TypeBiCS FLASH TLC
    Dimensions (WxDxH)0.6 in × 2.8 in × 4.0 in
    Weight0.3 lbs
    Performance
    Read12,000 MB/s
    Write5,500 MB/s
    4KB Random Read2,000K IOPS
    4KB Random Write400K IOPS
    Endurance DWPD3DWPD
    Power
    Supply Voltage12 V ± 10 %, 3.3 V ± 15 %
    Power Consumption (Active)21 W typ.
    Power Consumption (Ready)5 W typ.
    Miscellaneous
    MTBF2,500,000 hours
    Environmental
    Operating EnvironmentHumidity (Operating): 5 % to 95 % R.H.
    Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
    Temperature (Non-operating): -40 °C to 85 °C
    Shock (Operating): 9.8 km/s2 { 1,000 G } ( 0.5 ms )
    Temperature (Operating): 0 °C to 73 °C

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:SOLIDIGM
    Type of Support:FULL
    Phone No.:833-313-7337
    URL:Click here for Manufacturer Website
