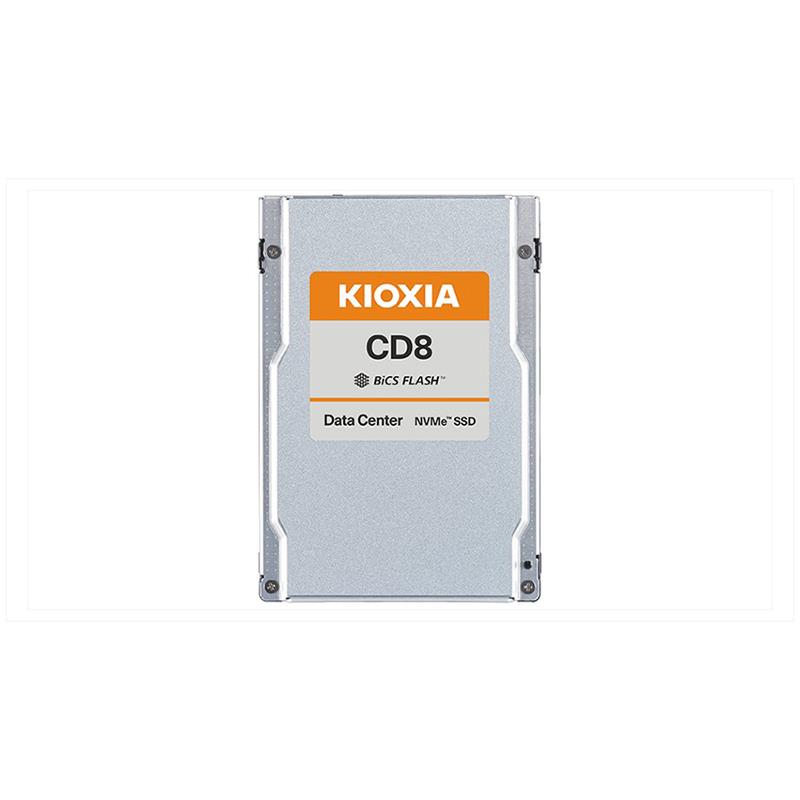

  2. Kioxia HDS-TUN-KCD8XRUG3T84 3.84TB NVMe Solid-State Drive PCIe x4 Lanes Generation 4.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SIE Single-port CD8-R Series
Kioxia HDS-TUN-KCD8XRUG3T84 3.84TB NVMe Solid-State Drive PCIe x4 Lanes Generation 4.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SIE Single-port CD8-R Series

Kioxia HDS-TUN-KCD8XRUG3T84 3.84TB NVMe Solid-State Drive PCIe x4 Lanes Generation 4.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SIE Single-port CD8-R Series

  • 2.5-inch form factor, 15mm thickness

  • PCIe 4.0, NVMe 1.4 specification compliant

  • Single-port design optimized for data-center workloads

  • Consistent performance and reliability for 24x7 operation

The NVMe Solid-State Drive Features 3.84TB Storage Capacity. Built With PCIe 4.0, NVMe 1.4 Interface, Max Interface Speed 64 GT/s (PCIe Gen4 x4). Designed in 2.5-inch Form Factor Thickness of 15mm. Proprietary KIOXIA Architecture: Controller, Firmware, And 112-Layer BiCS FLASH 3D TLC Technology. With a Durability Rating Of 1.0DWPD. Single-Port Design, Optimized For Data Center Class Workloads. Features: Sanitize Instant Erase (SIE). Kioxia CD8-R Series - OEM

$ 1.00$ 1.001.0USD

$ 1.00

Option not available

InStock
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    • PCIe 4.0, NVMe 1.4 specification compliant

    • Open Compute Project Datacenter NVMe SSD specification v2.0 support

    • 2.5-inch form factor, 15mm thickness

    • KIOXIA proprietary architecture with controller, firmware, and 112-layer BiCS FLASH 3D TLC

    • Single-port design optimized for data-center workloads

    • Consistent performance and reliability for 24x7 operation

    • Designed for high-density storage deployments

    • Power loss protection and end-to-end data correction

    • Security option: SIE

    Extra Specifications for Kioxia HDS-TUN-KCD8XRUG3T84 3.84TB NVMe Solid-State Drive PCIe x4 Lanes Generation 4.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SIE Single-port CD8-R Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity3.84TB
    Form Factor2.5-inch, 15mm thickness
    InterfacePCIe 4.0, NVMe 1.4
    Maximum Interface Speed64 GT/s (PCIe Gen4 x4)
    NAND Flash Memory TypeBiCS FLASH TLC
    Dimensions (WxDxH)Height: 0.6 x Width: 2.8 x Depth: 4 in
    Weight0.3 lbs
    Performance
    Read7200 MB/s
    Write3800 MB/s
    4KB Random Read125000 IOPS
    4KB Random Write195K IOPS
    Endurance DWPD1DWPD
    Power
    Power Consumption (Active)14W
    Power Consumption (Ready)5 W typ.
    Miscellaneous
    MTBF2.5M hours
    Environmental
    Operating EnvironmentHumidity (Operating): 5 % to 95 % R.H.
    Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
    Shock (Operating): 9.8 km/s2 { 1,000 G } ( 0.5 ms )
    Temperature (Operating): 0 ℃ to 75 ℃
    Temperature (Non-operating): -40 ℃ to 85 ℃

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
