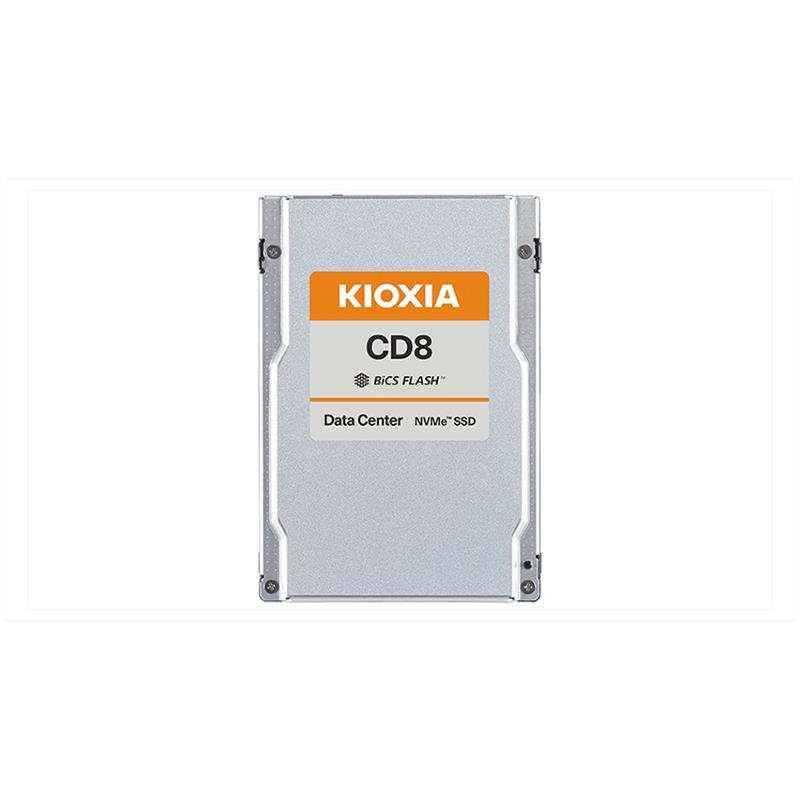

  2. Kioxia HDS-TUN-KCD8XRUG3T84 Hard Drive 3.84TB NVMe PCIe x4 Lanes Generation 4.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SIE Single-port CD8-R Series
Kioxia HDS-TUN-KCD8XRUG3T84 Hard Drive 3.84TB NVMe PCIe x4 Lanes Generation 4.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SIE Single-port CD8-R Series

Kioxia HDS-TUN-KCD8XRUG3T84 Hard Drive 3.84TB NVMe PCIe x4 Lanes Generation 4.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SIE Single-port CD8-R Series

  • 2.5-inch form factor, 15mm thickness

  • PCIe 4.0, NVMe 1.4 specification compliant

  • Single-port design optimized for data-center workloads

  • Consistent performance and reliability for 24x7 operation

The Hard Drive Features 3.84TB Storage Capacity. NVMe Solid State Drive (SSD). Built With PCIe 4.0, NVMe 1.4 Interface, Max Interface Speed 64 GT/s (PCIe Gen4 x4). Designed in 2.5-inch Form Factor Thickness of 15mm. Proprietary KIOXIA Architecture: Controller, Firmware, And 112-Layer BiCS FLASH 3D TLC Technology. With a Durability Rating Of 1.0DWPD. Single-Port Design, Optimized For Data Center Class Workloads. Features: Sanitize Instant Erase (SIE). Kioxia CD8-R Series - OEM

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    • PCIe 4.0, NVMe 1.4 specification compliant

    • Open Compute Project Datacenter NVMe SSD specification v2.0 support

    • 2.5-inch form factor, 15mm thickness

    • KIOXIA proprietary architecture with controller, firmware, and 112-layer BiCS FLASH 3D TLC

    • Single-port design optimized for data-center workloads

    • Consistent performance and reliability for 24x7 operation

    • Designed for high-density storage deployments

    • Power loss protection and end-to-end data correction

    • Security option: SIE

    Extra Specifications for Kioxia HDS-TUN-KCD8XRUG3T84 Hard Drive 3.84TB NVMe PCIe x4 Lanes Generation 4.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SIE Single-port CD8-R Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity3.84TB
    Form Factor2.5-inch, 15mm thickness
    InterfacePCIe 4.0, NVMe 1.4
    Maximum Interface Speed64 GT/s (PCIe Gen4 x4)
    NAND Flash Memory TypeBiCS FLASH TLC
    Dimensions (WxDxH)Height: 0.6 x Width: 2.8 x Depth: 4 in
    Weight0.3 lbs
    Performance
    Read7200 MB/s
    Write3800 MB/s
    4KB Random Read125000 IOPS
    4KB Random Write195K IOPS
    Endurance DWPD1DWPD
    Power
    Power Consumption (Active)14W
    Power Consumption (Ready)5 W typ.
    Miscellaneous
    MTBF2.5M hours
    Environmental
    Operating EnvironmentHumidity (Operating): 5 % to 95 % R.H.
    Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
    Shock (Operating): 9.8 km/s2 { 1,000 G } ( 0.5 ms )
    Temperature (Operating): 0 ℃ to 75 ℃
    Temperature (Non-operating): -40 ℃ to 85 ℃

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
