  2. Kioxia HDS-TUN-KCM6DRUL7T68 Hard Drive 7.68TB NVMe PCIe x4 Lanes Generation 4.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SED Dual-port CM6-R Series

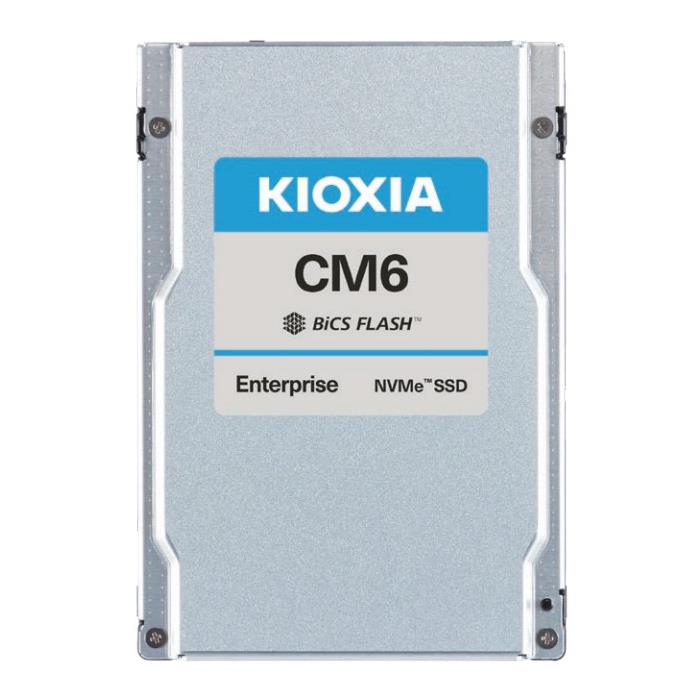

Kioxia HDS-TUN-KCM6DRUL7T68 Hard Drive 7.68TB NVMe PCIe x4 Lanes Generation 4.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SED Dual-port CM6-R Series

Kioxia HDS-TUN-KCM6DRUL7T68 Hard Drive 7.68TB NVMe PCIe x4 Lanes Generation 4.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SED Dual-port CM6-R Series

  • Featuring 96-layer BiCS FLASHTM 3D TLC memory

  • Deliver 1DWPD (Drive Writes Per Day) of endurance

  • Power loss protection (PLP) and end-to-end data protection

  • Optimized to support a broad range of enterprise applications

The Hard Drive Features 7.68TB Storage Capacity. NVMe Solid State Drive (SSD). Built With PCIe 4.0, NVMe 1.4 Interface, Max Interface Speed 64 GT/s (PCIe Gen4 Single x4 Dual x2). Designed in 2.5-inch Form Factor Thickness of 15mm. BiCS FLASH TLC Technology, With a Durability Rating Of 1.0DWPD. Dual-Port, Design For High Availability Applications. Features: Self-Encrypting Drives (SED). Kioxia CM6-R Series - OEM

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    Enterprise NVMe Read-intensive SSD

    • The CM6-R series is a read-intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software-defined storage and virtualization.

    • Built on PCIe 4.0 and NVMe 1.4 technology. Featuring KIOXIA Corporation's 96-layer BiCS FLASH 3D TLC memory, the CM6-R Series of enterprise NVMe SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance making them ideally suited for read-intensive enterprise applications.

    • SIE option supports Crypto Erase, which is a standardized feature defined by NVM Express Inc.

    Extra Specifications for Kioxia HDS-TUN-KCM6DRUL7T68 Hard Drive 7.68TB NVMe PCIe x4 Lanes Generation 4.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SED Dual-port CM6-R Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity7.68TB
    InterfacePCIe 4.0, NVMe 1.4
    Interface Speed64 GT/s (Gen4 1x4, 2x2)
    NAND Flash Memory TypeBiCS FLASH TLC
    Dimensions (WxDxH)Height 15.0 mm + 0, - 0.5 mm x Width 69.85 ± 0.25 mm x Length 100.45 mm Max
    Weight130 g Max.
    Performance
    Internal Data Rate6900 MBps (read) / 4000 MBps (write)
    4KB Random Read1,400,000 IOPS
    4KB Random Write170,000 IOPS
    Power
    Supply Voltage12 V ± 10%, 3.3 Vaux ± 15%
    Power Consumption20 W (Active), 5.0 W (Ready)
    Miscellaneous
    MTBF2.5 (M hours)
    FeaturesPCIe 4.0, NVMe 1.4 specification compliant, Form factor: 2.5-inch, 15 mm Z-height, Proprietary KIOXIA architecture: controller, firmware and BiCS FLASHTM 96-layer 3D TLC memory, SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplanes, Dual-port design for high availability applications, 6th generation, two-die failure recovery and double parity protection, High performance with lower power consumption, Power loss protection (PLP) and end-to-end data protection, Suited for 24x7 enterprise workloads, Six power mode settings
    ApplicationsSoftware defined storage and virtualization, Data warehousing, Online transaction processing (OLTP), (transactional and relational databases), Business intelligence, Artificial intelligence and machine learning
    Environmental
    Operating EnvironmentTemperature (Operating): 0 °C to 70 °C
    Humidity (Operating): 5 % to 95 % R.H.
    Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
    Shock (Operating): 9,800 m/s2 { 1,000 G } ( 0.5 ms duration )

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
