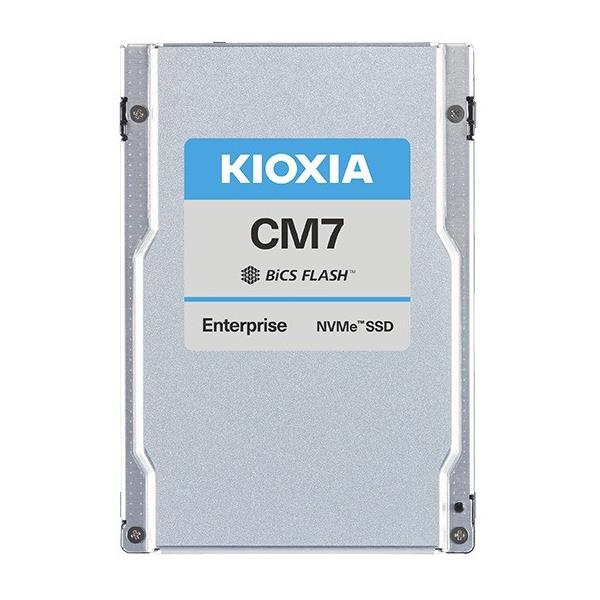

  2. Kioxia HDS-TUN-KCMYDRUG3T84 Hard Drive 3.84TB NVMe PCIe x4 Lanes Generation 5.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SED CM7-R Series
Kioxia HDS-TUN-KCMYDRUG3T84 Hard Drive 3.84TB NVMe PCIe x4 Lanes Generation 5.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SED CM7-R Series

Kioxia HDS-TUN-KCMYDRUG3T84 Hard Drive 3.84TB NVMe PCIe x4 Lanes Generation 5.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SED CM7-R Series

  • PCIe 5.0, NVMe 2.0 specification compliant

  • Dual-port design for high availability applications

  • High performance with lower power consumption

  • Power loss protection (PLP) and end-to-end data protection

The Hard Drive Features 3.84TB Storage Capacity. NVMe Solid State Drive (SSD). Built With PCIe Generation 5.0 x4, NVMe 2.0 Interface, Designed in 2.5-inch Form Factor Thickness of 15mm. BiCS FLASH TLC Technology, With a Durability Rating Of 1.0DWPD. Optimized For Data Center Class Workloads. Features: Self-Encrypting Drives (SED). Kioxia CM7-R Series - OEM

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    • PCIe 5.0, NVMe 2.0 specification compliant

    • Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)

    • Form factor: 2.5-inch, 15 mm thickness

    • Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH 3D TLC

    • Dual-port design for high availability applications

    • High performance with lower power consumption

    • Power loss protection (PLP) and end-to-end data protection

    • Suited for 24x7 enterprise workloads

    Extra Specifications for Kioxia HDS-TUN-KCMYDRUG3T84 Hard Drive 3.84TB NVMe PCIe x4 Lanes Generation 5.0 2.5-inch 15mm BiCS FLASH TLC 1DWPD SED CM7-R Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity3.84TB
    Form Factor2.5-inch, 15mm thickness
    InterfacePCIe 5.0, NVMe 2.0
    Maximum Interface Speed128 GT/s (PCIe Gen5 single x4, dual x2)
    NAND Flash Memory TypeBiCS FLASH TLC
    Performance
    Read14,000 MB/s
    Write6,750 MB/s
    4KB Random Read2,700K IOPS
    4KB Random Write310K IOPS
    Endurance DWPD1DWPD
    Power
    Supply Voltage12 V ± 10 %, 3.3 V ± 15 %
    Power Consumption (Active)25 W typ.
    Power Consumption (Ready)5 W typ.
    Miscellaneous
    MTBF2,500,000 hours
    Environmental Parameters
    Operating TemperatureTemperature(Non-operating): -40 °C to 85 °C
    Humidity (Operating): 5 % to 95 % R.H.
    Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
    Shock (Operating): 9.8 km/s2 { 1,000 G } ( 0.5 ms )
    Temperature (Operating): 0 °C to 72 °C

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:SOLIDIGM
    Type of Support:FULL
    Phone No.:833-313-7337
    URL:Click here for Manufacturer Website
