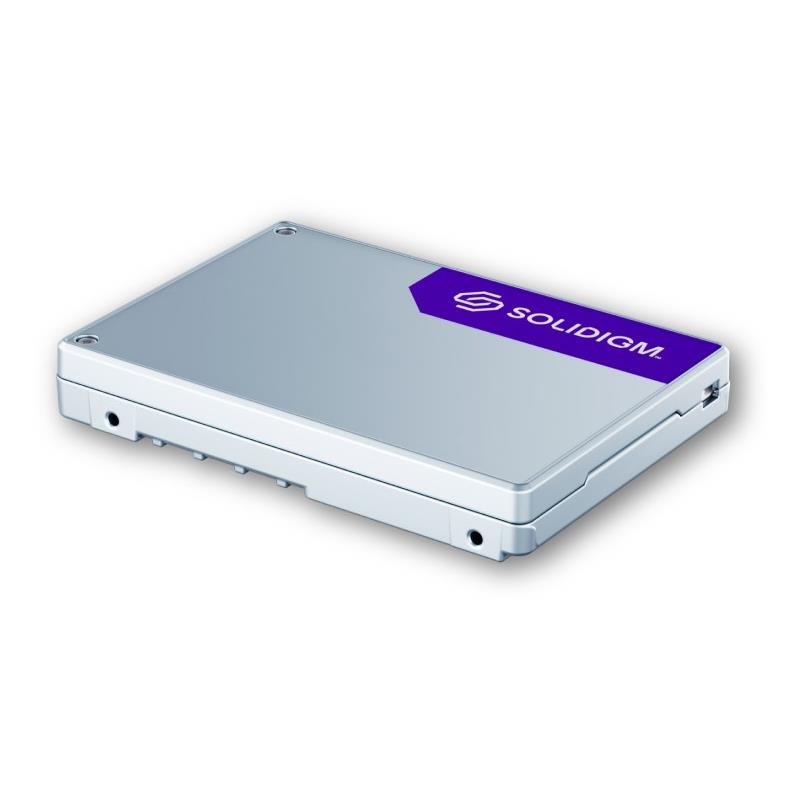

Solidigm HDS-IUN-KX076T1O-S-II001 7.68TB NVMe Solid-State Drive PCIe x4 Lanes Generation 4.0 U.2 15mm 144L TLC 3D NAND 2DWPD OPAL Encrypted D7-P5520 Series

End-to-End Data Protection
OPAL Encrypted, 144L TLC 3D NAND
Optimized For Data Center Workloads

The NVMe Solid-State Drive Features 7.68TB Storage Capacity. Built With PCIe Generation 4.0 x4 Interface, Designed in U.2 Form Factor Thickness of 15mm. 144L Triple-Level Cell (TLC) 3D NAND Technology, With a Durability Rating Of 2.0DWPD. Designed For Read-Intensive Workloads. OPAL Encrypted. Solidigm D7 P5520 Series - OEM

Advanced Technologies

Enhanced Power Loss Data Protection
Hardware Encryption AES 256 bit
Temperature Monitoring and Logging
End-to-End Data Protection

Extra Specifications for Solidigm HDS-IUN-KX076T1O-S-II001 7.68TB NVMe Solid-State Drive PCIe x4 Lanes Generation 4.0 U.2 15mm 144L TLC 3D NAND 2DWPD OPAL Encrypted D7-P5520 Series

Main Specifications
Device Type	NVMe Solid state drive - internal
Capacity	7.68TB
Form Factor	U.2 15mm
Interface	PCIe 4.0 x4 NVMe
NAND Flash Memory Type	144L TLC 3D NAND
Weight	165g +/- 5g
Performance
4KB Random Read	700000 IOPS (4K Blocks)
4KB Random Write	114000 IOPS (4K Blocks)
Endurance DWPD	2DWPD
Average Latency	Latency - Random Write (typ.) 15μs
	Latency - Sequential Read (typ.) 10μs
	Latency - Sequential Write (typ.) 13μs
	Latency - Random Read (typ.) 75μs
Power
Power Consumption (Active)	13W
Power Consumption (Idle)	5W
Environmental
Operating Environment	Operating Temperature Range: 0°C to 70°C
	Vibration - Operating: 2.17 GRMS (5 - 700 Hz) Max
	Vibration - Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
	Shock (Operating and Non-Operating): 1,000 G (Max) at 0.5 msec
Miscellaneous
MTBF	2 million hours

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	1-2 weeks
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	SOLIDIGM
Type of Support:	FULL
Phone No.:	833-313-7337
URL:	Click here for Manufacturer Website

Solidigm HDS-IUN-KX076T1O-S-II001 7.68TB NVMe Solid-State Drive PCIe x4 Lanes Generation 4.0 U.2 15mm 144L TLC 3D NAND 2DWPD OPAL Encrypted D7-P5520 Series
