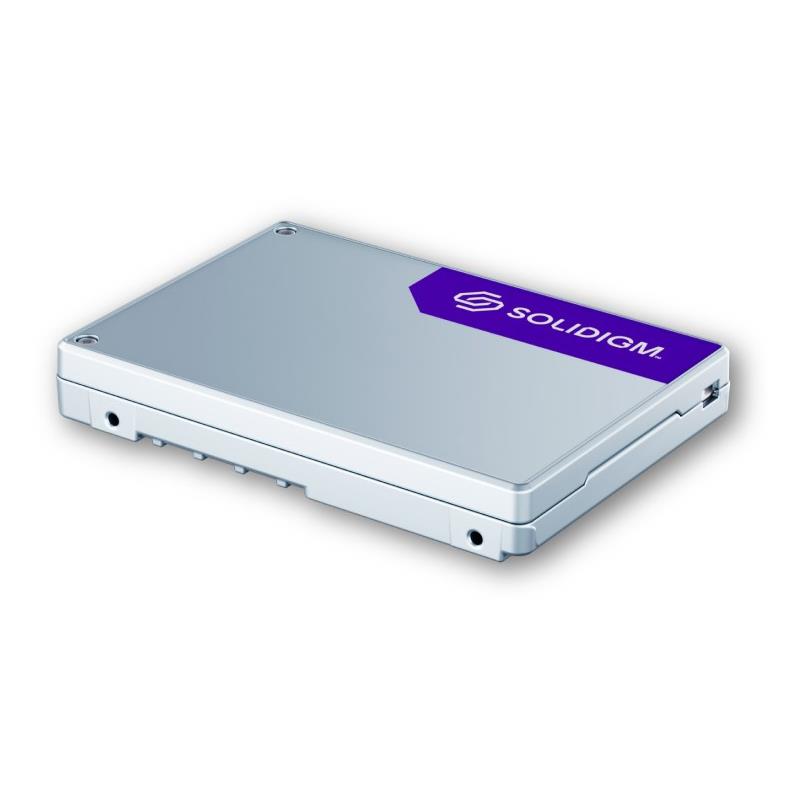

  2. Solidigm HDS-IUN-KX076T1O-S-II001 Hard Drive 7.68TB NVMe PCIe x4 Lanes Generation 4.0 U.2 15mm 144L TLC 3D NAND 2DWPD OPAL Encrypted D7-P5520 Series
Solidigm HDS-IUN-KX076T1O-S-II001 Hard Drive 7.68TB NVMe PCIe x4 Lanes Generation 4.0 U.2 15mm 144L TLC 3D NAND 2DWPD OPAL Encrypted D7-P5520 Series

Solidigm HDS-IUN-KX076T1O-S-II001 Hard Drive 7.68TB NVMe PCIe x4 Lanes Generation 4.0 U.2 15mm 144L TLC 3D NAND 2DWPD OPAL Encrypted D7-P5520 Series

  • End-to-End Data Protection

  • OPAL Encrypted, 144L TLC 3D NAND

  • Optimized For Data Center Workloads

The Hard Drive Features 7.68TB Storage Capacity. NVMe Solid State Drive (SSD) Built With PCIe Generation 4.0 x4 Interface, Designed in U.2 Form Factor Thickness of 15mm. 144L Triple-Level Cell (TLC) 3D NAND Technology, With a Durability Rating Of 2.0DWPD. Designed For Read-Intensive Workloads. OPAL Encrypted. Solidigm D7 P5520 Series - OEM

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    Advanced Technologies


    • Enhanced Power Loss Data Protection

    • Hardware Encryption AES 256 bit

    • Temperature Monitoring and Logging

    • End-to-End Data Protection

    Extra Specifications for Solidigm HDS-IUN-KX076T1O-S-II001 Hard Drive 7.68TB NVMe PCIe x4 Lanes Generation 4.0 U.2 15mm 144L TLC 3D NAND 2DWPD OPAL Encrypted D7-P5520 Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity7.68TB
    Form Factor U.2 15mm
    InterfacePCIe 4.0 x4 NVMe
    NAND Flash Memory Type144L TLC 3D NAND
    Weight165g +/- 5g
    Performance
    4KB Random Read700000 IOPS (4K Blocks)
    4KB Random Write114000 IOPS (4K Blocks)
    Endurance DWPD2DWPD
    Average LatencyLatency - Random Write (typ.) 15μs
    Latency - Sequential Read (typ.) 10μs
    Latency - Sequential Write (typ.) 13μs
    Latency - Random Read (typ.) 75μs
    Power
    Power Consumption (Active)13W
    Power Consumption (Idle)5W
    Environmental
    Operating EnvironmentOperating Temperature Range: 0°C to 70°C
    Vibration - Operating: 2.17 GRMS (5 - 700 Hz) Max
    Vibration - Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
    Shock (Operating and Non-Operating): 1,000 G (Max) at 0.5 msec
    Miscellaneous
    MTBF2 million hours

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:SOLIDIGM
    Type of Support:FULL
    Phone No.:833-313-7337
    URL:Click here for Manufacturer Website
