| Main Specifications |

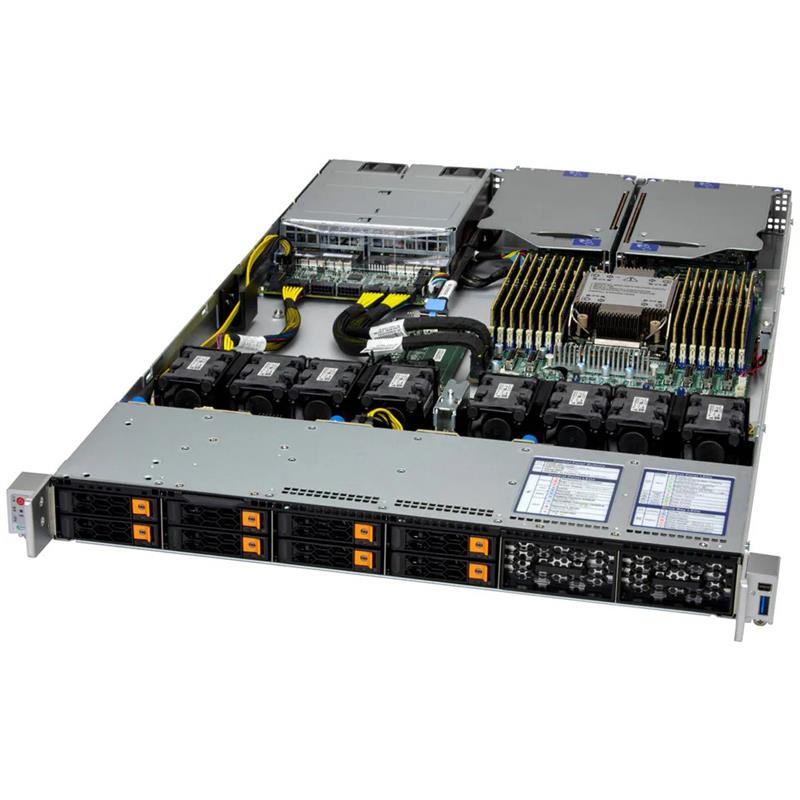

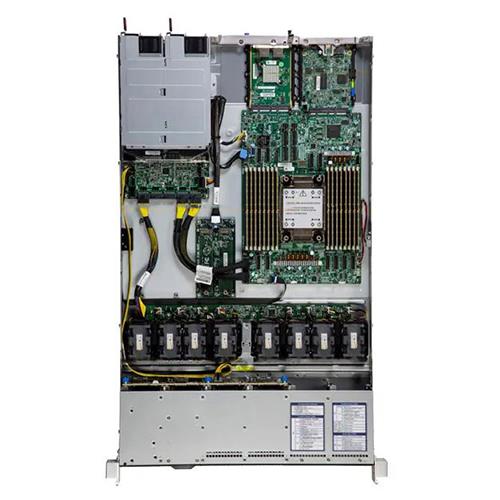

| Device Type | SuperServer - CloudDC |

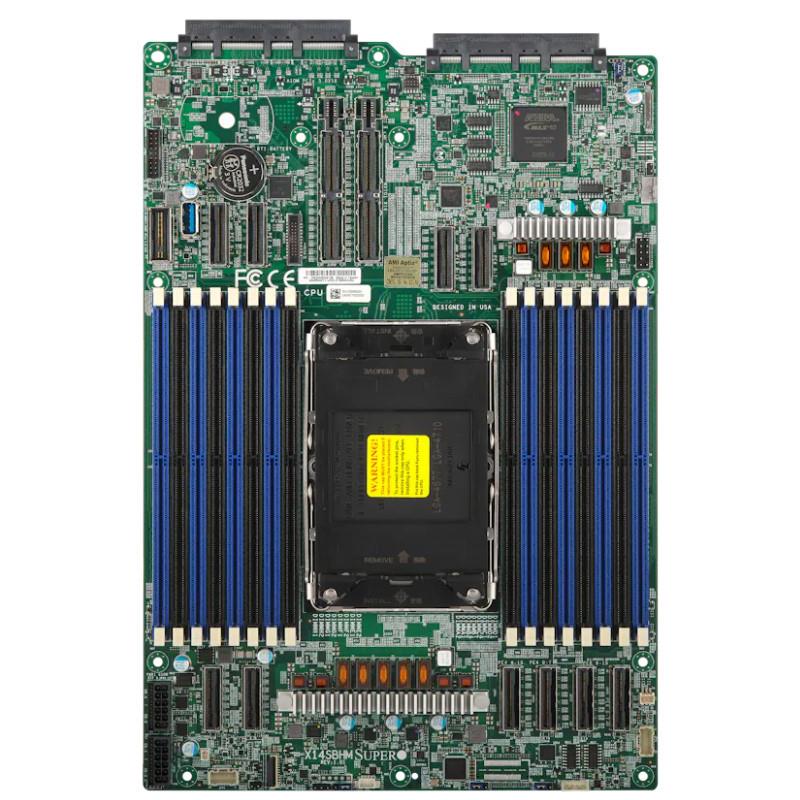

| Built-in Devices | Super X14SBHM |
| Form Factor | 1U Rackmount - CSE-MD101TS-R000NDP |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 29.4" (747 mm) |
| Weight | Gross Weight: 47 lbs (21.3 kg) - Net Weight: 31 lbs (14.1 kg) |
| Enclosure Color | Black |
| Processor |
| Processor Installed | Intel Xeon 6505P Processor With 12-Core/24 Thread (2.2GHz), TDP: 150 W |
| System Memory |
| Memory Installed | 32GB DDR5 5600Mhz |
| Drive Bays |
| Hard Drive Installed | 1x 960GB M.2 NVMe SSD |
| GPU |
| Max GPU Count | Up to 2 single-width GPUs |
| Supported GPUs | NVIDIA PCIe: L4 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| On-Board Devices |
| NVMe | NVMe, RAID 0/1/5/10 support (Intel VROC RAID key required) |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| TPM | 1 TPM Header |

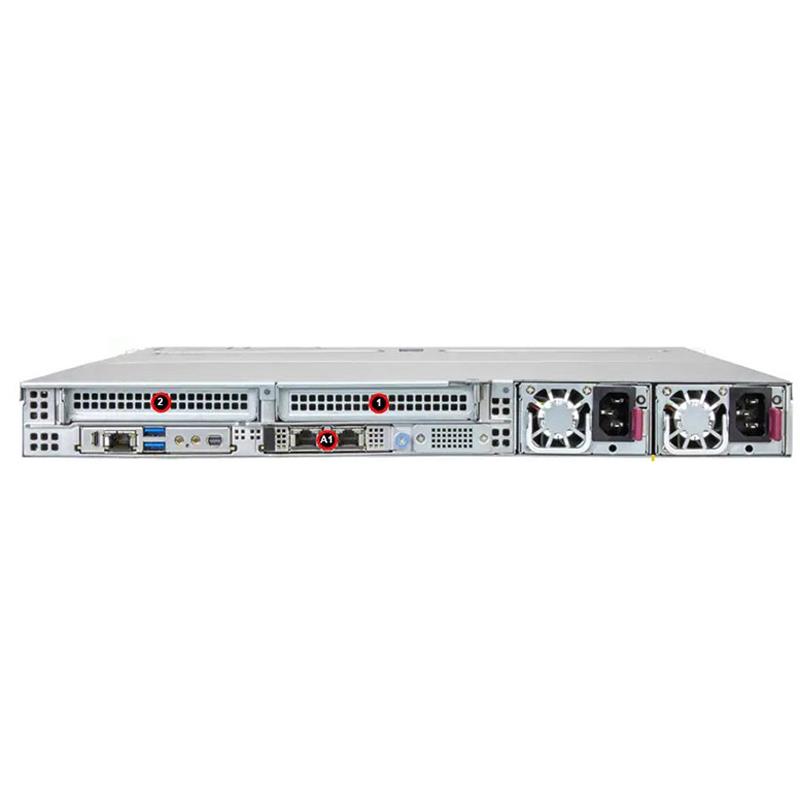

| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port (via DC-SCM) |
| USB(s) | 2 USB 3.2 Gen1 Type-A ports(Rear) (via DC-SCM) |
| Video Output | 1 Mini-DP port(Rear) (via DC-SCM) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | ACPI/APM Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Front Panel |
| LEDs | HDD activity, LAN1 activity, LAN2 activity, Power Failed LED, Power status, System information |
| Buttons | Power On/Off button, UID button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 2 PCIe 5.0 x16 FHHL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280 (default) /22110; optional configuration) |
| Drive Bays / Storage |

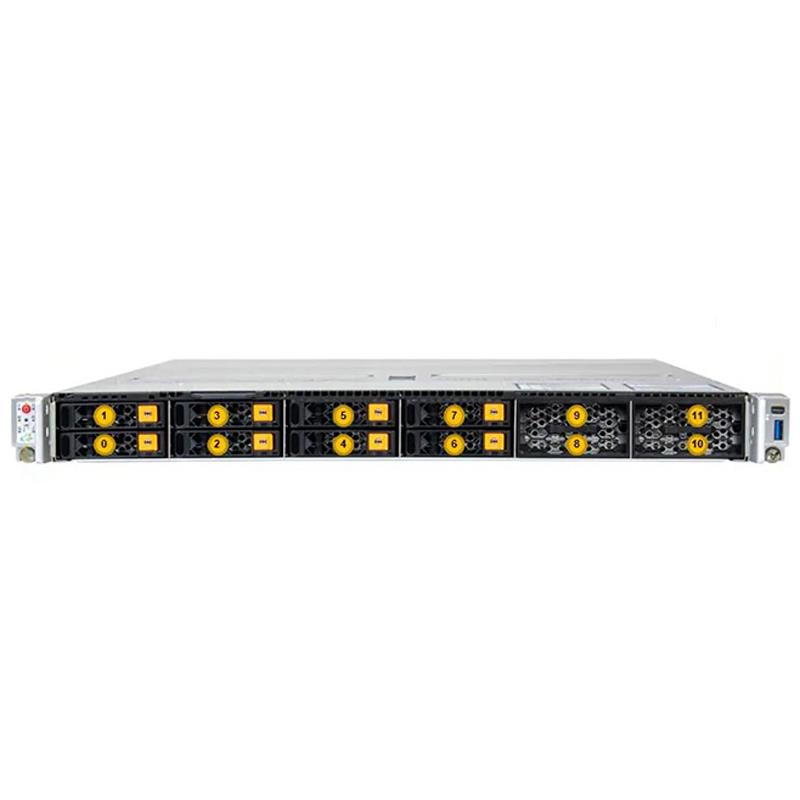

| Drive Bays Configuration | Default: 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe/SAS/SATA drive bays |
| Option A: 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe/SAS/SATA drive bays, 4 front hot-swap 2.5" SAS/SATA drive bays |
| Option B: 12 front hot-swap 2.5" PCIe 5.0 x4 NVMe/SAS/SATA drive bays (NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| System Cooling |
| Fans/Air Shroud | Up to 8 Counter-Rotating PWM 40x40x56mm Fan(s) |
| Air Shroud: 1 CPU Air Shroud, 1 M.2 Side Air Shroud |
| Power Supply |
| Power Supply | 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Certification | 80PLUS Titanium Level |
| Environmental |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) |
| Operating Relative Humidity: 8% to 80% (non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (non-condensing) |
