| Product SKUs |
| Product SKUs | SYS-111AD-WN2R |
| Motherboard |

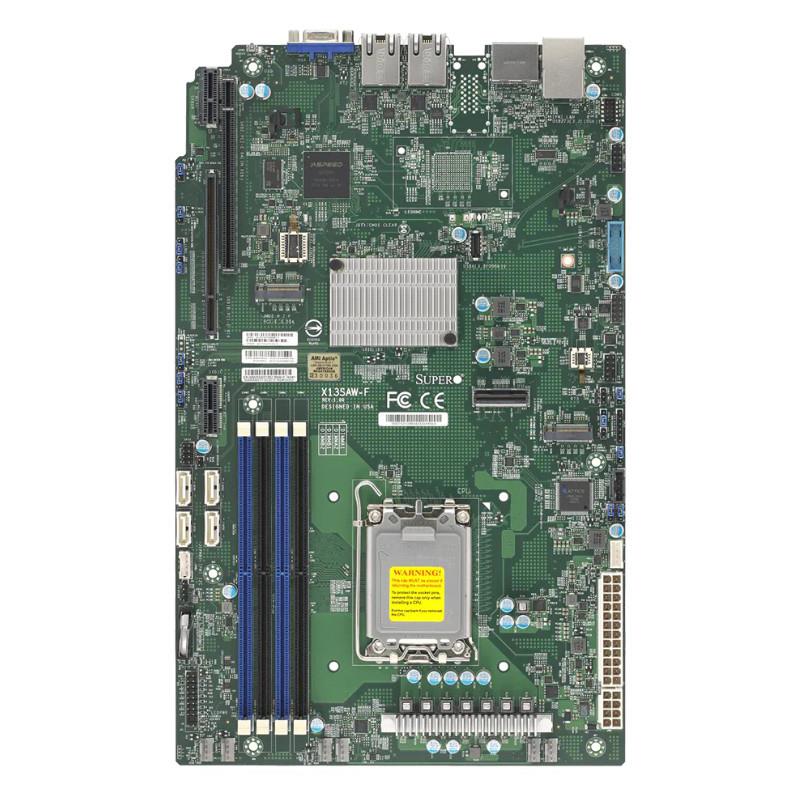

| Motherboard | Super X13SAW-F |
| Processor |
| CPU | Single LGA-1700 |
| 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors |
| Note | Supports up to 80W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | 1 double-width or 1 single-width GPU |
| Supported GPU | View GPU Options |
| NVIDIA PCIe: A1000, T1000, A2 |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 4 DIMM slots |
| Max Memory (2DPC): Up to 192GB 4400MT/s ECC/non-ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | Intel® R680E |
| Network Connectivity | View AOC Options |
| 2 RJ45 2.5GbE with Intel® I226 |

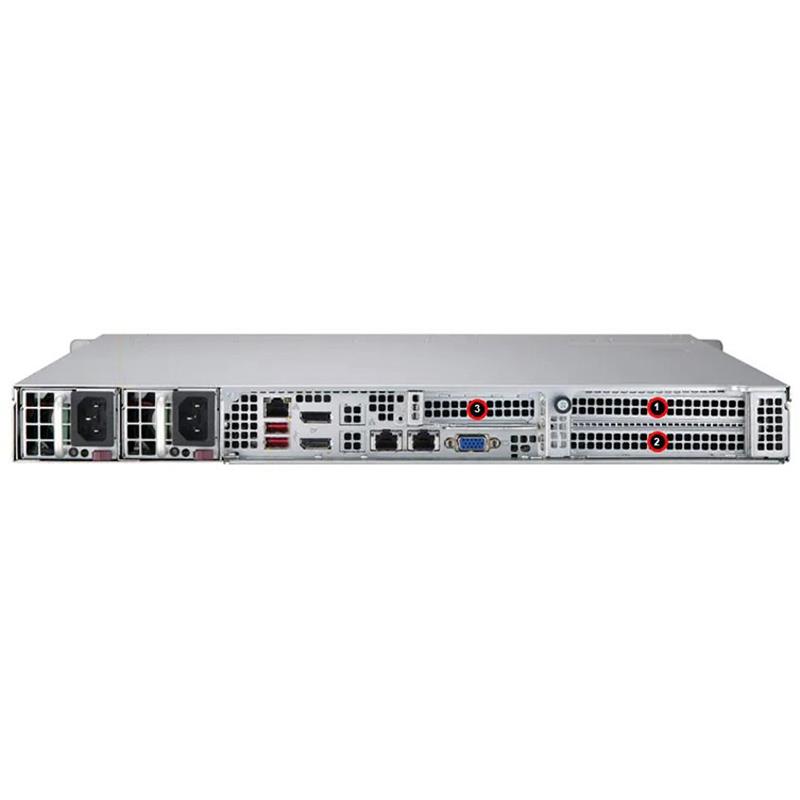

| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| 2 RJ45 2.5 GbE LAN ports (Intel® I226) |
| USB | 2 USB 3.2 Gen1 Type-A ports(rear) |
| 2 USB 3.2 Gen1 Type-A ports(front) |
| Video | 1 VGA port |
| 2 DisplayPort 1.4a ports |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| UEFI 2.8 |
| ACPI 6.5 |
| SMBIOS 3.6 or later |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Supermicro SuperDoctor® 5 (SD5) |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| Temperature | Platform Environment Control Interface (PECI) 3.0 support |
| SuperDoctor® 5 |
| System resource alert via SuperDoctor®5 |

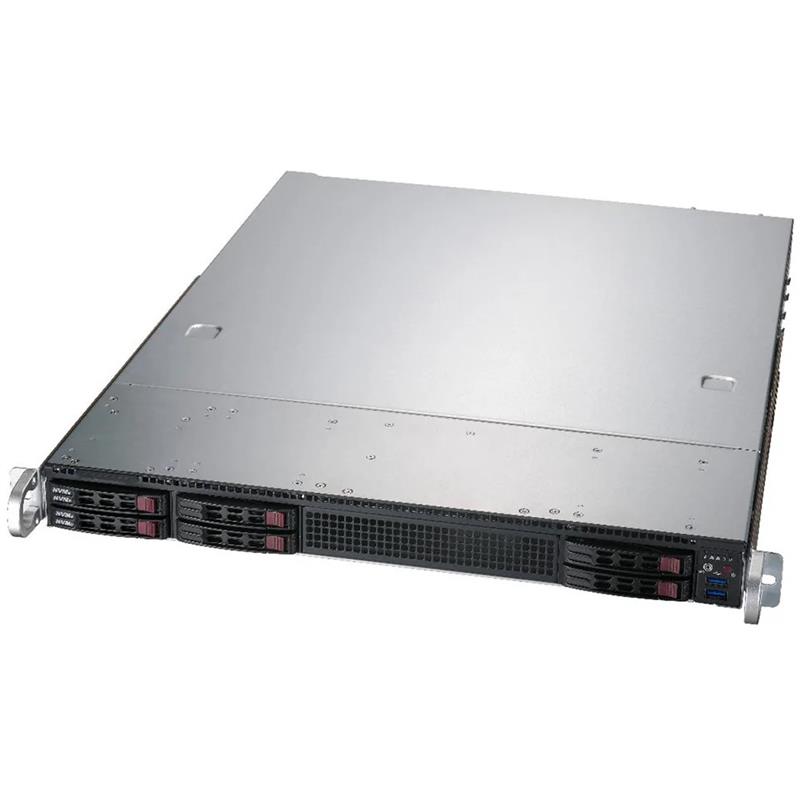

| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-112TS-R000RWNP |
| Dimensions and Weight |
| Height | 1.7" (43 mm) |
| Width | 17.2" (437 mm) |
| Depth | 22" (559 mm) |
| Package | 8" (H) x 27" (W) x 24" (D) |
| Weight | Net Weight: 17.6 lbs (8 kg) |
| Gross Weight: 29 lbs (13.15 kg) |
| Available Color | Black |
| Front Panel |
| LED | Power status |
| System information |
| Device Activity |
| LAN 1 Activity |
| LAN 2 Activity |
| Buttons | UID button |
| Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| Default: Total 6 bays 2 front fixed 2.5" NVMe drive bays 4 front fixed 2.5" SATA drive bays |
| 2 front fixed 2.5" NVMe drive bays |
| 4 front fixed 2.5" SATA drive bays |
| M.2 | View M.2 Options |
| 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110) |
| 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280) |
| System Cooling |
| Fans | Up to 5 Heavy duty counter-rotating Fan(s) |
| Air Shroud | 1 Air Shroud |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 5°C to 40°C (41°F to 104°F) |
| Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) |
| Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
| Name: A3 |
| Operating Relative Humidity: 8% to 85% (max 24° DP; non-condensing) |
