Supermicro SYS-C542I-11302U Mid-Tower Mainstream Server Powered by One Intel Core Ultra 7 265 Processors (Series 2)

Supermicro SYS-C542I-11302U Mid-Tower Mainstream Server Powered by One Intel Core Ultra 7 265 Processors (Series 2)

• Artificial Intelligence (AI)
• 3D Graphics / Workstation
• Small Business
• IT Infrastructure
• 2D/3D Content Creation
• Edge AI Inferencing

Complete Server Mid-Tower SuperServer, Embedded Intel Core Ultra 7 265 Processors (Series 2) With, 2.4GHz (Max Turbo Frequency: 5.3GHz) - (20-Core/20-Thread, 30 MB Cache / TDP 65 W). Up To 256GB 5600MT/s non-ECC DDR5 UDIMM, In 4 DIMM Slots/2 Channels. Chipset: System on Chip, On-Board: SATA. Drive Bays / Storage: Option A Total 4 Bays: 2 Internal Hot Swap 2.5in SATA Drive Bays, 2 Internal Hot Swap 3.5in SATA Drive Bays. Option B Total 4 Bays: 4 Internal Hot Swap 2.5in SATA Drive Bays. 1 M.2 PCIe 5.0 x4 NVMe Slot (M-key 2280 (default), Capacity 1TB). Network Connectivity: 1 RJ45 1GbE LAN Port. Others: 7 USB Ports, 1 Thunderbolt 4 Type-C Port (Rear). Video: 1 HDMI 2.1 Port (Rear), 1 DisplayPort 2.1 Port (Rear), 1 DisplayPort over USB Type-C Port (Rear), Audio. 1x 1000W Power Supply - (CSE-GS3B-000NBP + Super C9B860-MW) - SYS-C542I-11302U Components installed: Intel Core Ultra 7 265 Processor With Built In NPU Max 5.30 GHz, Default 32GB DDR5 5600 High Speed Memory 1DPC, 1TB NVMe PCIe 5.0 SSD, 1x 1000W Gold Level (90%) Power Supply, Windows 11 Pro Pre Loaded

1. Windows 11 Pro Pre-loaded
2. Intel® Core™ Ultra 7 265 Processor with Built-in NPU, Max 5.30 GHz
3. Default 32GB DDR5-5600 High-Speed Memory (1DPC)
4. 1TB NVMe PCIe 5.0 SSD
5. Wi-Fi 7, Bluetooth® 5.4, and Intel® Gigabit LAN for seamless networking 1x Thunderbolt™ 4 (USB4), Type-C
6. 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 PCIe 4.0 x1 for add-in cards Versatile Storage Expansion: 4 hot-swap SATA bays + dual M.2 NVMe slots
7. NVIDIA RTX 5080 Ready
8. 1x 1000W Gold Level Power Supply

Extra Specifications for Supermicro SYS-C542I-11302U Mid-Tower Mainstream Server Powered by One Intel Core Ultra 7 265 Processors (Series 2)

Product SKUs
Product SKUs	SYS-C542i-11302U
Motherboard

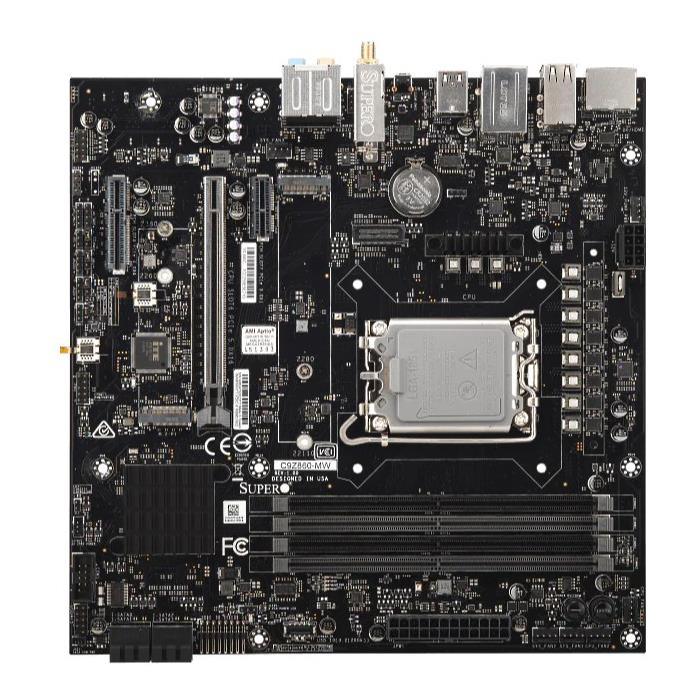

Motherboard	Super C9B860-MW
Processor
CPU	Single LGA-1851
	Intel® Core™ Ultra 9/7/5 (Series 2) processors
Core Count	P-cores: 8C/20T; 30MB Cache
	E-cores: 12C/20T
Note	Supports up to 65W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 1 triple-width or 1 double-width or 2 single-width GPUs
System Memory
Memory	Slot Count: 4 DIMM slots/4 Channels
	Max Memory (1DPC): 256GB 5600MT/s non-ECC DDR5 UDIMM
Memory Voltage	1.1V
On-Board Devices
SATA	SATA (6Gbps)
Chipset	System on Chip
Network Connectivity	1 RJ45 1GbE with Intel® I219-LM
Input / Output
USB	2 USB 2.0 Type-A ports(rear)
	2 USB 3.2 Gen1 Type-A ports(rear)
	2 USB 3.2 Gen1 ports(Header)
	1 Thunderbolt™ 4 Type-C port(Rear)
	2 USB 2.0 ports(header)
	1 USB 3.2 Gen2x2 Type-C port(Header)
Video	1 VGA port
	1 HDMI 2.0b port
	1 DisplayPort 1.4a port
Audio	Rear Audio
System BIOS
BIOS Type	AMI 32MB SPI Flash
BIOS Features	ACPI 6.0
	Plug and Play (PnP)
	SMBIOS 3.0 or later
	Riser Card audio detection support
Security
Hardware	Trusted Platform Module (TPM) 2.0
	Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware
	Secure Boot
	Secure Firmware Updates
	Automatic Firmware Recovery
	Supply Chain Security: Remote Attestation
	System Lockdown
PC Health Monitoring
Voltage	+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Chassis
Form Factor	Mid-Tower
Model	CSE-GS3B-000NBP
Dimensions and Weight
Height	17.72" (450 mm)
Width	8.07" (205 mm)
Depth	18.5" (470 mm)
Package	24.29" (H) x 12.8" (W) x 23.23" (D)
Weight	Net Weight: 28 lbs (12.7 kg)
	Gross Weight: 30 lbs (13.61 kg)
Available Color	Black
Front Panel
Port	Audio Jack-Combo microphone input / audio output port
	USB Type-A Ports-USB 3.2 Gen 1 ports (5G)
	USB Type-C-USB 3.2 Gen 2 port (20G)
LED	Power status LED
	HDD activity
Buttons	Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
M.2
PCI
Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays 4 front hot-swap 3.5" SATA drive bays
	4 front hot-swap 3.5" SATA drive bays
	Option A: Total 4 bays 4 front hot-swap 2.5" SATA drive bays
	4 front hot-swap 2.5" SATA drive bays
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
System Cooling
Fans	3 Top 120mm Fan(s)
	3 Front 120mm Fan(s)
	1 Rear 120mm Fan(s)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
	Operating Relative Humidity: 8% to 90% (Non-Condensing)
	Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
	Operating Temperature: 10°C to 35°C (50°F to 95°F)

Name	Part Number	Price	Add to Cart	Qty.	Description
HDD Converter	MCP-220-73102-0N •			1	2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
Heatsink	SNK-P0093AP4 •			1	High Performance CPU Heatsink
	Mobile Rack	CSE-M14TQC	$ 186.50		1	SAS3/SATA mobile rack for 4x 2.5" drives

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
