| Product SKUs |
| Product SKUs | SYS-C542i-11682U |
| Motherboard |
| Motherboard | Super C9B860-MW |
| Processor |
| CPU | Single LGA-1851 |
| Intel® Core™ Ultra 9/7/5 (Series 2) processors |
| Core Count | P-cores: 8C/20T; 30MB Cache |
| E-cores: 12C/20T |
| Note | Supports up to 65W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 1 triple-width or 1 double-width or 2 single-width GPUs |
| Supported GPU | NVIDIA PCIe: RTX 5000, RTX 4000 |
| System Memory |
| Memory | Slot Count: 4 DIMM slots/4 Channels |
| Max Memory (1DPC): 256GB 5600MT/s non-ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| SATA | SATA (6Gbps) |
| Chipset | System on Chip |
| Network Connectivity | 1 RJ45 1GbE with Intel® I219-LM |

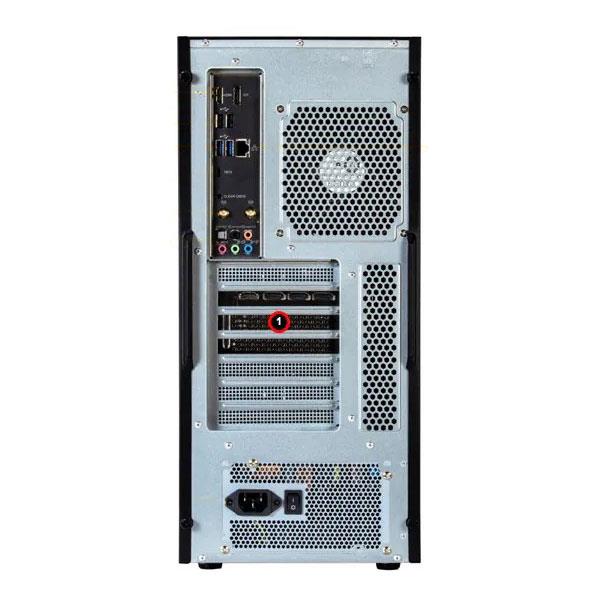

| Input / Output |
| USB | 2 USB 2.0 Type-A ports(rear) |
| 2 USB 3.2 Gen1 Type-A ports(rear) |
| 2 USB 3.2 Gen1 ports(Header) |
| 1 Thunderbolt™ 4 Type-C port(Rear) |
| 2 USB 2.0 ports(header) |
| 1 USB 3.2 Gen2x2 Type-C port(Header) |
| Video | 1 VGA port |
| 1 HDMI 2.0b port |
| 1 DisplayPort 1.4a port |
| Audio | Rear Audio |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash |
| BIOS Features | ACPI 6.0 |
| Plug and Play (PnP) |
| SMBIOS 3.0 or later |
| Riser Card audio detection support |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| System Lockdown |
| PC Health Monitoring |
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature |
| Chassis |

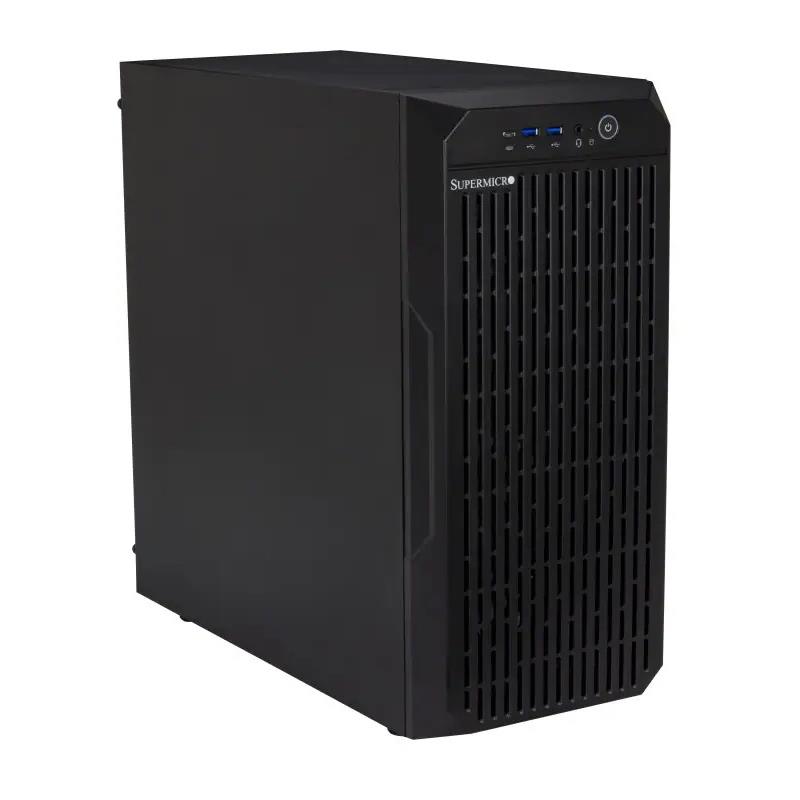

| Form Factor | Mid-Tower |
| Model | CSE-GS3B-000NBP |
| Dimensions and Weight |
| Height | 17.72" (450 mm) |
| Width | 8.07" (205 mm) |
| Depth | 18.5" (470 mm) |
| Package | 24.29" (H) x 12.8" (W) x 23.23" (D) |
| Weight | Net Weight: 28 lbs (12.7 kg) |
| Gross Weight: 30 lbs (13.61 kg) |
| Available Color | Black |
| Front Panel |
| Port | Audio Jack-Combo microphone input / audio output port |
| USB Type-A Ports-USB 3.2 Gen 1 ports (5G) |
| USB Type-C-USB 3.2 Gen 2 port (20G) |
| LED | Power status LED |
| HDD activity |
| Buttons | Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| PCI |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: Total 4 bays 4 front hot-swap 3.5" SATA drive bays |
| 4 front hot-swap 3.5" SATA drive bays |
| Option A: Total 4 bays 4 front hot-swap 2.5" SATA drive bays |
| 4 front hot-swap 2.5" SATA drive bays |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110) |
| System Cooling |
| Fans | 3 Top 120mm Fan(s) |
| 3 Front 120mm Fan(s) |
| 1 Rear 120mm Fan(s) |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
