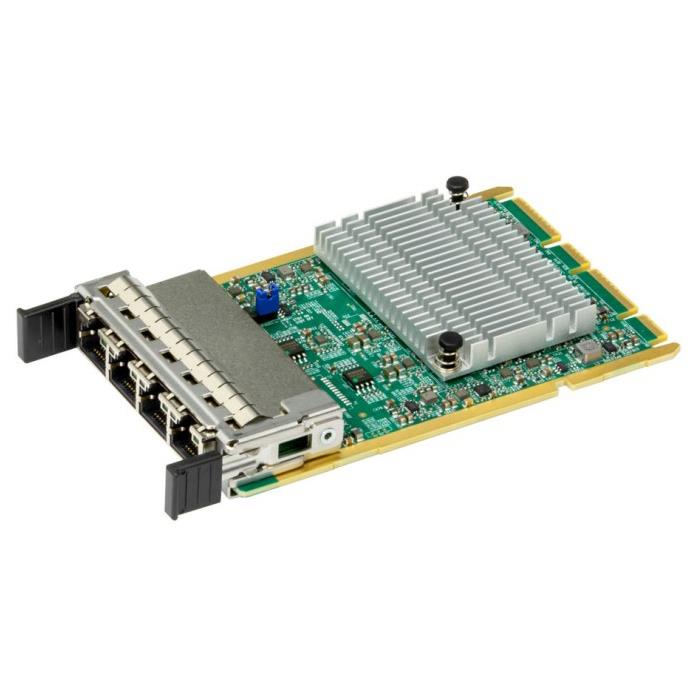

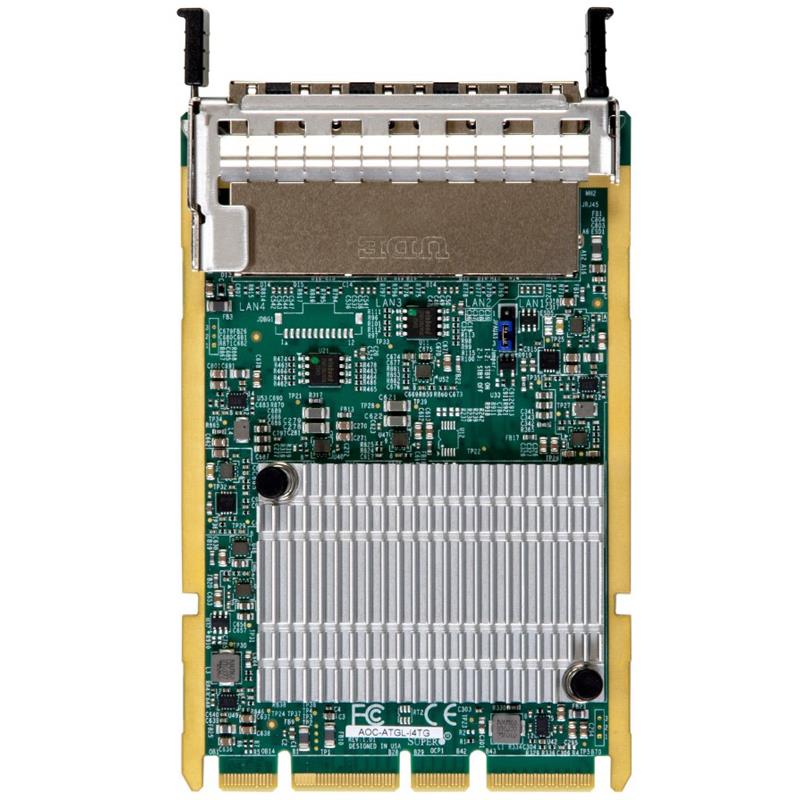

Supermicro AOC-ATGL-I4TG 10Gigabit Ethernet Card Advanced I/O Module (AIOM) Form Factor 4x RJ45 Connectors Powered By Intel E610-XAT2

Supermicro AOC-ATGL-I4TG 10Gigabit Ethernet Card Advanced I/O Module (AIOM) Form Factor 4x RJ45 Connectors Powered By Intel E610-XAT2

  • Intel E610-XAT2 controller

  • Advanced I/O Module (AIOM) Form Factor

  • 4x RJ45 connectors with speeds up to 10Gbps

This Add On Card Designed To Deliver High-Performance 10GbE Connectivity. Powered By The Intel E610-XAT2 Ethernet Controller. It Provides 4x 10GbE RJ45 connectors. Advanced I/O Module (AIOM) Form Factor AIOM G4 x8/x8 (PCIe 4.0 x4) interface. RoHS Compliant - (AOC-ATGL-I4TG)

$ 303.00$ 303.00303.0USD

$ 303.00

Option not available

PreOrder
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    The Supermicro AOC-ATGL-I4TM and AOC-ATGL-I4TG are quad-port 10Gb Ethernet AIOM adapters based on the Intel® Ethernet Controller E610-XAT2. These adapters provide reliable 10GBASE-T connectivity with power-optimized performance, integrated security, and virtualization support for data center and edge environments.


    • Advanced I/O Module (AIOM) Form Factor

    • Intel E610-XAT2 Ethernet Controller

    • Quad-port 10GBASE-T (RJ45) connectivity

    • Support for 10GbE, 1GbE, 100Mb

    • Network Virtualization: VXLAN and NVGRE

    • Energy Efficient Ethernet (EEE)

    • Intel Ethernet Flow Director

    • NC-SI for Remote Management (disabled by default)

    • PLDM manageability

    • Secure boot and SPDM-based device attestation

    • RoHS compliant

    • FCC Class A, FCC Class B

    Extra Specifications for Supermicro AOC-ATGL-I4TG 10Gigabit Ethernet Card Advanced I/O Module (AIOM) Form Factor 4x RJ45 Connectors Powered By Intel E610-XAT2

    Main Specifications
    Device Type10Gigabit Ethernet Card
    Form FactorAdvanced I/O Module (AIOM)
    InterfacePCIe Gen4 x4
    SupportsSupport for 10GbE, 1GbE, 100Mb
    Dimensions (WxDxH)PCB dimensions: 76mm x 115mm (W x D)
    Connectivity
    Connectors4x 10GbE RJ45
    Miscellaneous
    Environmental ComplianceRoHS Compliant
    FeaturesPowered By Intel E610-XAT2 Ethernet Controller
    Networking
    Networking FeaturesIntel Flow Director, Checksum Offload (IPv4/IPv6, SCTP, TCP, UDP, Tx/Rx)
    Virtualization FeaturesVirtual Machine Device queues (VMDq), Single-Root I/O Virtualization (SR-IOV), VXLAN and NVGRE, GENEVE
    Management FeaturesNC-SI 1.2 (NC-SI Disabled by default), MCTP transport support, PLDM for firmware management, SPDM over MCTP
    Stateless Offload FeaturesTCP Segment Offload (TSO), UDP Segment Offload (USO), Large Segment Offload (LSO), Checksum Offload (TCP/UDP/IP), Large Receive Offload (LRO), Transmit Side Scaling (TSS), Receive Side Scaling (RSS)
    Power
    Power ConsumptionMaximum: 11W (Quad-port)
    Specification
    Operating ConditionsStorage temperature: -40°C to 70°C (-40°F to 158°F)
    Storage humidity: Maximum 90% non-condensing relative humidity at 35°C

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
