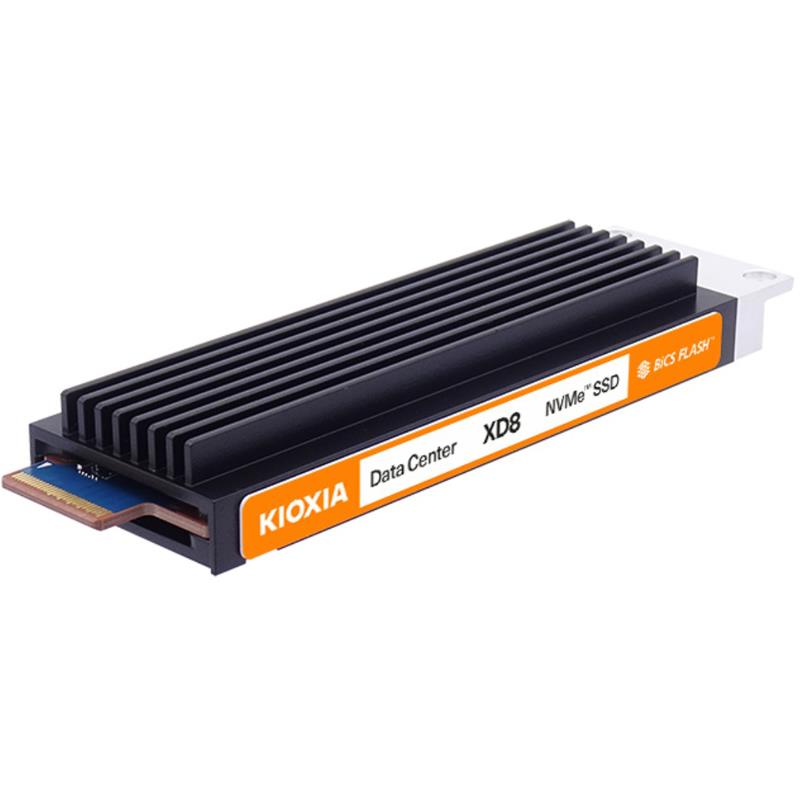

  2. Kioxia KXD8DRJJ1T92 1.92TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 E1.S 9.5mm BiCS FLASH TLC 1DWPD SED XD8 Series
Kioxia KXD8DRJJ1T92 1.92TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 E1.S 9.5mm BiCS FLASH TLC 1DWPD SED XD8 Series

Kioxia KXD8DRJJ1T92 1.92TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 E1.S 9.5mm BiCS FLASH TLC 1DWPD SED XD8 Series

  • Built-in power loss protection safeguards critical data

  • 1.92TB to support large-scale and data-intensive applications

  • Compact form factor improves airflow, density, and power efficiency

  • Servers and storage systems for cloud and hyperscale data centers

The NVMe Solid-State Drive Features 1.92TB Storage Capacity. Built With PCIe Generation 5.0 x4, NVMe 2.0 Interface, Designed In E1.S Form Factor Thickness of 9.5mm. BiCS FLASH Triple?level Cell (TLC) NAND Flash Memory, With a Durability Rating Of 1.0DWPD. Optimized For Storage Systems In Cloud And Hyperscale Data Centers Applications. Features: Self-Encrypting Drives (SED). XD8 Series - OEM

Contact us for volume discounts

    This combination does not exist.

    PreOrder
    1 lb
    Email For Price

    • Compliant with PCIe 5.0 (Gen5 x4), NVMe 2.0 specifications

    • Open Compute Project Datacenter NVMe SSD specification v2.5 support (not all requirements)

    • KIOXIA proprietary architecture: controller, firmware, and BiCS FLASH generation 5

    • Power loss protection (PLP) and end-to-end data protection

    Extra Specifications for Kioxia KXD8DRJJ1T92 1.92TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 E1.S 9.5mm BiCS FLASH TLC 1DWPD SED XD8 Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Form FactorE1.S 9.5mm
    InterfacePCIe 5.0, NVMe 2.0
    Maximum Interface Speed128 GT/s (PCIe Gen5 x4)
    NAND Flash Memory TypeBiCS FLASH TLC
    Dimensions (WxDxH)Thickness 9.5 mm ± 0.35 mm x Width 33.75 mm ± 0.25 mm x Length 118.75 mm ± 0.55 mm
    Weight80 g Max
    Performance
    Read12,500 MB/s
    Write3,100 MB/s
    4KB Random Read1,700K IOPS
    4KB Random Write100K IOPS
    Lifetime Endurance (DWPD)1DWPD
    Power
    Supply Voltage12 V ± 10 %
    Power Consumption (Active)17 W typ.
    Power Consumption (Ready)5 W typ.
    Environmental
    Operating EnvironmentHumidity (Operating): 5 % to 95 % R.H.
    Temperature (Non-operating): -40 °C to 85 °C
    Temperature (Operating): 0 °C to 75 °C
    Vibration (Operating): 12 m/s2 { 1.24 Grms } ( 2 to 500 Hz )
    Shock (Operating): 6.9 km/s2 { 700 G } ( 0.5 ms )
    Miscellaneous
    MTBF2,500,000 hours
    Use ConditionsServers and storage systems for cloud and hyperscale data centers
    FeaturesSelf-Encrypting Drives (SED)

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Kioxia
    Type of Support:FULL
    Phone No.:949-737-7300
    URL:Click here for Manufacturer Website
