| Processor |
| Core Count | 16C/32T; 64MB Cache |
| CPU | Single Socket AM5 (LGA-1718) |
| AMD EPYC™ 4005/4004 Series Processor |
| Note | Supports up to 65W TDP CPUs (Air Cooled) |
| System Memory |
| Memory Voltage | 1.1V |
| Memory | View Memory Options |
| Slot Count: 4 DIMM slots |
| Max Memory (1DPC): 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM |
| On-Board Devices |
| Chipset | AMD B650 |
| Network Connectivity | View AOC Options |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600) |
| 4 RJ45 1 GbE LAN ports (Intel® I350-AM4) |
| TPM | 1 TPM header |
| 1 TPM Onboard/port 80 |
| USB | 1 USB 3.2 Gen1 Type-A port(Rear) |
| 2 USB 3.2 Gen2 Type-A ports(Rear) |
| 1 USB 3.2 Gen1 Type-C port(Rear) |
| Video | 1 HDMI 2.1 port(Rear) |
| 1 Mini-DP port(Rear) |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | ACPI 6.5 |
| UEFI 2.9 |
| SMBIOS 3.7 or later |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Plug-ins for 3rd Party Software |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| FAN | Status monitor for speed control |
| Front Panel |
| Buttons | Power On/Off |
| LED | LAN1 activity |
| LAN2 activity |
| Power status |
| HDD Status |
| WIFI activity |
| Product SKUs |

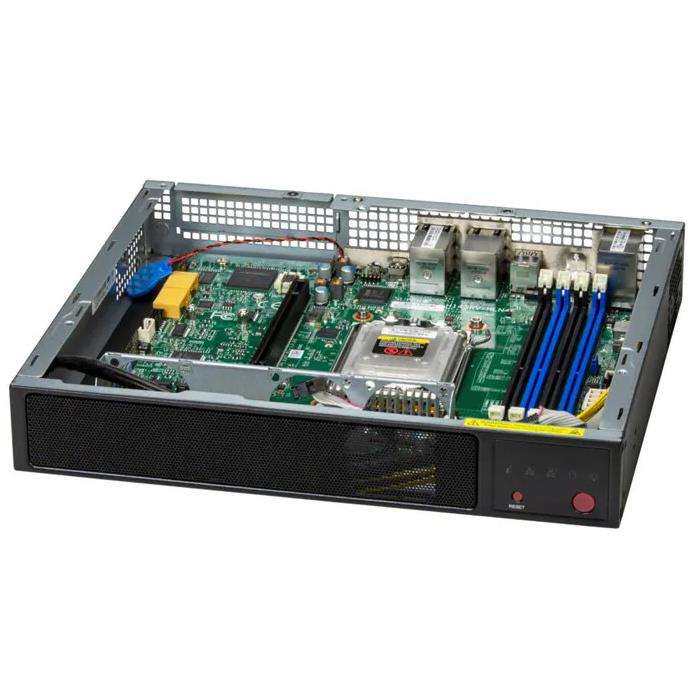

| Product SKUs | AS -E300-14GR |
| Motherboard |
| Motherboard | Super H14SRV-HLN4F |
| Chassis |
| Form Factor | Fan-based Embedded |
| Model | CSE-E300 |
| Dimensions and Weight |
| Height | 1.69" (43 mm) |
| Width | 10.43" (264.8 mm) |
| Depth | 8.89" (225.8 mm) |
| Package | 10.87" (H) x 15" (W) x 5.59" (D) |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) |
| Net Weight: 3.7 lbs (1.6 kg) |
| Palletized Packing (W x H x L) | 54.33" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm) |
| Available Color | Black |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| (*SATA support may require additional storage controller and/or cables) |
| Default: Total 1 bay 1 internal fixed 2.5" SATA* drive bay |
| 1 internal fixed 2.5" SATA* drive bay |
| M.2 | View M.2 Options |
| 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280) |
| 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 22110) |
| System Cooling |
| Fans | Up to 2x 4-PIN PWM 40x40x28mm Fan(s) |
| Up to 1 CPU heatsink with 70x70x15mm Fan(s) |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow |
