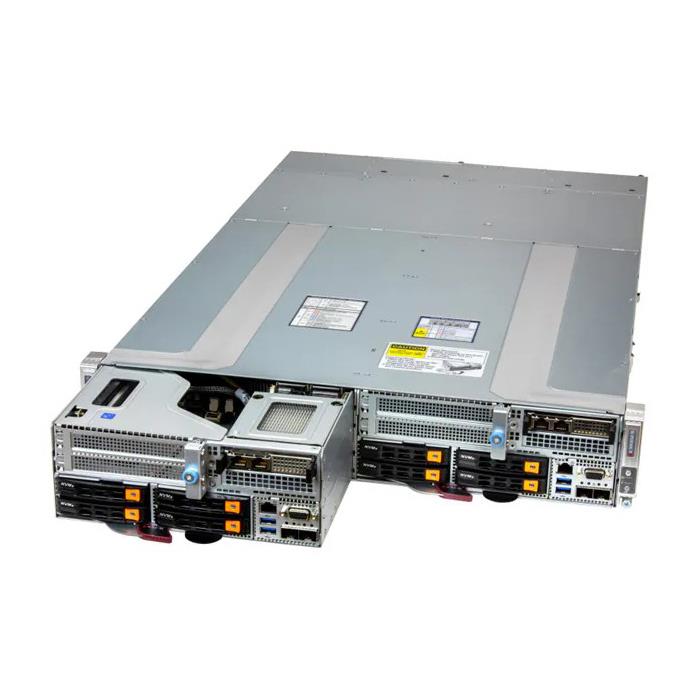

Supermicro AS-2116GT-DTNF GrandTwin A+ 2U Barebone Single AMD EPYC 9005 Series Processors
• HPC
• IoT Gateway
• Deep Learning/AI/Machine Learning Development
• Scale-Out Object Storage
• Cloud Gaming
• Telco Edge
• MEC (Multi-Access Edge Computing)
• Multi-Purpose CDN
• Cluster Node
• GPU Virtualization (VDI)
• HPC cluster computer nodes
Barebone 2U Rackmount SuperServer Two Hot-pluggable Systems Nodes, Each Node Supports: Single Processor For AMD EPYC 9005 Series Processors, Up To 192C/384T, Up to 512MB Cache. Supports Up To 500W TDP CPUs (Air Cooled). 1 Double-width Or 2 Single-width GPUs. 12 DIMM Slots Supporting Up To 3TB 6400MT/s ECC DDR5 RDIMM. Chipset: System on Chip, On-Board: SATA. Drive Bays / Storage: 4 Front Hot Swap 2.5In PCIe 5.0 X4 NVMe/SATA Drive Bays, 2 M.2 PCIe 5.0 X4 NVMe Slots (M Key 22110 (Default) /2280). Network Connectivity: Via IO Module. Optional Configuration For Power Supply - (CSE-GT222BG-R2K21BP + Super H14SST-GE) - AS-2116GT-DTNF
1. Single Socket SP5 AMD EPYC™ 9005 Series Processors up to 500W with air cooling
2. Up to 12 DIMMs, 6400 MT/s 3TB DDR5 memory in 1DPC
3. Up to 2 PCIe 5.0 x16 FHHL slots or 1 PCIe 5.0 x16 FH/10.5"L Double Width slot Flexible networking with AIOM support GrandTwin front IO module offers additional value for networking expansion(10G/25G/200G)
4. Up to 4 front hot-swap 2.5" NVMe/SATA drive bays or up to 6 front hot-swap 2.5" NVMe drive bays *NVMe/SATA support requires additional parts from the optional parts list
5. 2 Redundant 2200W Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2116GT-DTNF GrandTwin A+ 2U Barebone Single AMD EPYC 9005 Series Processors
| Product SKUs | ||
| Product SKUs | AS -2116GT-DTNF | |
| Motherboard | ||
| Motherboard | Super H14SST-GE | |
| Processor (per Node) | ||
| CPU | Single processor(s) | |
| AMD EPYC™ 9005 Series Processors | ||
| Core Count | Up to 192C/384T; Up to 512MB Cache | |
| Note | Supports up to 500W TDP CPUs (Air Cooled) | |
| GPU (per Node) | ||
| Max GPU Count | Up to 1 double-width or 2 single-width GPUs | |
| System Memory (per Node) | ||
| Memory | View Memory Options | |
| Slot Count: 12 DIMM slots/1 Channels | ||
| Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices (per Node) | ||
| Chipset | System on Chip | |
| Network Connectivity | View AOC Options | |
| Input / Output (per Node) | ||
| USB | 2 USB 3.0 ports | |
| Video | 1 VGA port | |
| System BIOS | ||
| BIOS Type | AMI 64MB Flash ROM | |
| Management | ||
| Software | Supermicro Thin-Agent Service (TAS) | |
| Supermicro Server Manager (SSM) | ||
| SuperCloud Composer® | ||
| Super Diagnostics Offline (SDO) | ||
| SuperServer Automation Assistant (SAA) New! | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-GT222BG-R2K21BP | |
| Dimensions and Weight | ||
| Height | 3.46" (88 mm) | |
| Width | 17.67" (449 mm) | |
| Depth | 28" (711.2 mm) | |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) | |
| Weight | Gross Weight: 77.3 lbs (35.1 kg) | |
| Net Weight: 57.3 lbs (26 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| LED | Power status LED | |
| HDD activity LED | ||
| Network activity LEDs | ||
| Universal Information (UID) LED | ||
| Buttons | Power On/Off button | |
| UID button | ||
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage (per Node) | ||
| Drive Bays Configuration | View NVMe Options | |
| Default: Total 4 bays 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SATA* drive bays | ||
| 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SATA* drive bays | ||
| Option A: Total 6 bays 6 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays | ||
| 6 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays | ||
| (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280) | ||
| System Cooling | ||
| Fans | Up to 2x 17.6K RPM Heavy Duty 8cm Fan(s) | |
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | |
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 4 NVME | BPN-NVME5-826N-B2B | $ 0.00 | 2 | 2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane | ||
| 4 NVME | CBL-MCIO-1237M5 | $ 66.00 | 1 | MCIO x8 (STR to STR),37cm,85OHM,RoHS | ||
| 4 NVME | CBL-MCIO-1245M5 • | 2 | MCIO x8 (STR to STR),45cm,85OHM,RoHS | |||
| 4 NVME | CBL-MCIO-1340M5-1 • | 1 | MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS | |||
| 4 NVME | CBL-PWEX-1131-20 | 1 | MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS | |||
| 4 NVME | CBL-PWEX-1137YB-30 | $ 1.00 | 1 | MicroHi(2x4 to 2x2Y),Ph3.0, 30/30cm,9.5A/p,16AWG,RoHS | ||
| 4 NVME | MCP-220-00167-0B • | 4 | Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS | |||
| 4 SATA | BPN-SAS3-826TQ-B2B | $ 74.50 | 2 | 2-Port 12Gbps Backplane for 2x2.5" SAS/SATA HDD/SSD | ||
| 4 SATA | CBL-MCIO-1217REQT4S2-85 | $ 37.00 | 1 | MCIO X8/RE to 4 SATA+2 SB, 17/10cm, 85Ohm, RoHS | ||
| 4 SATA | CBL-MCIO-1245M5 • | 1 | MCIO x8 (STR to STR),45cm,85OHM,RoHS | |||
| 4 SATA | CBL-MCIO-1340M5-1 • | 1 | MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS | |||
| 4 SATA | CBL-PWEX-0990Y-20 | $ 23.50 | 1 | MicroFit 2x4,PH3.0 to 2 1X4,PH5.08, 20cm, 4A/pin,20AWG,R | ||
| 4 SATA | CBL-PWEX-1131-20 | 1 | MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS | |||
| 4 SATA | MCP-220-00147-0B • | 4 | Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design) | |||
| 6 NVME | BPN-NVME5-826N-B2B | $ 0.00 | 3 | 2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane | ||
| 6 NVME | CBL-MCIO-1218M5 • | 1 | MCIO x8 (STR to STR),18CM,85OHM,RoHS | |||
| 6 NVME | CBL-MCIO-1237M5 | $ 66.00 | 1 | MCIO x8 (STR to STR),37cm,85OHM,RoHS | ||
| 6 NVME | CBL-MCIO-1245M5 • | 1 | MCIO x8 (STR to STR),45cm,85OHM,RoHS | |||
| 6 NVME | CBL-PWEX-1131-20 | 1 | MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS | |||
| 6 NVME | CBL-PWEX-1137YB-30 | $ 1.00 | 1 | MicroHi(2x4 to 2x2Y),Ph3.0, 30/30cm,9.5A/p,16AWG,RoHS | ||
| 6 NVME | MCP-220-00167-0B • | 6 | Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS | |||
| GrandTwin I/O Module 2x10GbE | AOC-GTG-B2T-O | 1 | Grand Twin I/O card 2-Port 10GbE RJ45, Broadcom BCM57416, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node) | |||
| GrandTwin I/O Module 2x10GbE | AOC-GTG-I2T-O | 1 | Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node) | |||
| GrandTwin I/O Module 2x10GbE | AOC-GTG-I2TN-O | 1 | Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node) | |||
| GrandTwin I/O Module 2x25GbE | AOC-G25G-M2SN-O | 1 | Grand Twin I/O card 2-Port 25GbE SFP28, Mellanox CX-4 Lx EN, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node) | |||
| Power Supply | PWS-3K01A-BR • | 0-2 | 3000W Titanium Power Supply; LxWxH: 245.3x106.5x82.1mm, C20 inlet | |||
| SPI Capable TPM 2.0 | AOM-TPM-9672V-O • | 0-1 | AOM-TPM-9672V- TPM 2.0 with 10 pins SPI |
