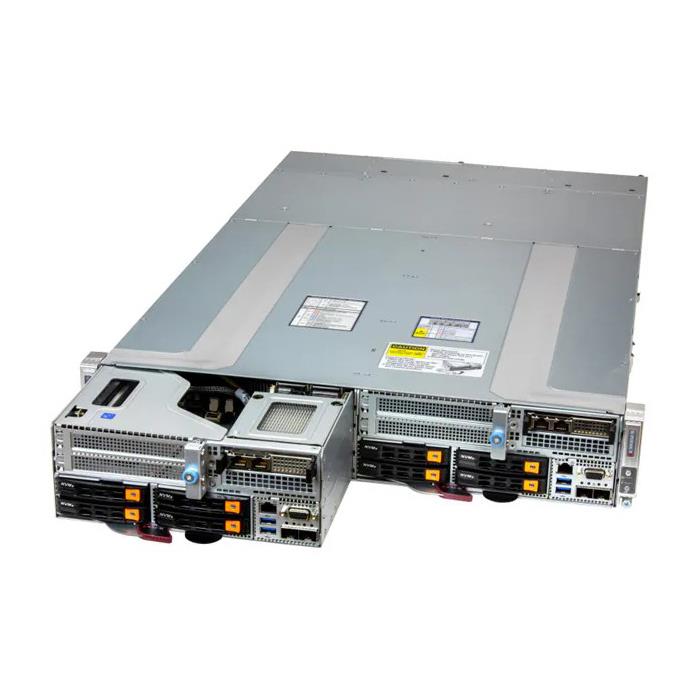

Supermicro AS-2116GT-DTNF GrandTwin A+ 2U Barebone Single AMD EPYC 9005 Series Processors

Supermicro AS-2116GT-DTNF GrandTwin A+ 2U Barebone Single AMD EPYC 9005 Series Processors

• HPC
• IoT Gateway
• Deep Learning/AI/Machine Learning Development
• Scale-Out Object Storage
• Cloud Gaming
• Telco Edge
• MEC (Multi-Access Edge Computing)
• Multi-Purpose CDN
• Cluster Node
• GPU Virtualization (VDI)
• HPC cluster computer nodes

Barebone 2U Rackmount SuperServer Two Hot-pluggable Systems Nodes, Each Node Supports: Single Processor For AMD EPYC 9005 Series Processors, Up To 192C/384T, Up to 512MB Cache. Supports Up To 500W TDP CPUs (Air Cooled). 1 Double-width Or 2 Single-width GPUs. 12 DIMM Slots Supporting Up To 3TB 6400MT/s ECC DDR5 RDIMM. Chipset: System on Chip, On-Board: M.2 NVMe. Drive Bays / Storage: 4 Front Hot Swap 2.5In PCIe 5.0 X4 NVMe/SATA Drive Bays, 2 M.2 PCIe 5.0 X4 NVMe Slots (M Key 22110 (Default) /2280). Network Connectivity: Via IO Module. Optional Configuration For Power Supply - (CSE-GT222BG-R2K21BP + Super H14SST-GE) - AS-2116GT-DTNF

To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 12 DIMMs are recommended per node). Minimum requirement is 1 CPU, 1 DIMM, 1 storage drive (M.2/SSD/HDD), and GT IO Module per node

1. Single Socket SP5 AMD EPYC™ 9005 Series Processors up to 500W with air cooling
2. Up to 12 DIMMs, 6400 MT/s 3TB DDR5 memory in 1DPC
3. Up to 2 PCIe 5.0 x16 FHHL slots or 1 PCIe 5.0 x16 FH/10.5"L Double Width slot Flexible networking with AIOM support GrandTwin front IO module offers additional value for networking expansion(10G/25G/200G)
4. Up to 4 front hot-swap 2.5" NVMe/SATA drive bays or up to 6 front hot-swap 2.5" NVMe drive bays *NVMe/SATA support requires additional parts from the optional parts list
5. 2 Redundant 2200W Titanium Level power supplies (Power supply full redundancy based on configuration and application load)

Extra Specifications for Supermicro AS-2116GT-DTNF GrandTwin A+ 2U Barebone Single AMD EPYC 9005 Series Processors

Product SKUs
Product SKUs	AS -2116GT-DTNF
Motherboard
Motherboard	Super H14SST-GE
Processor (per Node)
CPU	Single processor(s)
	AMD EPYC™ 9005 Series Processors
Core Count	Up to 192C/384T; Up to 512MB Cache
Note	Supports up to 500W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count	Up to 1 double-width or 2 single-width GPUs
System Memory (per Node)
Memory	View Memory Options
	Slot Count: 12 DIMM slots/1 Channels
	Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices (per Node)
Chipset	System on Chip
Network Connectivity	View AOC Options
Input / Output (per Node)
USB	2 USB 3.0 ports
Video	1 VGA port
System BIOS
BIOS Type	AMI 64MB Flash ROM
Management
Software	Supermicro Thin-Agent Service (TAS)
	Supermicro Server Manager (SSM)
	SuperCloud Composer®
	Super Diagnostics Offline (SDO)
	SuperServer Automation Assistant (SAA) New!
Security
Hardware	Trusted Platform Module (TPM) 2.0
	Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware
	Secure Boot
	Secure Firmware Updates
	Automatic Firmware Recovery
	Supply Chain Security: Remote Attestation
	Runtime BMC Protections
	System Lockdown
PC Health Monitoring
FAN	Status monitor for speed control
	Pulse Width Modulated (PWM) fan connectors
	Fans with tachometer monitoring
Temperature	Monitoring for CPU and chassis environment
CPU	Monitors for CPU Cores, Chipset Voltages, Memory.
Chassis
Form Factor	2U Rackmount
Model	CSE-GT222BG-R2K21BP
Dimensions and Weight
Height	3.46" (88 mm)
Width	17.67" (449 mm)
Depth	28" (711.2 mm)
Package	9.76" (H) x 24.65" (W) x 45.28" (D)
Weight	Gross Weight: 77.3 lbs (35.1 kg)
	Net Weight: 57.3 lbs (26 kg)
Available Color	Silver
Front Panel
LED	Power status LED
	HDD activity LED
	Network activity LEDs
	Universal Information (UID) LED
Buttons	Power On/Off button
	UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
Drive Bays / Storage (per Node)
Drive Bays Configuration	View NVMe Options
	Default: Total 4 bays 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe/SATA drive bays
	4 front hot-swap 2.5" PCIe 5.0 x4 NVMe/SATA drive bays
	Option A: Total 6 bays 6 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
	6 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
	(*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	View M.2 Options
	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280)
System Cooling
Fans	Up to 2x 17.6K RPM Heavy Duty 8cm Fan(s)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
	Operating Relative Humidity: 8% to 80% (non-condensing)
	Non-operating Relative Humidity: 8% to 90% (non-condensing)
	Operating Temperature: 10°C to 35°C (50°F to 95°F)

Name	Part Number	Price	Add to Cart	Qty.	Description
	4 NVME	BPN-NVME5-826N-B2B	$ 0.00		2	2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
	4 NVME	CBL-MCIO-1237M5	$ 66.00		1	MCIO x8 (STR to STR),37cm,85OHM,RoHS
4 NVME	CBL-MCIO-1245M5 •			2	MCIO x8 (STR to STR),45cm,85OHM,RoHS
4 NVME	CBL-MCIO-1340M5-1 •			1	MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS
4 NVME	CBL-PWEX-1131-20			1	MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
	4 NVME	CBL-PWEX-1137YB-30	$ 1.00		1	MicroHi(2x4 to 2x2Y),Ph3.0, 30/30cm,9.5A/p,16AWG,RoHS
4 NVME	MCP-220-00167-0B •			4	Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
	4 SATA	BPN-SAS3-826TQ-B2B	$ 74.50		2	2-Port 12Gbps Backplane for 2x2.5" SAS/SATA HDD/SSD
	4 SATA	CBL-MCIO-1217REQT4S2-85	$ 36.50		1	MCIO X8/RE to 4 SATA+2 SB, 17/10cm, 85Ohm, RoHS
4 SATA	CBL-MCIO-1245M5 •			1	MCIO x8 (STR to STR),45cm,85OHM,RoHS
4 SATA	CBL-MCIO-1340M5-1 •			1	MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS
	4 SATA	CBL-PWEX-0990Y-20	$ 23.50		1	MicroFit 2x4,PH3.0 to 2 1X4,PH5.08, 20cm, 4A/pin,20AWG,R
4 SATA	CBL-PWEX-1131-20			1	MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
4 SATA	MCP-220-00147-0B •			4	Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
	6 NVME	BPN-NVME5-826N-B2B	$ 0.00		3	2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
6 NVME	CBL-MCIO-1218M5 •			1	MCIO x8 (STR to STR),18CM,85OHM,RoHS
	6 NVME	CBL-MCIO-1237M5	$ 66.00		1	MCIO x8 (STR to STR),37cm,85OHM,RoHS
6 NVME	CBL-MCIO-1245M5 •			1	MCIO x8 (STR to STR),45cm,85OHM,RoHS
6 NVME	CBL-PWEX-1131-20			1	MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
	6 NVME	CBL-PWEX-1137YB-30	$ 1.00		1	MicroHi(2x4 to 2x2Y),Ph3.0, 30/30cm,9.5A/p,16AWG,RoHS
6 NVME	MCP-220-00167-0B •			6	Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
GrandTwin I/O Module 2x10GbE	AOC-GTG-B2T-O			1	Grand Twin I/O card 2-Port 10GbE RJ45, Broadcom BCM57416, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node)
GrandTwin I/O Module 2x10GbE	AOC-GTG-I2T-O			1	Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node)
GrandTwin I/O Module 2x10GbE	AOC-GTG-I2TN-O			1	Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node)
GrandTwin I/O Module 2x25GbE	AOC-G25G-M2SN-O			1	Grand Twin I/O card 2-Port 25GbE SFP28, Mellanox CX-4 Lx EN, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node)
Power Supply	PWS-3K01A-BR •			0-2	3000W Titanium Power Supply; LxWxH: 245.3x106.5x82.1mm, C20 inlet
SPI Capable TPM 2.0	AOM-TPM-9672V-O •			0-1	AOM-TPM-9672V- TPM 2.0 with 10 pins SPI

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
