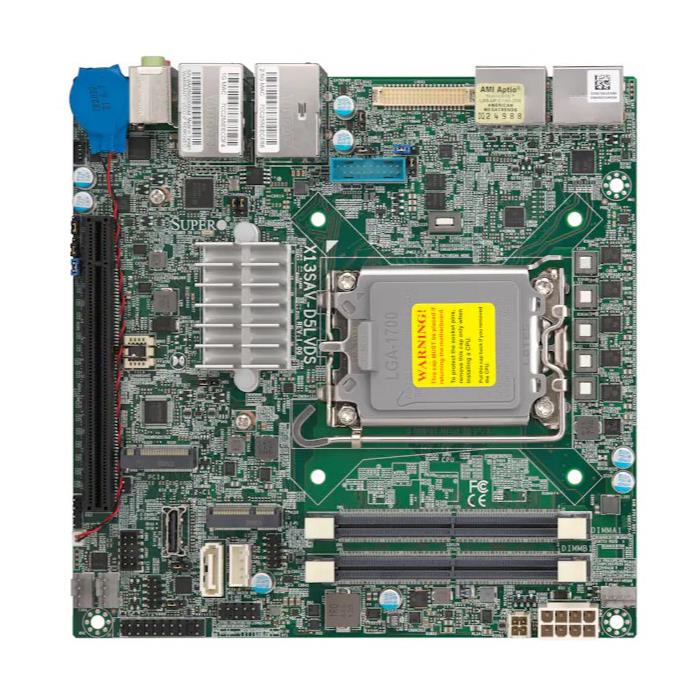

Supermicro X13SAV-D5LVDS Motherboard Mini-ITX Single Socket V0 Intel Core i9/Core i7/Core i5/Core i3 14th/13th/ 12th Generation Processor

Includes 2.5GbE and 1GbE LAN with Intel vPro support
Features two slots for up to 64GB of DDR5-5600 memory
Supports 14th/13th/12th Gen Intel Core processors up to 65W
Connects up to four independent displays via HDMI, DP, and LVDS

Motherboard Mini-ITX Support Single Socket V0 For Intel Core i9/Core i7/Core i5/Core i3 14th/13th/ 12th Generation / Pentium/Celeron Processor, Core Count: Up to 24C. Up to 64GB 5600MT/s non-ECC DDR5 SO-DIMM In 2 DIMM Slots. On-Board: SATA With RAID. LAN Ports: Single LAN With Intel I226LM Ethernet Controller, Single LAN With Intel Ethernet Controller I210-AT. Others: 1 M.2 PCIe 4.0 x4 NVMe Slot M-key 2280 (default), 4x USB Ports, 4 Independent Displays (2 DP Ports, 1 HDMI 2.0b Port, 1 HDMI 1.4a Port, LVDS), 1 COM Port (Header), Audio, 1 TPM Header & Chip Both. Includes 1 PCIe 5.0 x16 Slot - (MBD-X13SAV-D5LVDS)

Intel Core Processors Series 2 & 14th/13th/12th Gen Core i Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 65W TDP (**bios v5.0 or above)
Up to 64GB Unbuffered non-ECC SODIMM, DDR5-5600MHz, in 2 SODIMM slots
1 PCIe 5.0 x16 slot (16/NA or 8/8) 1 M.2 M-Key 2280 (PCIe 4.0 x4) 1 M.2 E-Key 2230 (PCIe 3.0 x1/USB)
Single 1 Gigabit LAN with Intel Ethernet i210-AT LAN controller, Single 2.5 Gigabit LAN with Intel Ethernet i226LM LAN controller [AMT/vPro]
Intel Q670E Controller for 5 SATA3 (1 header, 4 via Oculink) ports; RAID 0,1,5,10
4 Independent Displays (2 DP ports, 1 HDMI 2.0b port, 1 HDMI 1.4a port, LVDS)
Supports 12V DC power input
Onboard TPM2.0

Extra Specifications for Supermicro X13SAV-D5LVDS Motherboard Mini-ITX Single Socket V0 Intel Core i9/Core i7/Core i5/Core i3 14th/13th/ 12th Generation Processor

Main Specifications
Device Type	Motherboard
Form Factor	Mini-ITX
Dimensions (WxDxH)	6.7" x 6.7" (17.02cm x 17.02cm)
Processor
Compatible Processors	14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Compatible Socket	Single Socket V0
Cache/Core	Up to 24C
System Memory
Memory Capacity	Slot Count: 2 DIMM Slots, Max Memory (1DPC): Up to 64GB 5600MT/s non-ECC DDR5 SO-DIMM
Memory Voltage	1.1V
On-Board Devices
Chipset	Intel Q670E
SATA RAID	5 SATA (6Gbps) via Intel Q670E, RAID 0/1/5/10 support
Graphics	1 Intel UHD Graphics port
Network Controllers	Single LAN with Intel Ethernet Controller I210-AT
	Single LAN with Intel I226LM Ethernet Controller
Audio	ALC 888S HD Audio
TPM	1 TPM Header & Chip both
Input / Output
USB(s)	2 USB 2 port(s) (Header), 4 USB 3.2 Gen2 Type-A port(s) (Rear), 2 USB 3.2 Gen1 port(s) (Header)
Video Output	1 HDMI 2.0b port(s), 1 HDMI port(s), 1 LVDS port(s), 2 Display Port port(s)
Serial Port / Headers	1 COM port(s) (header)
Expansion / Connectivity
Expansion Slots Total (Free)	1 PCIe 5.0 x16 slot(s)
M.2	1 M.2 PCIe 4.0 x4 NVMe slot M-key 2280 (default)
System BIOS
BIOS Type	AMI UEFI
BIOS Features	SMBIOS 3.0 or later, UEFI 2.7, PCI FW 3.0, ACPI 6.1, RTC (Real Time Clock) Wakeup
Software
Software	Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New!
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage	+1.8V,+3.3V,3 -fan status,Chipset voltage,CPU temperature,HT,Monitors CPU Core Voltages,PCH temperature,System level control,System temperature,VBAT
LED	Power LED
Temperature	Thermal Control for 3 Fan Connectors
FAN	3x 4-pin fan headers (up to 3 fans), 3 fans with tachometer monitoring, Fan speed control, PWM fan speed control, System level control
Other Features	12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX power connector, Chassis intrusion header, M.2 NGFF connector, RoHS, System level control, WOL
Parts List
I/O Cables	1x CBL-0044L, 1x CBL-PWEX-1066, 1x CBL-SAST-0933
I/O Shield	1x MCP-260-00166-0N
QRG	MNL-2850-QRG

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
