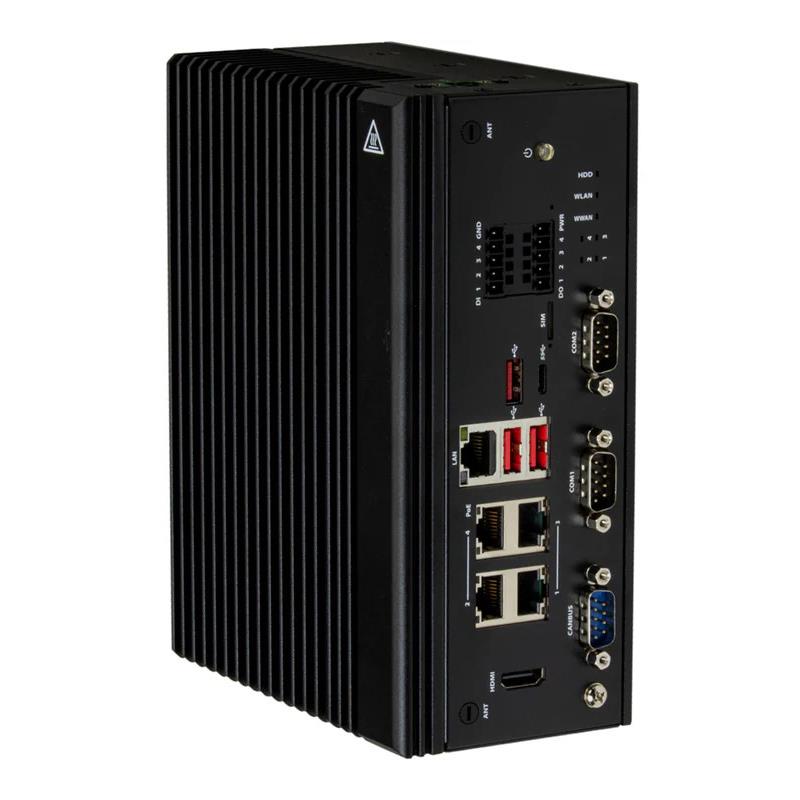

Ready to Ship - Supermicro ARS-E103-JONX-H2-01-G2 IoT SuperServer Powered By One Arm Cortex-A78AE v8.2 64-bit Processor

Ready to Ship - Supermicro ARS-E103-JONX-H2-01-G2 IoT SuperServer Powered By One Arm Cortex-A78AE v8.2 64-bit Processor

Barebone Fanless Embedded SuperServer, Embedded 8-core Arm Cortex-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3, Supports Up To 40W TDP CPUs (Air Cooled). Up to 16GB ECC LPDDR5X. Chipset: System on Chip, Drive Bays / Storage: 1 M.2 PCIe 4.0 x4 NVMe Slot M-key 2280 (Default). Network Connectivity: 3 RJ45 1GbE LAN Ports (Intel I210-IT), 1 RJ45 10GbE LAN Port (Marvell AQC113), 1 RJ45 1GbE LAN Port (SoC). Power Configurations: +9~36V DC Power Input - (CSE-E102L + Super AOM-JSOR-001) - ARS-E103-JONX-H2-01-G2

Components installed: CPU: 1x Arm Cortex-A78AE v8.2 64-bit, Onboard Memory: 16GB LPDDR5X, Storage: 1x 256GB M.2 NVMe SSD, NIC: 1x 10GbE RJ45, 4x 1GbE RJ45 (PoE Optional)

This product is sold only as a completely assembled system.

Support Super Mode 40W to boost AI inferencing performance
Fanless DIN Rail Mounted System
Jetson Orin NX Fanless Edge AI Inferencing System
8-core Arm Cortex -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
1024-core NVIDIA Ampere GPU with 32 Tensor Cores, Up to 157 TOPS
1 10G/1G LAN optional by Sku (10G: -H(2), 1G: -L(2))
4 1Gbe w/ POE or 2 x1Gbe w/ PoE+ (by AOM-POE-001 jumper setting)
1 M.2 B-key 3042/3052 (USB3.2, USB2.0) w/ dual nano-SIM
1 M.2 M-key 2280 (PCIe4.0 x4)
1 M.2 E-key 2230 (PCIe x1, USB2.0) w/ optional WiFi module&antenna kit
1 NVMe 2280 at M.2 M-Key
2-Pin Terminal Block, supporting DC 9-36V
Operating Temperature -25℃ to 60 ℃ (-13°F to 140°F) with 0.7m/s airflow and Industrial Grade peripherals

Extra Specifications for Ready to Ship - Supermicro ARS-E103-JONX-H2-01-G2 IoT SuperServer Powered By One Arm Cortex-A78AE v8.2 64-bit Processor

Main Specifications
Device Type	SuperServer - IoT
Form Factor	Fanless Embedded - CSE-E102L
Dimensions (WxDxH)	Height 3.15" (80 mm) x Width 7.28" (185 mm) x Depth 5.5" (140 mm)
Weight	Gross Weight: 4.3 lbs (1.95 kg) - Net Weight: 3.7 lbs (1.68 kg)
Enclosure Color	Black
Processor
Processor Installed	Arm Cortex-A78AE v8.2 64-bit CPU
Cache/Core	Up to 8C/8T, Up to 6MB Cache
Drive Bays
Hard Drive Installed	1x 256GB M.2 NVMe Solid-state Drive (SSD)
System Memory
Memory Type	Onboard 16GB LPDDR5X Memory
On-Board Devices
Chipset	System on Chip
Network Connectivity	1x 10GbE RJ45, 4x 1GbE RJ45 (PoE Optional)
Input / Output
LAN	3 RJ45 1 GbE LAN ports (Intel I210-IT), 1 RJ45 10 GbE LAN port (Marvell AQC113), 1 RJ45 1 GbE LAN port (SoC)
USB(s)	1 USB 3.2 Gen2 Type-C port(Front), 3 USB 3.2 Gen2 Type-A ports(Front)
Video Output	1 HDMI 2 port (Front)
Serial Port / Header	2 COM RS232/RS422/RS485 ports(Front)
Others	1 CANBus port, 1 4 DI/4 x DO (terminal block) port
Management
Power Configurations	+9~36V DC Power Input
Front Panel
Buttons	Power On/Off button
PC Health Monitoring
LED	Power status
Expansion / Connectivity
Expansion Slots Total (Free)	1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280 (default))
	1 M.2 PCIe 4.0 x1 slot (E-key 2230 (default), USB 2.0)
	1 M.2 slot (B-key 3052(default) / 3042, USB 3.0)
M.2	1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280 (default))
Miscellaneous
Environmental Compliance	RoHS Compliant
Environmental
Operating Environment	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
	Operating Relative Humidity: 8% to 80% (non-condensing)
	Non-operating Relative Humidity: 8% to 90% (non-condensing)
	Operating Temperature: -25°C to 60°C (-13°F to 140°F) with 0.7 m/s airflow

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Ready to Ship - Supermicro ARS-E103-JONX-H2-01-G2 IoT SuperServer Powered By One Arm Cortex-A78AE v8.2 64-bit Processor

$ 2,040.00$ 2,040.002040.0USD

$ 2,040.00
