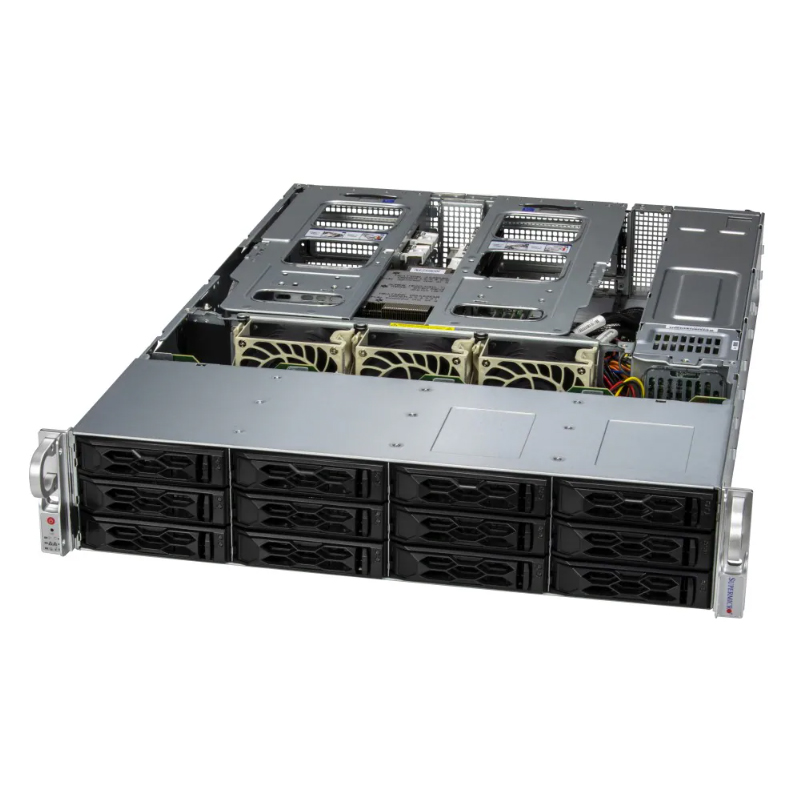

Ready to Ship - Supermicro AS-2015CS-TNR-01-G2 2U CloudDC A+ Server
Complete 2U Rackmount Server AS-2015CS-TNR-01-G2
Components installed: CPU: 1x AMD EPYC 9455P (48C/3.15GHz), Memory: 768GB DDR5-4800, Storage: 8x 24TB 3.5in SATA HDD, 2x 3.8TB U.2 NVMe SSD, 2x 240GB 2.5in SATA SSD, NIC: 1x dual 25GbE SFP28, Power: 2x 1200W Titanium Level
Key Applications
Web Server, Firewall Application
Data Center Optimized, Value IaaS
Cloud Computing, Compact Server
DNS & Gateway Servers, Firewall Application
CDN, Edge Nodes
Key Features
Single AMD EPYC 9004/9005 Series Processor (AMD EPYC 9005 series drop-in support requires board revision 2.x)
Support up to DDR5 12 DIMM slots (1DPC). speed up to 6400MT/s (Please check System Memory Section for details)
2 PCIe 5.0 x16 FHFL + 2 PCIe 5.0 x16 FHHL + 2 PCIe 5.0 x8 FHFL(Optional)
Dual AIOM (OCP 3.0) for networking, 1 dedicated IPMI LAN
12 Hot-swap 3.5"/2.5" SATA drive bays
Optional 4 Hot-swap NVMe or 12 SAS drives support via additional parts 2 M.2 PCIe 3.0 x2 NVMe slots
Dual 1200W Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Extra Specifications for Ready to Ship - Supermicro AS-2015CS-TNR-01-G2 2U CloudDC A+ Server
| Main Specifications | ||
| Device Type | CloudDC A+ Server | |
| Built-in Devices | Super H13SSW | |
| Form Factor | 2U Rackmount - CSE-LA26TS-R1K23AWP1 | |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (648 mm) | |
| Weight | Gross Weight: 59 lbs (26.76 kg) - Net Weight: 33 lbs (15 kg) | |
| Enclosure Color | Black front & sliver body | |
| Processor | ||
| Processor Installed | 1x AMD EPYC 9455P (48C/3.15GHz) | |
| System Memory | ||
| Memory Installed | 768GB DDR5-4800 | |
| Drive Bays | ||
| Hard Drive Installed | 8x 24TB 3.5in SATA HDD, 2x 3.8TB U.2 NVMe Solid-state Drive (SSD), 2x 240GB 2.5in SATA Solid-state Drive (SSD) | |
| On-Board Devices | ||
| Network Connectivity | 1x Dual 25GbE SFP28 | |
| Chipset | System-on-Chip | |
| Power Supply | ||
| Power Supply | 2x 1200W Titanium Level Power Supplies | |
| GPU | ||
| Max GPU Count | Up to 2 double-width or 4 single-width GPUs | |
| Supported GPU | NVIDIA PCIe: A100, A16, A2, A30, A40, L4, L40, L40S, RTX 6000 Ada Generation, RTX A4000 | |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | PCI-E | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) | |
| USB(s) | 2 USB 3.0 ports(rear) | |
| Video Output | 1 VGA port | |
| Serial Port / Headers | 1 COM port(Rear) | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| BIOS Features | ACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), OOB Management Package (SFT-OOB-LIC), SuperServer Automation Assistant (SAA) New | |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| PC Health Monitoring | ||
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support | |
| Front Panel | ||
| Buttons | Power On/Off, Universal Information (UID) | |
| LEDs | Drive activity, Network activity, Power status, Universal Information (UID) | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | Default: 2 PCIe 5.0 x16 FHFL slots, 2 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) | |
| Option A: 2 PCIe 5.0 x8 FHFL slots (Requires additional parts, please see the optional parts list for details) | ||
| M.2 | 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) | |
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: 12 front hot-swap 3.5"/2.5" SATA drive bays | |
| Option A: 4 front hot-swap 2.5" PCIe 5.0 NVMe drive bays | ||
| Option B: 12 front hot-swap 3.5"/2.5" SAS drive bays (NVMe/SAS support may require additional storage controller and/or cables) | ||
| System Cooling | ||
| Fans/Air Shroud | 1 Air Shroud | |
| Up to 3x 8cm heavy duty fans with optimal fan speed control | ||
| Environmental | ||
| Operating Environment | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
