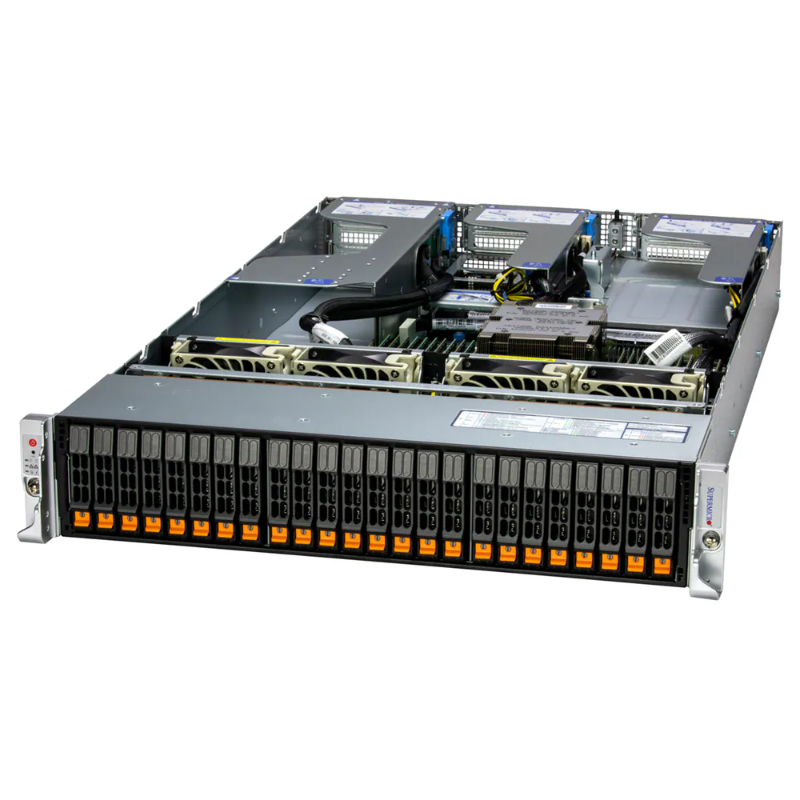

Ready to Ship - Supermicro AS-2115HS-TNR-01-G2 2U Hyper A+ SuperServer
Complete 2U Rackmount SuperServer AS-2115HS-TNR-01-G2
Components installed: CPU: 1x AMD EPYC 9655P (96C/2.6GHz), Memory: 1.5TB DDR5-4000, Storage: 2x 7.6TB U.2 NVMe SSD, NIC: 1x NVIDIA BlueField-3 B3220, Power: 2x 1600W Titanium Level
This product is sold only as a completely assembled system.
Key Applications
Virtualization
Software-defined Storage
AI Inference and Machine Learning
Cloud Computing
Enterprise Server
Key Features
Single AMD EPYC 9004/9005 Series Processor (AMD EPYC 9005 series drop-in support requires board revision 2.x)
Support up to DDR5 24 DIMM slots (2DPC) (Please check System Memory Section for details)
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots, or mix and match
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
24 Hot-swap 2.5" NVMe/SATA/SAS drive bays
2 M.2 PCIe 3.0 NVMe slots
Dual 1600W Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Extra Specifications for Ready to Ship - Supermicro AS-2115HS-TNR-01-G2 2U Hyper A+ SuperServer
| Main Specifications | ||
| Device Type | Hyper A+ Server | |
| Built-in Devices | Super H13SSH | |
| Form Factor | 2U Rackmount - CSE-HS219-R1K63P-A | |
| Dimensions (WxDxH) | Height 3.5" (88.9 mm) x Width 17.2" (437 mm) x Depth 29.9" (760 mm) | |
| Weight | Net Weight: 39 lbs (17.7 kg) - Gross Weight: 72 lbs (32.7 kg) | |
| Enclosure Color | Black Front & Silver Body | |
| Processor | ||
| Processor Installed | 1x AMD EPYC 9655P (96C/2.6GHz) | |
| System Memory | ||
| Memory Installed | 1.5TB DDR5-4000 | |
| Drive Bays | ||
| Hard Drive Installed | 2x 7.6TB U.2 NVMe Solid-state Drive (SSD) | |
| On-Board Devices | ||
| Network Connectivity | 1x NVIDIA BlueField-3 B3220 | |
| Chipset | System on Chip | |
| Power Supply | ||
| Power Supply | 2x 1600W Titanium Level Power Supplies | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) | |
| USB(s) | 2 USB 3.0 ports(rear) | |
| Video Output | 1 VGA port | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| BIOS Features | ACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), OOB Management Package (SFT-OOB-LIC), SuperServer Automation Assistant (SAA) New | |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| PC Health Monitoring | ||
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support | |
| Front Panel | ||
| Buttons | Power On/Off, UID button | |
| LEDs | HDD activity, LAN1 activity, Power status, System information | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | Default 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | |
| Option A 1 PCIe 5.0 x16 FHFL double-width slot, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | ||
| Option B 2 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | ||
| Option C 2 PCIe 5.0 x16 FHFL double-width slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | ||
| Option D 1 PCIe 5.0 x16 FHFL double-width slot, 2 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | ||
| Option E 4 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | ||
| Option F 4 PCIe 5.0 x16 FHFL double-width slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | ||
| Option G 3 PCIe 5.0 x16 FHFL double-width slots, 2 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | ||
| Option H 2 PCIe 5.0 x16 FHFL double-width slots, 4 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | ||
| Option I 1 PCIe 5.0 x16 FHFL double-width slot, 6 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) (Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options) | ||
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 22110(default)/2280) | |
| 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 22110(default)/2280) | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: 24 front hot-swap 2.5" NVMe/SAS/SATA drive bays (NVMe/SAS/SATA support may require additional storage controller and/or cables) | |
| System Cooling | ||
| Fans/Air Shroud | 1 Air Shroud | |
| Up to 4x 8cm heavy duty fans with optimal fan speed control | ||
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
