| Main Specifications |

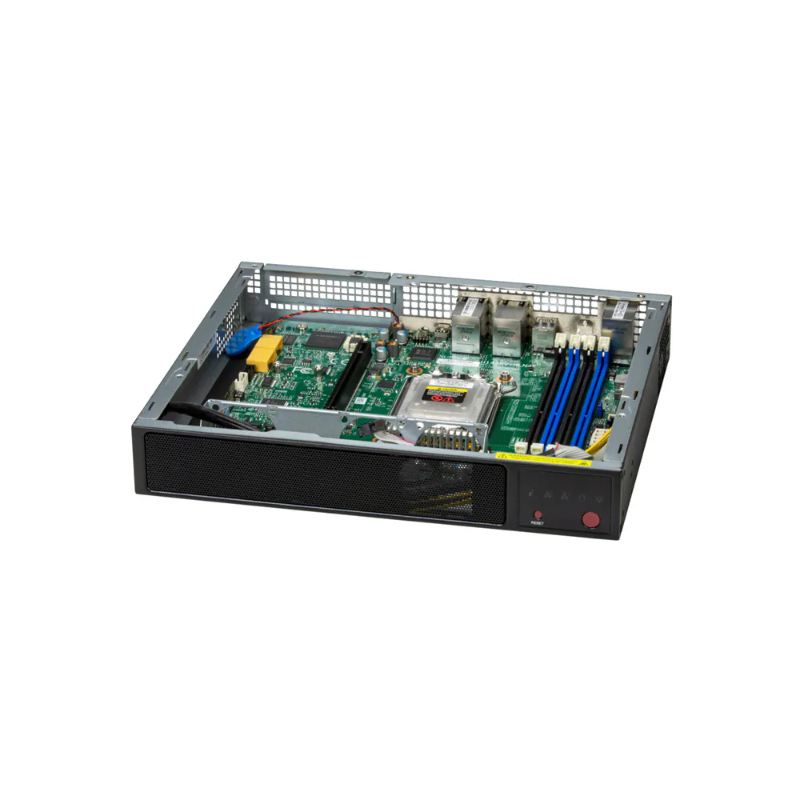

| Device Type | IoT A+ Server |
| Built-in Devices | Super H14SRV-HLN4F |
| Form Factor | Fan-based Embedded - CSE-E300 |
| Dimensions (WxDxH) | Height 1.69" (43 mm) x Width 10.43" (264.8 mm) x Depth 8.89" (225.8 mm) |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) - Net Weight: 3.7 lbs (1.6 kg) |
| Enclosure Color | Black |
| Processor |
| Processor Installed | Powered By One AMD EPYC 4545P Processor |
| System Memory |
| Memory Installed | 32GB DDR5-5600 |
| Drive Bays |
| Hard Drive Installed | 1x 960GB M.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | 1GbE Networking |
| Chipset | AMD B650 |
| Power Supply |
| Power Supply | 180W Power Adapter |
| Input / Output |
| LAN | 4 RJ45 1 GbE LAN ports (Intel I350-AM4), 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600) |
| USB(s) | 2 USB 3.2 Gen2 Type-A ports (Rear), 1 USB 3.2 Gen1 Type-A port (Rear), 1 USB 3.2 Gen1 Type-C port (Rear) |
| Video Output | 1 HDMI 2.1 port (Rear), 1 Mini-DP port (Rear) |
| TPM | 1 TPM header, 1 TPM Onboard/port 80 |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | ACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9 |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| FAN | Status monitor for speed control |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | HDD Status, LAN1 activity, LAN2 activity, Power status, WIFI activity |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 (in x16) LP slot (Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options) |
| M.2 | 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280) |
| 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 22110) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 1 internal fixed 2.5" SATA drive bay (SATA support may require additional storage controller and/or cables) |
| System Cooling |
| Fans/Air Shroud | Up to 1 CPU heatsink with 70x70x15mm Fan(s) |
| Up to 2x 4-PIN PWM 40x40x28mm Fan(s) |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow |
