- Ready to Ship - Supermicro AS-E300-14GR-01-G2 IoT A+ SuperServer

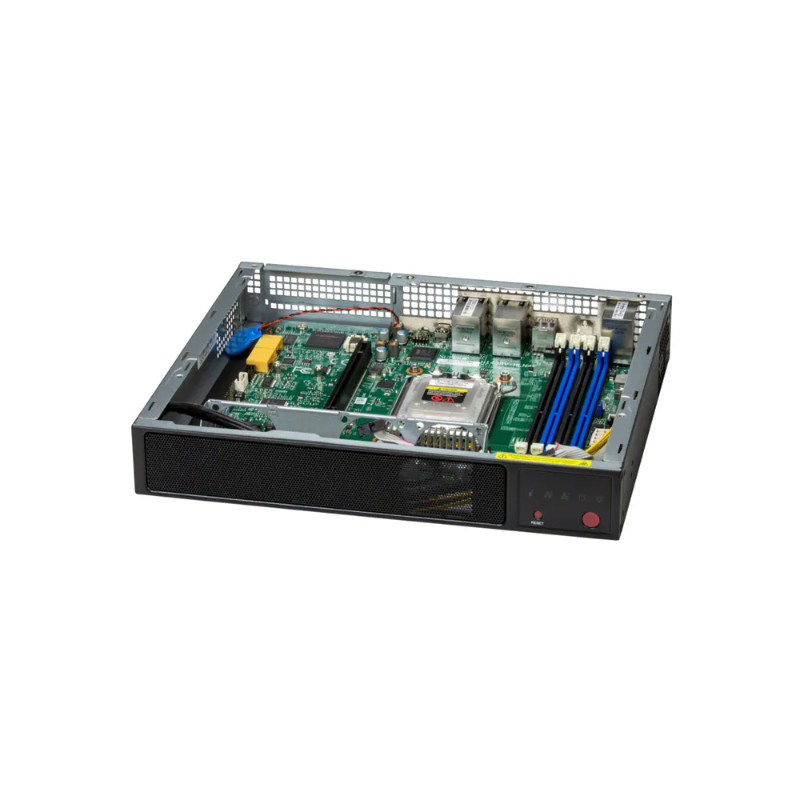

Ready to Ship - Supermicro AS-E300-14GR-01-G2 IoT A+ SuperServer
Complete Mini Tower Server AS-E300-14GR-01-G2
Components installed: CPU: 1x AMD EPYC 4545P (16C/3.0GHz), Memory: 32GB DDR5-5600, Storage: 1x 960GB M.2 NVMe Solid-state Drive (SSD), Networking: 1GbE Networking, Power: 180W Power Adapter
This product is sold only as a completely assembled system.
Single AMD EPYC 4004/4005 Series Processors up to 65W with air cooling
Support for PCIe GPU accelerator cards
Up to 4 DIMMs supporting up to 192GB DDR5-5600 UDIMM
Up to 1 PCIe 5.0 x16 LP slots
Up to 1 internal fixed 2.5" SATA drive bays
Fan-based Embedded chassis with 8.89" (225.8mm) depth
Extra Specifications for Ready to Ship - Supermicro AS-E300-14GR-01-G2 IoT A+ SuperServer
| Main Specifications | ||
| Device Type | IoT A+ Server | |
| Built-in Devices | Super H14SRV-HLN4F | |
| Form Factor | Fan-based Embedded - CSE-E300 | |
| Dimensions (WxDxH) | Height 1.69" (43 mm) x Width 10.43" (264.8 mm) x Depth 8.89" (225.8 mm) | |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) - Net Weight: 3.7 lbs (1.6 kg) | |
| Enclosure Color | Black | |
| Processor | ||
| Processor Installed | Powered By One AMD EPYC 4545P Processor | |
| System Memory | ||
| Memory Installed | 32GB DDR5-5600 | |
| Drive Bays | ||
| Hard Drive Installed | 1x 960GB M.2 NVMe Solid-state Drive (SSD) | |
| On-Board Devices | ||
| Network Connectivity | 1GbE Networking | |
| Chipset | AMD B650 | |
| Power Supply | ||
| Power Supply | 180W Power Adapter | |
| Input / Output | ||
| LAN | 4 RJ45 1 GbE LAN ports (Intel I350-AM4), 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600) | |
| USB(s) | 2 USB 3.2 Gen2 Type-A ports (Rear), 1 USB 3.2 Gen1 Type-A port (Rear), 1 USB 3.2 Gen1 Type-C port (Rear) | |
| Video Output | 1 HDMI 2.1 port (Rear), 1 Mini-DP port (Rear) | |
| TPM | 1 TPM header, 1 TPM Onboard/port 80 | |
| System BIOS | ||
| BIOS Type | AMI 32MB UEFI | |
| BIOS Features | ACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9 | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| PC Health Monitoring | ||
| FAN | Status monitor for speed control | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | HDD Status, LAN1 activity, LAN2 activity, Power status, WIFI activity | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 (in x16) LP slot (Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options) | |
| M.2 | 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280) | |
| 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 22110) | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: 1 internal fixed 2.5" SATA drive bay (SATA support may require additional storage controller and/or cables) | |
| System Cooling | ||
| Fans/Air Shroud | Up to 1 CPU heatsink with 70x70x15mm Fan(s) | |
| Up to 2x 4-PIN PWM 40x40x28mm Fan(s) | ||
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow | ||
