- Ready to Ship - Supermicro ASG-2015S-E1CR24L-01-G2 Storage

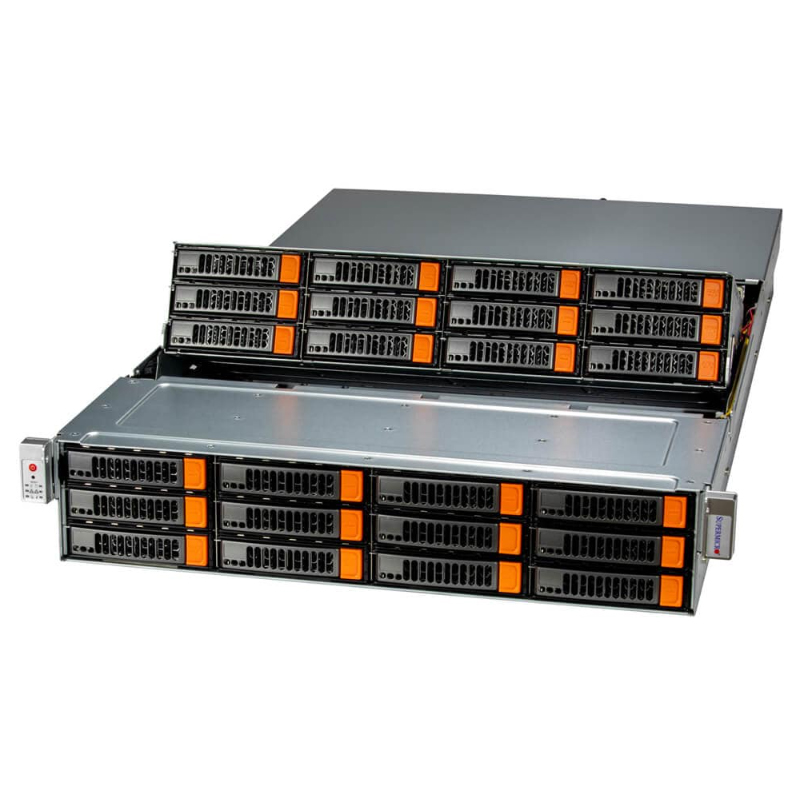

Ready to Ship - Supermicro ASG-2015S-E1CR24L-01-G2 Storage
Complete Server 2U Rackmount ASG-2015S-E1CR24L-01-G2
Components installed: CPU: 1x AMD EPYC 9334 (32C/2.7GHz), Memory: 512GB DDR5-4800, Storage: 24x 22TB 3.5in SAS3 HDD, 1x 960GB 2.5in SATA SSD, NIC: 1x dual 100GbE QSFP28, Power: 1x 1600W Titanium Level, Storage Controller: Broadcom 3808 HBA
This product is sold only as a completely assembled system.
Key Applications
Enterprise Server
SCSI SANHPC, Data Center
Database Processing & Storage
Corporate Database
Appliance Optimized Storage Building Blocks
Key Features
Single Socket SP5 AMD EPYC 9004/9005 Processor, up to 290W TDP (AMD EPYC 9005 series drop-in support requires board revision 2.x)
Support up to DDR5 12 DIMM slots (1DPC)
Dedicated 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant), Up to 6 PCIe 5.0 slots (slot #2 populated by 3808 controller)
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
Extra Specifications for Ready to Ship - Supermicro ASG-2015S-E1CR24L-01-G2 Storage
| Main Specifications | ||
| Device Type | Storage A+ Server | |
| Built-in Devices | Super H13SSW | |
| Form Factor | 2U Rackmount - CSE-826S3TS-R1K62P1 | |
| Dimensions (WxDxH) | Height 3.5" x Width 17.2" x Depth 34" | |
| Weight | Gross Weight: 74.5 lbs (33.79 kg) - Net Weight: 52 lbs (23.59 kg) | |
| Enclosure Color | Silver | |
| Processor | ||
| Processor Installed | 1x AMD EPYC 9334 (32C/2.7GHz) | |
| System Memory | ||
| Memory Installed | 512GB DDR5-4800 | |
| Drive Bays | ||
| Hard Drive Installed | Storage: 24x 22TB 3.5in SAS3 HDD, 1x 960GB 2.5in SATA Solid-state Drive (SSD) | |
| On-Board Devices | ||
| Network Connectivity | 1x dual 100GbE QSFP28 | |
| SATA/SAS | Broadcom 3808 HBA | |
| Chipset | System on Chip | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) | |
| USB(s) | 2 USB 3.0 ports(rear) | |
| Video Output | 1 VGA port | |
| Power Supply | ||
| Power Supply | 1x 1600W Titanium Level | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator, Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Network activity, Power status, SSD activity, System information (overheat/UID) | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | Default: 4 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x8 FHHL slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) | |
| Option A: 3 PCIe 5.0 x16 FHHL slots, 1 PCIe 5.0 x8 FHHL slot, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) | ||
| Option B: 2 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) | ||
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110) | |
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: 12 front hot-swap 3.5" SAS/SATA drive bays, 12 top-loading hot-swap 3.5" SAS/SATA drive bays, 2 rear hot-swap 2.5" SATA drive bays | |
| Option A: 12 front hot-swap 3.5" SAS/SATA drive bays, 12 top-loading hot-swap 3.5" SAS/SATA drive bays, 2 rear hot-swap 2.5" SATA drive bays, 2 rear hot-swap 2.5" NVMe drive bays | ||
| Option B: 12 front hot-swap 3.5" SAS/SATA drive bays, 12 top-loading hot-swap 3.5" SAS/SATA drive bays, 4 rear hot-swap 2.5" NVMe drive bays, 2 rear hot-swap 2.5" SATA drive bays | ||
| System Cooling | ||
| Fans/Air Shroud | 1 Air Shroud | |
| Up to 4 Heavy Duty 8cm Fan(s) | ||
| Environmental | ||
| Operating Environment | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| RoHS Compliant | ||
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
