| Main Specifications |

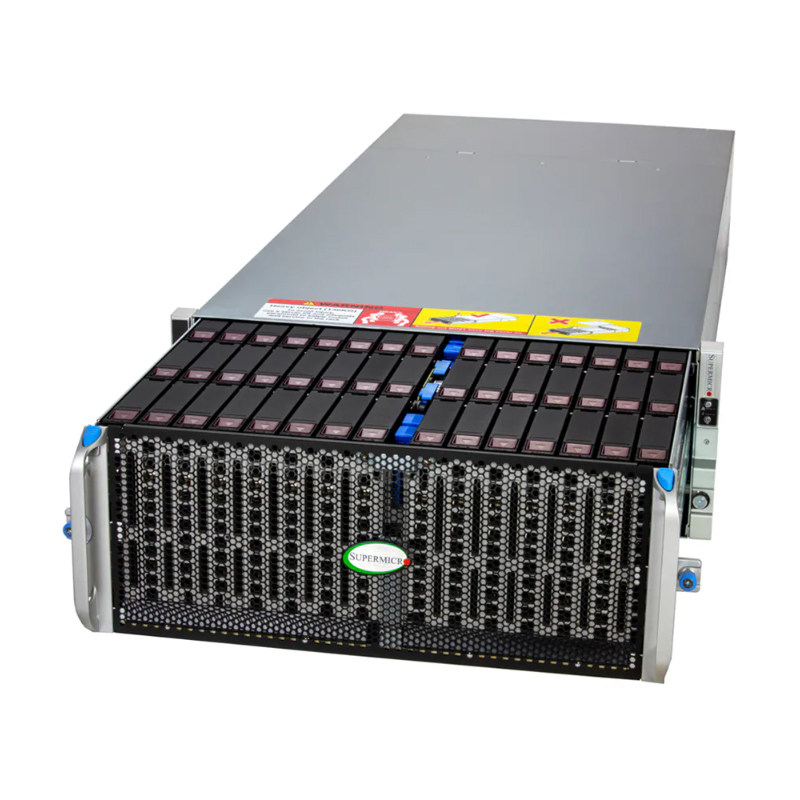

| Device Type | Storage SuperServer |
| Built-in Devices | Super X14SBSC |
| Form Factor | 4U Rackmount - CSE-947STS-R2K05P |
| Dimensions (WxDxH) | Height 6.96" (177 mm) x Width 17.6" (447 mm) x Depth 32" (813 mm) |
| Weight | Gross Weight: 170 lbs (77.11 kg) - Net Weight: 107 lbs (48.53 kg) |
| Processor |
| Processor Installed | Powered By One Intel Xeon 6730P Processor |
| System Memory |
| Memory Installed | 512GB DDR5 5200MHz |
| Drive Bays |
| Hard Drive Installed | 60x 24TB 3.5" SATA Hard Drive, 2x 960GB U.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | 1x Dual 25GbE SFP28 |
| SATA/SAS | 1x SAS Controller - HW RAID via Broadcom 3916 Installed |
| Chipset | System on Chip |
| Power Supply |
| Power Supply | 2x 2000W Titanium Level |
| Input / Output |
| SATA/NVMe | NVMe; RAID 0/1 support |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 3.0 ports(rear) |
| Video Output | 1 VGA port |
| TPM | 1 TPM Onboard TPM & TPM Header |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Miscellaneous |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 1 PCIe 5.0 x8 (in x8) HHHL slot, 3 PCIe 5.0 x16 (in x16) HHHL slots |
| 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 60 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays |
| Option A: 4 rear hot-swap 2.5" PCIe 4.0 x4 NVMe* drive bays |
| Option B: 2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables) |
| System Cooling |
| Fans/Air Shroud | Up to 6 Heavy Duty 8cm Fan(s) |
| Up to 1 Counter Rotating 6cm Fan(s) |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
