- Ready to Ship - Supermicro SYS-111AD-HN2-01-G2 1U IoT SuperServer

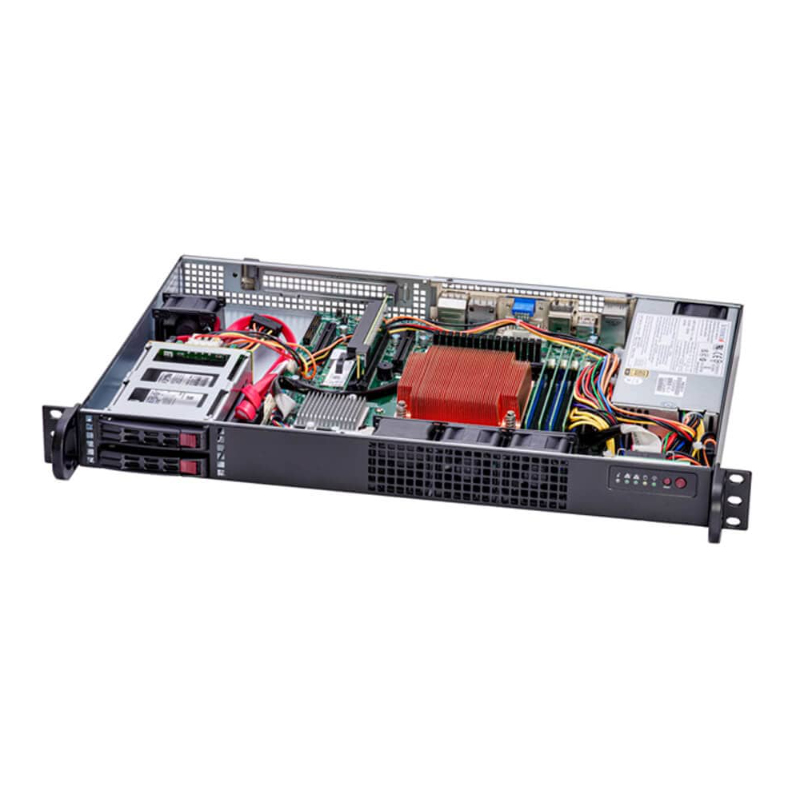

Ready to Ship - Supermicro SYS-111AD-HN2-01-G2 1U IoT SuperServer
Complete 1U Rackmount Server SYS-111AD-HN2-01-G2
Components installed: CPU: 1x Intel Core i7-12700E (12C/2.1GHz), Memory: 64GB DDR5-5600, Storage: 2x 1.92TB 2.5in SATA SSD, NIC: 1x dual 2.5GbE RJ45, Power: 1x 200W Gold Level
This product is sold only as a completely assembled system.
Single Socket LGA-1700 support 14th/13th/12th Gen Core i9/i7/i5/i3/Pentium/Celeron Processor,up to 80W
4x DIMMs, Up to 128GB Unbuffered ECC/non-ECC UDIMM
1x PCIe Gen5 x16 HHHL slot
2 Hot-swap 2.5" SATA3 drive bays
4x 40x28mm 4-pin PWM fans
200W Low Noise AC-DC power supply with PFC
Rear-access I/O: 2x 2.5GBased-T, 1x Dedicated IPMI, 4x USB3.2, 1x VGA, 1x DVI-D, 2x DP,1x HDMI 2.0b
Extra Specifications for Ready to Ship - Supermicro SYS-111AD-HN2-01-G2 1U IoT SuperServer
| Main Specifications | ||
| Device Type | IoT SuperServer | |
| Built-in Devices | Super X13SAZ-F | |
| Form Factor | 1U Rackmount - CSE-510FT-203B | |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 11.3" (287 mm) | |
| Weight | Gross Weight: 14.1 lbs (6.4 kg) - Net Weight: 10 lbs (4.54 kg) | |
| Enclosure Color | Black | |
| Processor | ||
| Processor Installed | Powered By One Intel Core i7-12700E Processor | |
| System Memory | ||
| Memory Type | 64GB DDR5-5600 | |
| Drive Bays | ||
| Hard Drive Installed | 2x 1.92TB 2.5in SATA Solid-state Drive (SSD) | |
| On-Board Devices | ||
| SATA/SAS | SATA (6Gbps) | |
| Chipset | Intel R680E | |
| Network Connectivity | 2 RJ45 2.5GbE with Intel I225-LM | |
| Audio | Line Out, Mic in | |
| Input / Output | ||
| LAN | 2 RJ45 2.5 GbE LAN ports | |
| USB(s) | 4 ports | |
| Video Output | 1 VGA port, 1 HDMI 2.0b port, 1 DVI-D port, 2 DisplayPort 1.4 ports | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Miscellaneous | ||
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, System Lockdown | |
| PC Health Monitoring | ||
| Temperature | Platform Environment Control Interface (PECI) 3.0 support, SuperDoctor 5, System resource alert via SuperDoctor5 | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 HHHL slot(s) | |
| M.2 | 1 M.2 NVMe slot (M-key 2280/22110) | |
| Drive Bays / Storage | ||
| Drive Bays Configuration | 2 front hot-swap 2.5" SATA drive bays | |
| System Cooling | ||
| Fans/Air Shroud | 1 Air Shroud | |
| Up to 4x 4-PIN PWM 40x28mm Fan(s) | ||
| Power Supply | ||
| Power Supply | 1x 200W Gold Level (91%) power supply | |
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 40°C (32°F to 104°F) | ||
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
