- Ready to Ship - Supermicro SYS-212GB-FNR-01-G2 2U IoT Powered By One Intel Xeon 6731P Processor

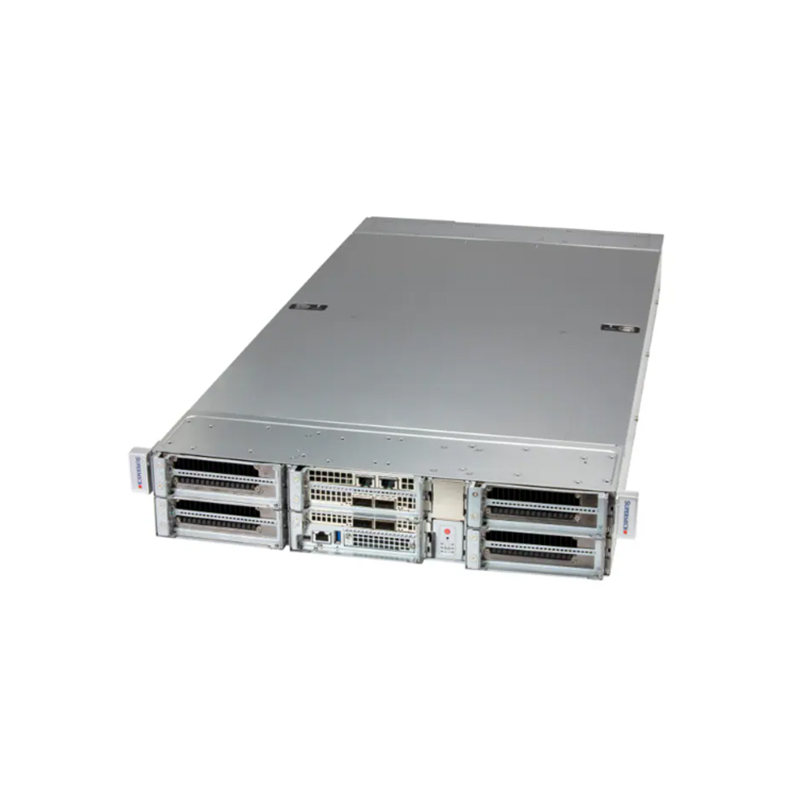

Ready to Ship - Supermicro SYS-212GB-FNR-01-G2 2U IoT Powered By One Intel Xeon 6731P Processor
Complete Server 2U Rackmount SYS-212GB-FNR
Components installed:
CPU: 1x Intel xeon 6731P (32C/2.5GHz),
GPU: 2x NVIDIA RTx PRO 6000 Server Edition, 96GB GDDR7,
Memory: 512GB DDR56400,
Storage: 2x 3.84TB E1.S SSD, M.2: 1x 960GB M.2 NVMe SSD,
NIC: 1x Dual 10GbE RJ45,
Power: 2x 2700W Titanium Level
Key Applications
Scientific Research
Model analysis
High Performance Computing (HPC)
Research Lab
Financial Services
Edge AI
Key Features
Single Socket E2 (LGA-4710) Intel Xeon 6700-series processors with P-cores up to 350W with air cooling
Support for up to 4 double-width PCIe GPU accelerator cards
Up to 16 DIMMs supporting up to 1TB DDR5-6400 in 1DPC or 2TB DDR5-5200 in 2DPC or 512GB DDR5-8000 in 1DPC
Up to 4 PCIe 5.0 x16 FHFL double-width + 3 PCIe 5.0 x16 FHFL slots
Up to 4 rear hot-swap E1.S NVMe drive bays
Two 2700W Titanium Level power supplies
Extra Specifications for Ready to Ship - Supermicro SYS-212GB-FNR-01-G2 2U IoT Powered By One Intel Xeon 6731P Processor
| Main Specifications | ||
| Device Type | GPU SuperServer | |
| Built-in Devices | Super X14SBGM | |
| Form Factor | 2U Rackmount - CSE-MG204-R000NDFP | |
| Dimensions (WxDxH) | Height 3.43" (87 mm) x Width 17.3" (438.4 mm) x Depth 35.43" (900 mm) | |
| Weight | Gross Weight: 84 lbs (38 kg) - Net Weight: 66 lbs (30 kg) | |
| Enclosure Color | Silver | |
| Processor | ||
| Processor Installed | 1x Intel Xeon 6731P (32C/2.5GHz) | |
| System Memory | ||
| Memory Installed | 512GB DDR5 6400MHz | |
| GPU | ||
| GPU Installed | 2x NVIDIA RTx PRO 6000 Server Edition, 96GB GDDR7 | |
| Drive Bays | ||
| Hard Drive Installed | 2x 3.84TB E1.S Solid-state Drive (SSD), M.2: 1x 960GB M.2 NVMe Solid-state Drive (SSD) | |
| On-Board Devices | ||
| Network Card Installed | 1x Dual 10GbE RJ45 | |
| Power Supply | ||
| Power Supply | 2x 2700W Redundant Titanium Level (96%) power supplies | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) | |
| USB(s) | 1 USB 3.0 Type-A port(Rear) | |
| Video Output | 1 mini-DP port(s) | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash EEPROM | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| PC Health Monitoring | ||
| CPU | 8+4 Phase-switching voltage regulator, Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | HDD activity | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | Default: 4 PCIe 5.0 x16 FHFL double-width slots, 3 PCIe 5.0 x16 FHFL slots | |
| 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: 4 rear hot-swap E1.S PCIe 5.0 x4 NVMe drive bays | |
| 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) | ||
| System Cooling | ||
| Fans/Air Shroud | 5x 8cm heavy duty fans with optimal fan speed control | |
| Environmental | ||
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) | ||
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
