- Ready to Ship - Supermicro SYS-422GA-NRT-01-G2 4U GPU SuperServer

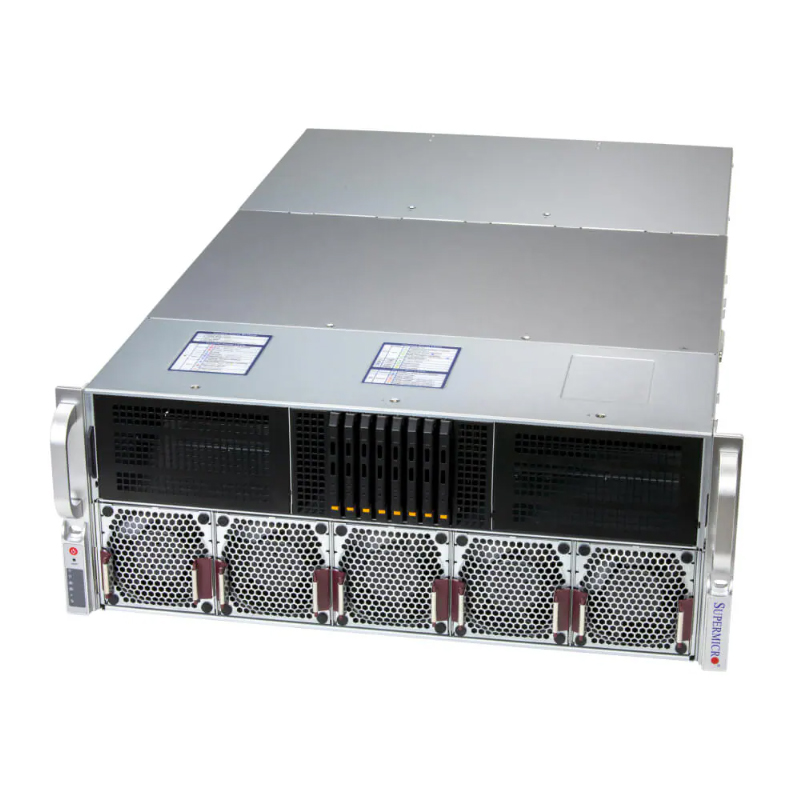

Ready to Ship - Supermicro SYS-422GA-NRT-01-G2 4U GPU SuperServer
Complete 4U Rackmount SuperServer SYS-422GA-NRT-01-G2
Components included: CPU: 2x Intel xeon 6960P (72 Cores/2.7GHz), GPU: 4x NVIDIA RTx PRO 6000 Server Edition, Memory: 16x 64GB DDR5 6400MHz, Storage: 2x 3.84TB U.2 NVMe SSD, 1x 960GB NVMe M.2 SSD, NIC: 1x Dual 10GbE RJ45, Power: 4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies
This product is sold only as a completely assembled system.
Key Applications
High Performance Computing
VDIAI/Deep Learning Training
Media/Video Streaming
Cloud Gaming
Animation and Modeling
Design & Visualization
3D Rendering
Diagnostic Imaging
Key Features
Dual Socket BR (LGA-7529) Intel Xeon 6900 series processors with P-cores up to 500W with air cooling
Support up to 8 double-width 600W PCIe GPU accelerator cards at 35ºC
Support 8 NVIDIA RTX PRO 6000 Blackwell Server Edition+ 5 NVIDIA BlueField-3 at 35ºC
Up to 24 DIMMs supporting up to 6TB DDR5-6400 in 1DPC or 6TB DDR5-8800 in 1DPC
Flexible networking with up to AIOM slots
Up to 13 PCIe 5.0 x16 FHFL slots
Extra Specifications for Ready to Ship - Supermicro SYS-422GA-NRT-01-G2 4U GPU SuperServer
| Main Specifications | ||
| Device Type | GPU SuperServer | |
| Built-in Devices | Super X14DBG-AP | |
| Form Factor | 4U Rackmount - CSE-418G3TS-R6K40P | |
| Dimensions (WxDxH) | Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 29" (737 mm) | |
| Weight | Gross Weight: 100 lbs (45.3 kg) - Net Weight: 65.5 lbs (29.7 kg) | |
| Enclosure Color | Black Front & Silver Body | |
| Processor | ||
| Processor Installed | Two Intel Xeon Scalable 6960P Processor (Installed) With 72-Core/144 Thread (2.70GHz) | |
| GPU | ||
| GPU Installed | 4x NVIDIA RTx PRO 6000 Server Edition | |
| System Memory | ||
| Memory Installed | 16x 64GB DDR5 6400MHz | |
| Drive Bays | ||
| Hard Drive Installed | 2x 3.84TB U.2 NVMe Solid-state Drive (SSD), 1x 960GB NVMe M.2 Solid-state Drive (SSD) | |
| On-Board Devices | ||
| Network Card Installed | 1x Dual 10GbE RJ45 | |
| Chipset | System on Chip | |
| Power Supply | ||
| Power Supply | 4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies | |
| Input / Output | ||
| USB(s) | 2 USB 3.0 Type-A ports(Rear) | |
| Video Output | 1 VGA port | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| PC Health Monitoring | ||
| CPU | 8+4 Phase-switching voltage regulator, Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 13 PCIe 5.0 x16 FHFL slots | |
| 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key) | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | 2 M.2 NVMe slots (M-key) | |
| Option A: 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays | ||
| Option B: 8 front hot-swap E3.L 1T PCIe 5.0 x4 NVMe drive bays | ||
| Option C: 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays | ||
| System Cooling | ||
| Fans/Air Shroud | 1 Air Shroud | |
| 10x 8cm heavy duty fans with optimal fan speed control | ||
| Environmental | ||
| Operating Environment | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
