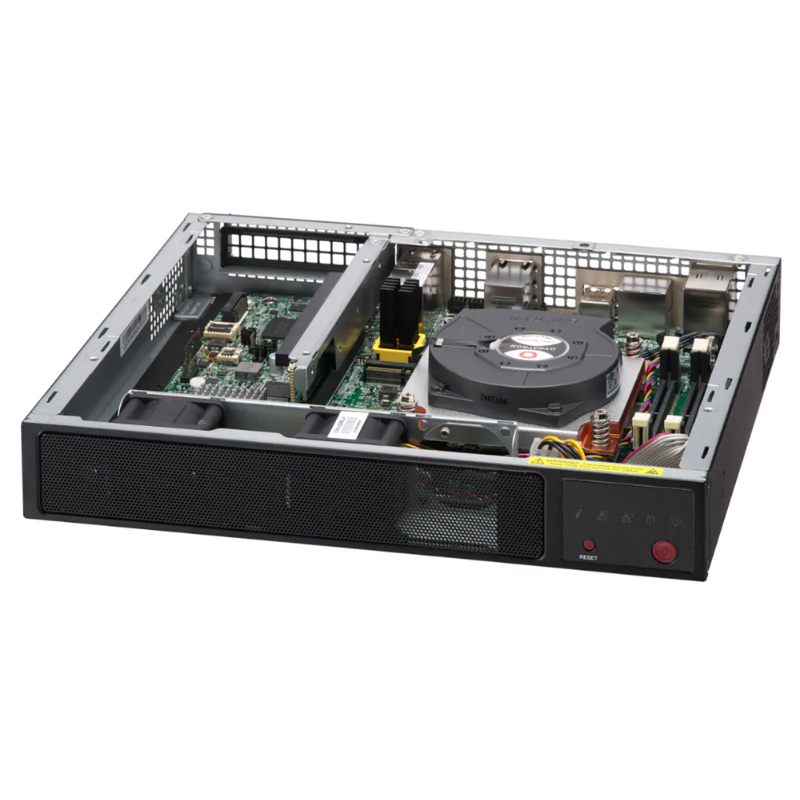

Ready to Ship - Supermicro SYS-E300-14AR-01-G2 Mini-1U Embedded SuperServer
Complete Mini-1U Embedded SuperServer SYS-E300-14AR-01-G2
Components installed: CPU: 1x Intel Core Ultra U5 245 (14C/3.0GHz), Memory: 32GB DDR5 5600MHz, M.2: 1X 960GB M.2 NVMe SSD, NIC: 2x 2.5GbE RJ45, 2x 10GbE RJ45, 1x Dedicated IPMI Port, Power: 180W Power Adapter
This product is sold only as a completely assembled system.
Key Applications
Healthcare
Surveillance Security Server
AI Inference
Digital Signage / PoS
Key Features
Single Intel Core Ultra 9/7/5 Series 2 Processor up to 65W with air cooling
Support the low-profile PCIe GPU cards
Up to 2 ECC/Non-ECC SODIMMs supporting up to 96GB with DDR5-6400MT/s
2 RJ45 2.5GbE + 2 RJ45 10GbE LAN ports
1 PCIe 5.0 x16 LP slots
1 internal fixed 2.5" SATA drive bays
Extra Specifications for Ready to Ship - Supermicro SYS-E300-14AR-01-G2 Mini-1U Embedded SuperServer
| Main Specifications | ||
| Device Type | Embedded SuperServer | |
| Built-in Devices | Super X14SAV-TLN4F | |
| Form Factor | Fan-based Embedded - CSE-E300 | |
| Dimensions (WxDxH) | Height 1.69" (43 mm) x Width 10.43" (264.8 mm) x Depth 8.89" (225.8 mm) | |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) - Net Weight: 3.7 lbs (1.6 kg) | |
| Enclosure Color | Black | |
| Processor | ||
| Processor Installed | 1x Intel Core Ultra U5 245 (14C/3.0GHz) | |
| System Memory | ||
| Memory Installed | 32GB DDR5 5600Mhz | |
| Drive Bays | ||
| Hard Drive Installed | 1x 960GB M.2 NVMe Solid-state Drive (SSD) | |
| On-Board Devices | ||
| Network Card Installed | 2x 2.5GbE RJ45, 2x 10GbE RJ45, 1x Dedicated IPMI Port | |
| Chipset | Intel W880 | |
| Power Supply | ||
| Power Supply | 180W Power Adapter | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port, 2 RJ45 10 GbE LAN ports (Intel X550), 2 RJ45 2.5 GbE LAN ports (Intel I226-LM) | |
| USB(s) | 4 USB 3.2 Gen2 Type-A ports(Rear) | |
| Video Output | 1 VGA port(Rear), 1 DisplayPort port(Rear), 1 HDMI port(Rear) | |
| TPM | 1 TPM header, 1 TPM Onboard/port 80 | |
| System BIOS | ||
| BIOS Type | AMI 32MB UEFI | |
| BIOS Features | ACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9 | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | HDD Status, LAN1 activity, LAN2 activity, Power status, WIFI activity | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | Default: 1 PCIe 5.0 x16 (in x16) LP slot | |
| 1 M.2 PCIe 4.0 x2 slot (B-key 3052) | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: 1 internal fixed 2.5" SATA* drive bay (SATA support may require additional storage controller and/or cables) | |
| 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280) | ||
| System Cooling | ||
| Fans/Air Shroud | Up to 1 CPU heatsink with Φ80x15mm Fan, Up to 2x 4-PIN PWM 40x40x28mm Fans | |
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow | ||
