| Product SKUs |
| Product SKUs | SSG-522B-ACR12L |
| Motherboard |

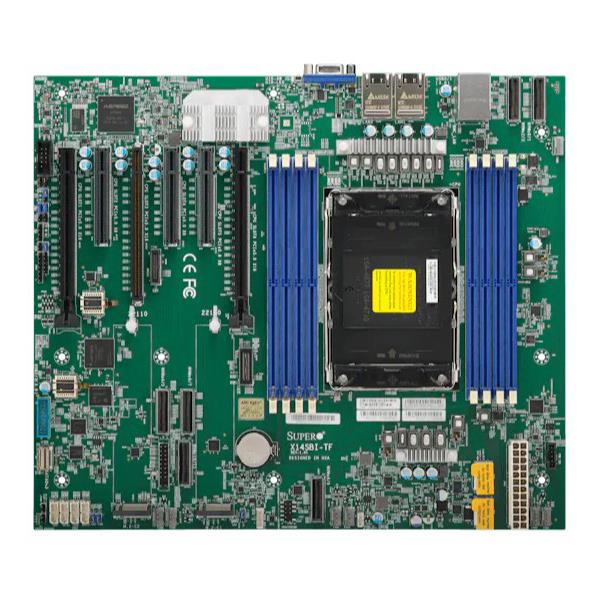

| Motherboard | Super X14SBI-TF |
| Processor |
| CPU | Single Socket E2 (LGA-4710) |
| Intel® Xeon® Prozessoren der Serie 6700/6500 mit P-Kernen oder Prozessoren der Serie 6700 mit E-Kernen |
| Core Count | P-cores: Up to 86C/172T; Up to 336MB Cache |
| E-cores: Up to 144C/144T; Up to 108MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| System Memory |
| Memory | Slot Count: 8 DIMM slots/8 Channels |
| Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Speicheroptionen anzeigen |
| Memory Voltage | 1.1V |
| On-Board Devices |
| SATA | 4 x SlimSAS |
| SAS | SAS (12Gbps) via Broadcom® 3816; (IT mode) |
| NVMe | NVMe; RAID 0/1 support(Intel® VROC RAID key required) |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X550 |
| AOC-Optionen anzeigen |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) |
| 2 RJ45 10 GbE LAN ports (Intel® X550) |
| USB | 2 USB 3.2 Gen1 ports(Header) |
| 2 USB 3.2 Gen1 ports(Rear) |
| Video | 1 VGA port(Rear) |
| Serial | 1 COM port(header) |
| TPM | 1 TPM header |
| System BIOS |
| BIOS Type | AMI 64MB UEFI |
| BIOS Features | ACPI 6.5 |
| UEFI 2.9 |
| SMBIOS 3.7 or later |
| Management |
| Software | Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Superdiagnose Offline (SDO) |
| Supermicro Thin-Agent-Dienst (TAS) |
| SuperServer Automation Assistant (SAA) Neu! |
| Power configurations | ACPI/APM Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 8 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI |

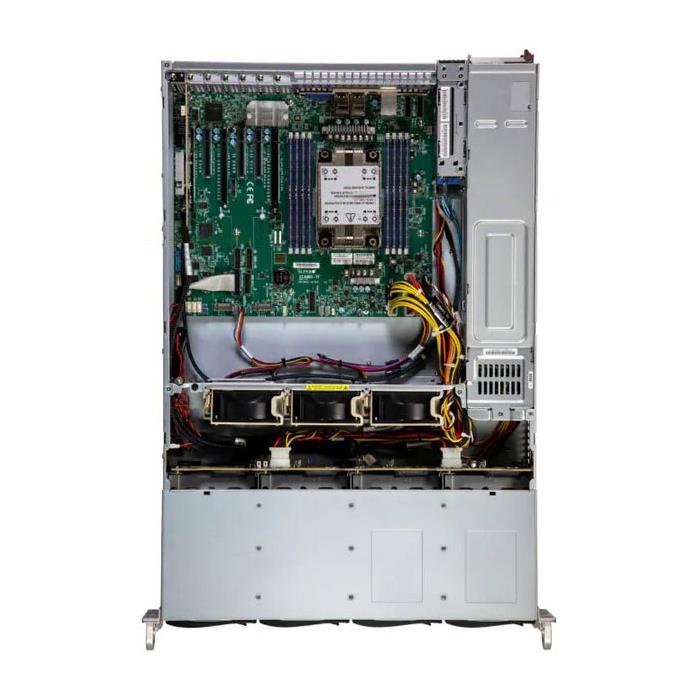

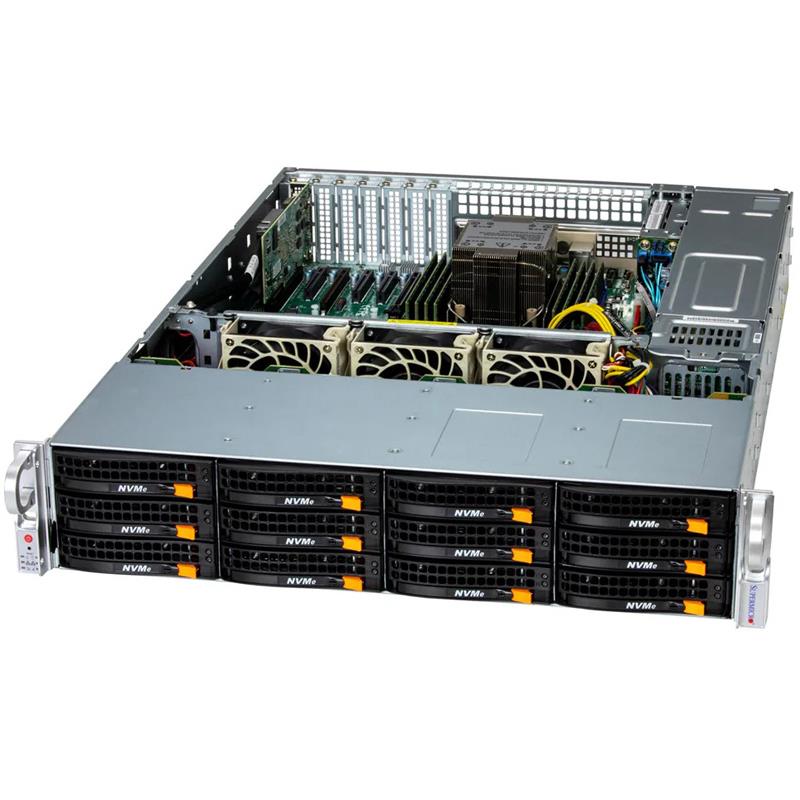

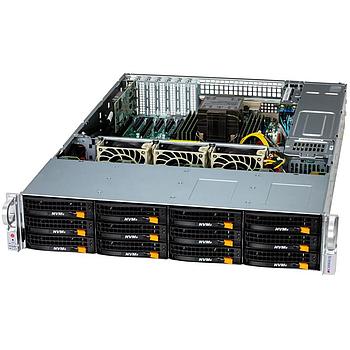

| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-826BTS-R1K23LPBP2 |
| Dimensions and Weight |
| Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 25.6" (650 mm) |
| Package | 11.5" (H) x 26.5" (W) x 34" (D) |
| Weight | Gross Weight: 58 lbs (26.3 kg) |
| Net Weight: 34 lbs (15.4 kg) |
| Available Color | Black |
| Front Panel |
| LED | Power status |
| System information |
| Device Activity |
| LAN 1 Activity |
| LAN 2 Activity |
| Power Failure LED |
| Buttons | System Reset |
| Power On/Off |

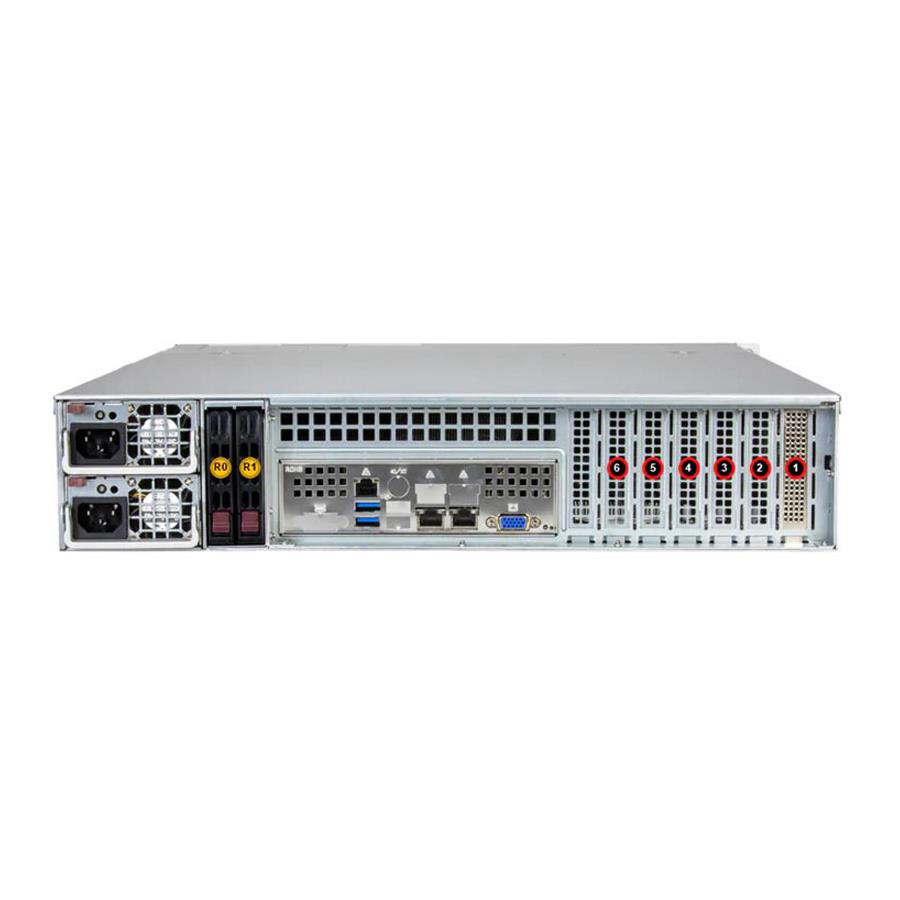

| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | (*NVMe support may require additional storage controller and/or cables) |

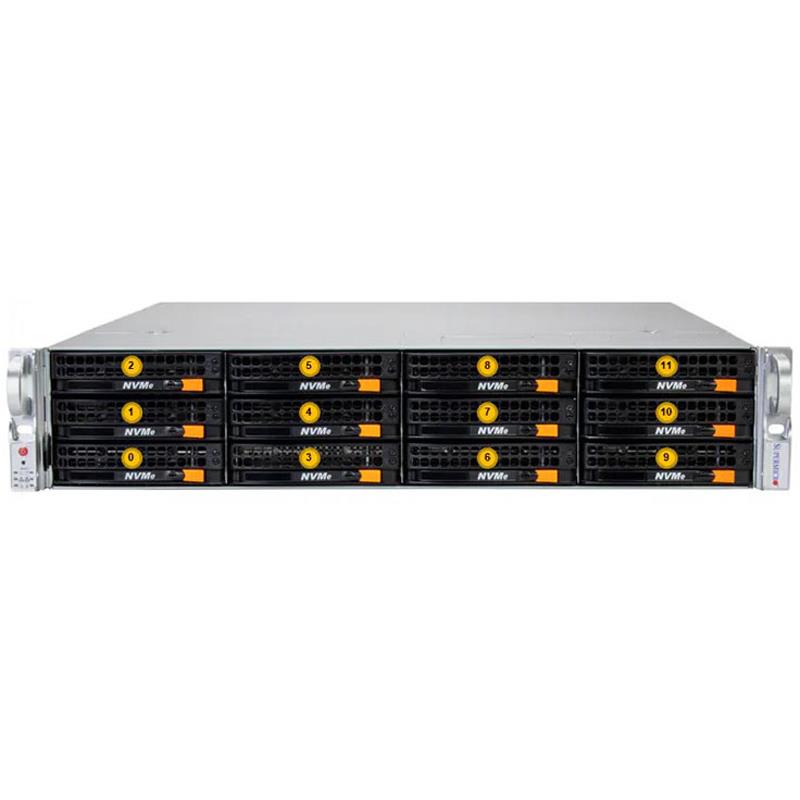

| Default: Total 14 bays 12 front hot-swap 3.5" NVMe*/SAS/SATA drive bays 2 rear hot-swap 2.5" NVMe*/SAS/SATA drive bays |
| 12 front hot-swap 3.5" NVMe*/SAS/SATA drive bays |
| 2 rear hot-swap 2.5" NVMe*/SAS/SATA drive bays |
| Antriebsoptionen anzeigen |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)) |
| M.2 Optionen anzeigen |
| System Cooling |
| Fans | 3 Heavy Duty PWM 80x80x38mm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
