| Product SKUs |

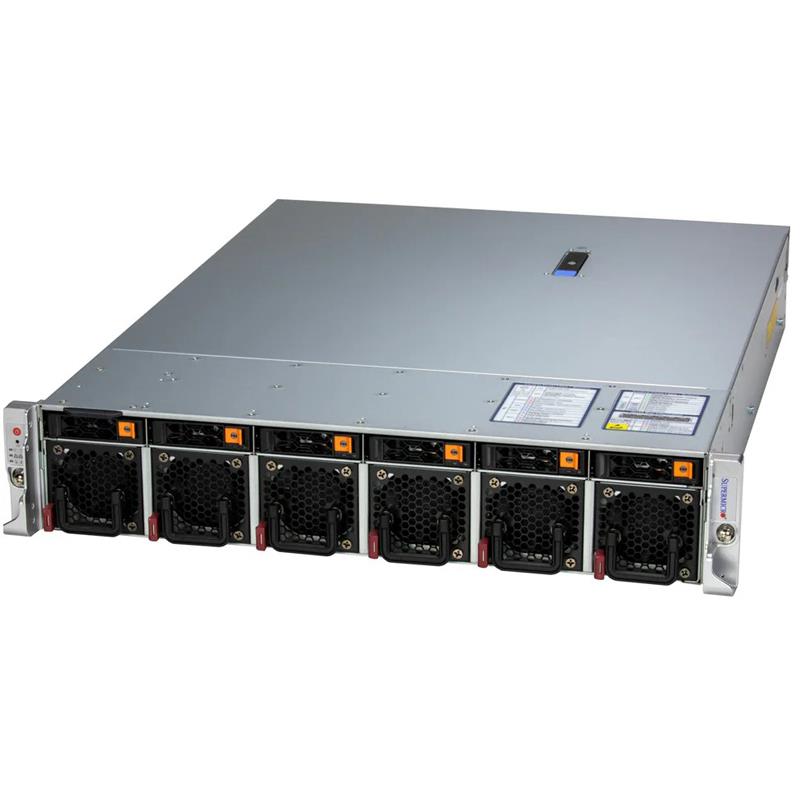

| Product SKUs | SYS-222HE-TN |
| Motherboard |
| Motherboard | Super X14DBM-SP |
| Processor |
| CPU | Dual Socket E2 (LGA-4710) |
| Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Core Count | E-cores: Up to 144C/144T; Up to 108MB Cache per CPU |
| P-cores: Up to 86C/172T; Up to 336MB Cache per CPU |
| Note | Supports up to 330W TDP CPUs (Air Cooled) |
| Supports up to 330W TDP CPUs (Liquid Cooled) |
| GPU |
| Max GPU Count | Up to 3 double-width or 4 single-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 32 DIMM slots |
| Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| NVMe | View NVMe Options |
| NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| View AOC Options |
| View AIOM Options |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-HE211-R000NFP |
| Dimensions and Weight |
| Height | 3.5" (88.9 mm) |
| Width | 17.2" (436.88 mm) |
| Depth | 22.6" (574 mm) |
| Package | 9.7" (H) x 23.5" (W) x 36.9" (D) |
| Weight | Gross Weight: 47.4 lbs (21.5 kg) |
| Net Weight: 34.4 lbs (15.6 kg) |
| Available Color | Silver |
| Front Panel |
| LED | Power status LED |
| HDD activity LED |
| LAN1 activity |
| LAN2 activity |
| System information |
| Power Fail |
| Buttons | UID button |
| Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| CXL Support |
| M.2 |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) |
| View NVMe Options |
| Default: Total 6 bays 6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays |
| 6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays |
| Option A: Total 8 bays 6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays 2 rear hot-swap 2.5" NVMe* drive bays |
| 2 rear hot-swap 2.5" NVMe* drive bays |
| Option B: Total 10 bays 6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays 4 rear hot-swap 2.5" NVMe* drive bays |
| 4 rear hot-swap 2.5" NVMe* drive bays |
| M.2 | View M.2 Options |
| 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110/25110) |
| System Cooling |
| Fans | 6 counter-rotating 60x60x56mm Fan(s) |
| Air Shroud | 4 Air Shrouds |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
