| Processor |
| Core Count | Up to 24C/32T; Up to 36MB Cache |
| CPU | 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor |
| Single Socket V0 |
| Note | Supports up to 65W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | 1 single-width GPU |
| System Memory |
| Memory Voltage | 1.1V |
| Memory | Slot Count: 2 DIMM slots |
| Max Memory (2DPC): Up to 64GB 5600MT/s non-ECC DDR5 SO-DIMM |
| 檢視記憶體選項 |
| On-Board Devices |
| Chipset | Intel® Q670E |
| Network Connectivity | 檢視 AOC 選項 |

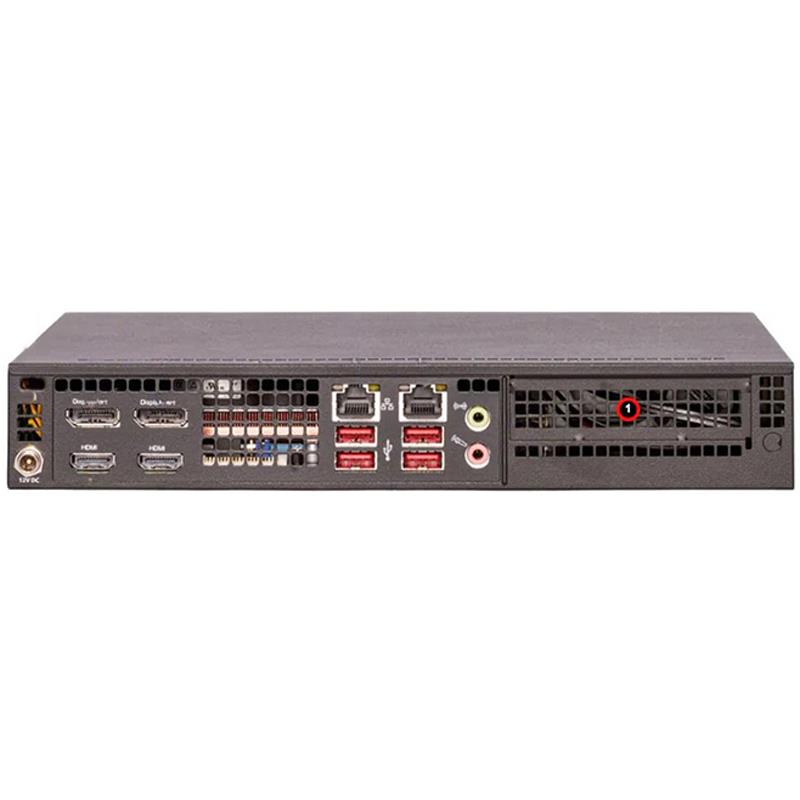

| Input / Output |
| LAN | 1 RJ45 1 GbE LAN port (Intel® I210-AT) |
| 1 RJ45 2.5 GbE LAN port (Intel® I226-LM) |
| Audio | Line Out |
| Mic in |
| USB | 4 USB 3.2 Gen2 Type-A ports(Rear) |
| Video | 1 HDMI 1.4 port(Rear) |
| 2 DisplayPort ports(Rear) |
| 1 HDMI 2.0b port(Rear) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash |
| BIOS Features | ACPI 6.0 |
| Plug and Play (PnP) |
| RTC (Real Time Clock) Wakeup |
| SPI dual/quad speed support |
| Management |
| Software | Supermicro 5 (SD5) |
| 超級診斷離線模式 (SDO) |
| SuperServer (SAA) 新推出！ |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |

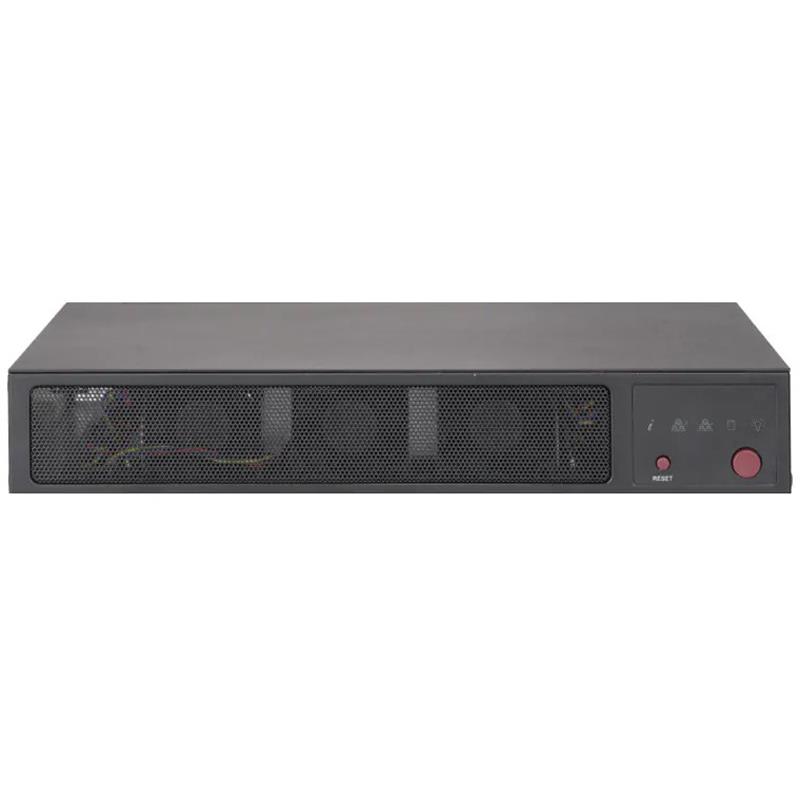

| Front Panel |
| Buttons | Power On/Off |
| LED | LAN1 activity |
| LAN2 activity |
| Power status |
| HDD Status |
| WIFI activity |
| Product SKUs |
| Product SKUs | SYS-E300-13AD5 |
| Motherboard |

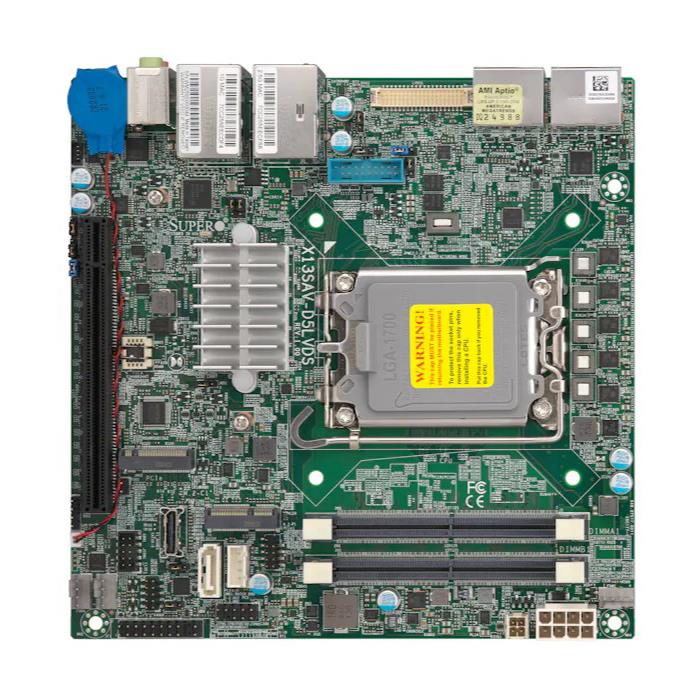

| Motherboard | 超級 X13SAV-D5LVDS |
| Chassis |
| Form Factor | Fan-based Embedded |
| Model | CSE-E300 |
| Dimensions and Weight |
| Height | 1.69" (43 mm) |
| Width | 10.43" (264.8 mm) |
| Depth | 8.89" (225.8 mm) |
| Package | 10.87" (H) x 15" (W) x 5.59" (D) |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) |
| Net Weight: 3.7 lbs (1.6 kg) |
| Palletized Packing (W x H x L) | 54.33" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm) |
| Available Color | Black |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| Drive Bays / Storage |
| Drive Bays Configuration | (*SATA support may require additional storage controller and/or cables) |
| Default: Total 1 bay 1 internal fixed 2.5" SATA* drive bay |
| 1 internal fixed 2.5" SATA* drive bay |
| M.2 | 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280) |
| 檢視 M.2 選項 |

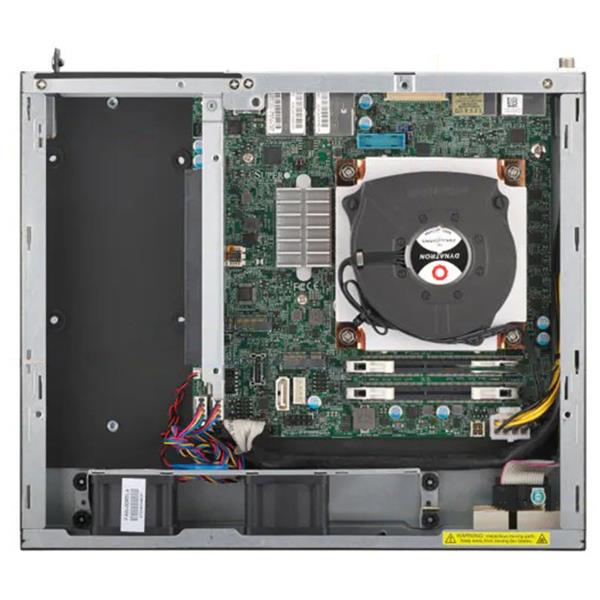

| System Cooling |
| Fans | Up to 1 CPU heatsink with Φ80x15mm Fan(s) |
| Up to 2x 4-PIN PWM 40x40x28mm Fan(s) |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow |
