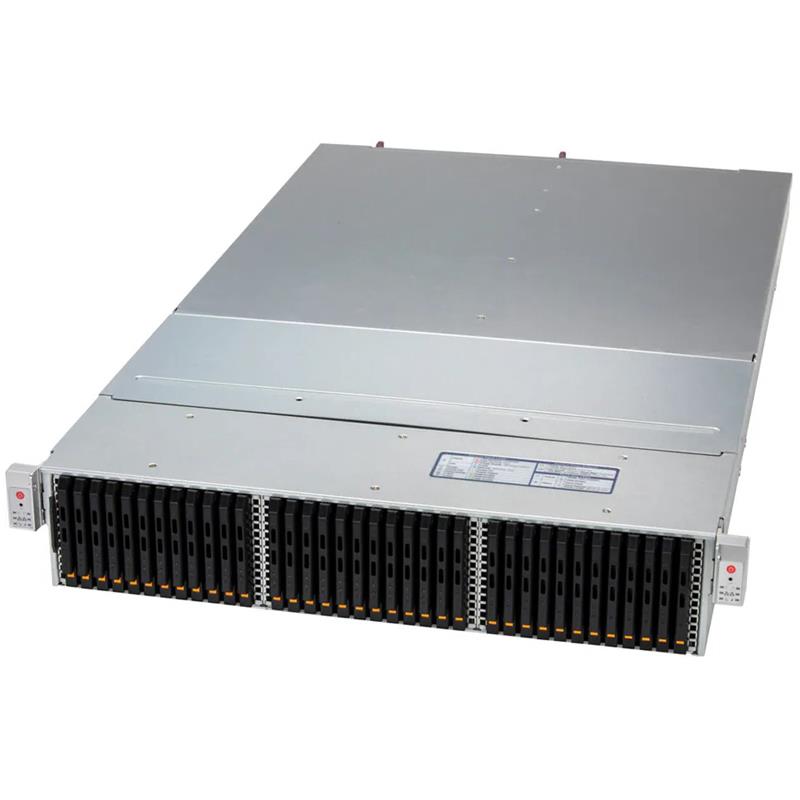

Supermicro SSG-229J-5BE36JBF 2U Rackmount With Two hot-pluggable Systems (Nodes) 2x 2000W Power Supplies

• Big Data Analytics and AI
• HPC and Big Data
• Data Center Enterprise Applications
• Artificial Intelligence
• Low Power, Cost effective
• NVMe Over Fabrics Solution
• Large Language Model (LLM)

Barebone 2U Rackmount SuperServer With Two Hot-pluggable Systems Nodes, Each Node Supports: 36 Front Hot-swap E3.S 1T NVMe Drive Bays, 2 M.2 PCIe 5.0 x4 NVMe Slots (M-key 2280/22110). Chipset: System on Chip, Network Connectivity: 2 QSFP+ 200GbE With NVIDIA BlueField-3, 1 RJ45 1GbE With Realtek. 3 PCIe 5.0 x16 FHFL Expansion Slots With GPU/DPU Support For LLM Applications. 2x 2000W Power Supplies - (CSE-229ES-R000RCNDP + Super BPN-NVME5-229PL-J) - SSG-229J-5BE36JBF

1. IPMI management with dedicated LAN BF3 management with shared LAN
2. Up to 3 PCIe 5.0 x16 FHFL slots Up to 2 DPU and 1 GPU per node
3. Up to 36 front hot-swap E3.S 1T NVMe drive bays
4. 2 Redundant 2000W Titanium Level power supplies

Extra Specifications for Supermicro SSG-229J-5BE36JBF 2U Rackmount With Two hot-pluggable Systems (Nodes) 2x 2000W Power Supplies

Product SKUs
Product SKUs	SSG-229J-5BE36JBF
Motherboard
Motherboard
On-Board Devices (per Node)
Chipset	System on Chip
Network Connectivity	View AOC Options
	2 QSFP+ 200GbE with NVIDIA® BlueField®-3
	1 RJ45 1GbE with Realtek
Management
Software	Supermicro Thin-Agent Service (TAS)
	Supermicro Update Manager (SUM)
	Supermicro Server Manager (SSM)
	SuperCloud Composer®
	Super Diagnostics Offline (SDO)
	SuperServer Automation Assistant (SAA) New!
	Supermicro SuperDoctor® 5 (SD5)
Chassis
Form Factor	2U Rackmount
Model	CSE-229ES-R000RCNDP
Dimensions and Weight
Height	3.47" (88 mm)
Width	17.7" (449.4 mm)
Depth	30" (762 mm)
Package	9.64" (H) x 26.37" (W) x 43.3" (D)
Weight	Gross Weight: 94.8 lbs (43 kg)
	Net Weight: 71.88 lbs (32.6 kg)
Available Color	Silver
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
Drive Bays / Storage (per Node)
Drive Bays Configuration	View NVMe Options
	Default: Total 36 bays 36 front hot-swap E3.S 1T NVMe drive bays
	36 front hot-swap E3.S 1T NVMe drive bays
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
System Cooling
Fans	6 Heavy Duty 60mm Fan(s)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
	Operating Relative Humidity: 8% to 90% (Non-Condensing)
	Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
	Operating Temperature: 10°C to 35°C (50°F to 95°F)

Name	Part Number	Price	Add to Cart	Qty.	Description
Cable	CBL-C6-OR05FT-P			2	BMC interconnect cable for GPU-NVDPU-B3220SH-H
Cable	CBL-CDAT-1120-50W			2	I2C cable for GPU-NVDPU-B3220SH-H
	Cable	CBL-PWEX-0901	$ 23.50		2	Power Cable for of GPU-NVDPU-B3220SH-H
NVIDIA BlueField-3 DPU	GPU-NVDPU-B3220SH-H			2	NVIDIA BlueField-3 B3220SH self-hosted DPU

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro SSG-229J-5BE36JBF 2U Rackmount With Two hot-pluggable Systems (Nodes) 2x 2000W Power Supplies

$ 6,766.00$ 6,766.006766.0USD

$ 6,766.00
