| GPU |
| Max GPU Count | 1 double-width or 1 single-width GPU |
| System Memory |
| Memory Voltage | 1.1V |
| Memory | Slot Count: 2 DIMM slots |
| Max Memory (2DPC): Up to 64GB 5600MT/s non-ECC DDR5 SO-DIMM |
| 檢視記憶體選項 |
| On-Board Devices |
| Chipset | Intel® Q670E |
| Network Connectivity | 1 RJ45 1GbE with Intel® I210-AT |
| 檢視 AOC 選項 |
| 1 RJ45 2.5GbE with Intel® I226 |
| Input / Output |
| LAN | 1 RJ45 1 GbE LAN port (Intel® I210-AT) |
| 1 RJ45 2.5 GbE LAN port (Intel® I226-LM) |
| Audio | Line Out |
| Mic in |
| USB | 2 USB 3.2 Gen1 Type-A ports(front) |
| 4 USB 3.2 Gen2 Type-A ports(Rear) |
| Video | 1 HDMI 1.4 port(Rear) |
| 2 DisplayPort ports(Rear) |
| 1 HDMI 2.0b port(Rear) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash |
| BIOS Features | ACPI 6.0 |
| Plug and Play (PnP) |
| RTC (Real Time Clock) Wakeup |
| SPI dual/quad speed support |
| Management |
| Software | Supermicro 5 (SD5) |
| 超級診斷離線模式 (SDO) |
| SuperServer (SAA) 新推出！ |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Front Panel |
| Buttons | Power On/Off |
| LED | Power status LED |
| HDD activity |
| Port | USB Type-A Ports-USB 3.2 Gen 1X1 ports (5G) |
| USB Type-C-USB 3.2 Gen 1X2 port (10G) |
| Drive Bays / Storage |
| Drive Bays Configuration | 1 internal fixed 2.5" SATA drive bay |
| Default: Total 2 bays 1 internal fixed 2.5" SATA drive bay 1 internal fixed 3.5" SATA drive bay |
| 1 internal fixed 3.5" SATA drive bay |
| M.2 | 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280) |
| 檢視 M.2 選項 |
| Product SKUs |
| Product SKUs | SYS-521AD-LN2 |
| Motherboard |
| Motherboard | 超級 X13SAV-D5LVDS |
| Processor |
| CPU | Single LGA-1700 |
| 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors |
| Core Count | Up to 24C/32T; Up to 36MB Cache |
| Note | Supports up to 65W TDP CPUs (Air Cooled) |
| Chassis |

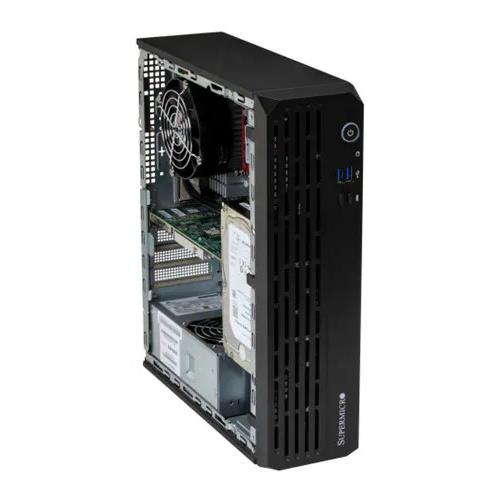

| Form Factor | Compact Mini-Tower |
| Model | CSE-GS2B-000NBP2 |
| Dimensions and Weight |
| Height | 13.43" (341 mm) |
| Width | 3.62" (92 mm) |
| Depth | 11.42" (290 mm) |
| Package | 17.95" (H) x 7.32" (W) x 15.08" (D) |
| Weight | Gross Weight: 13.9 lbs (6.3 kg) |
| Net Weight: 12.8 lbs (5.8 kg) |
| Available Color | Black |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| System Cooling |
| Fans | Up to 1 Active CPU Heat Sink Fan(s) |
| Up to 1 System FAN 40x28mm Fan(s) |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 35°C (32°F to 95°F) with 0.7 m/s airflow |
