| Main Specifications |

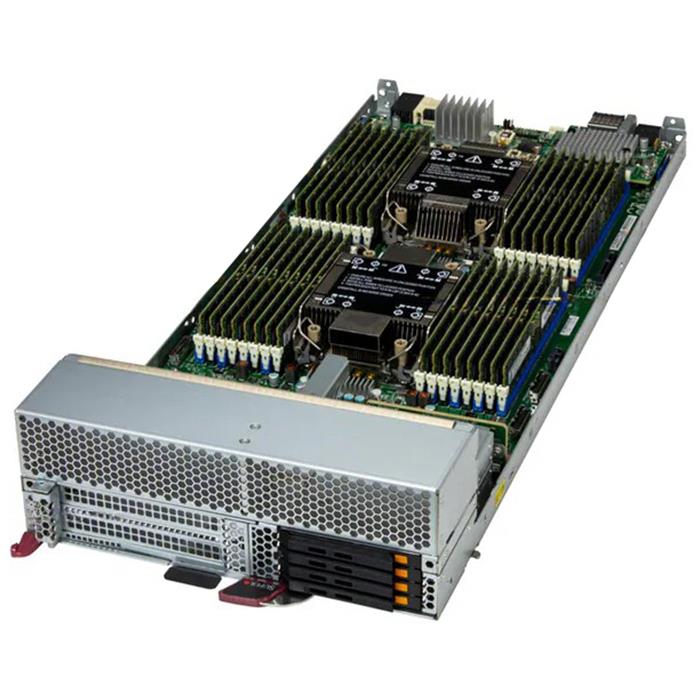

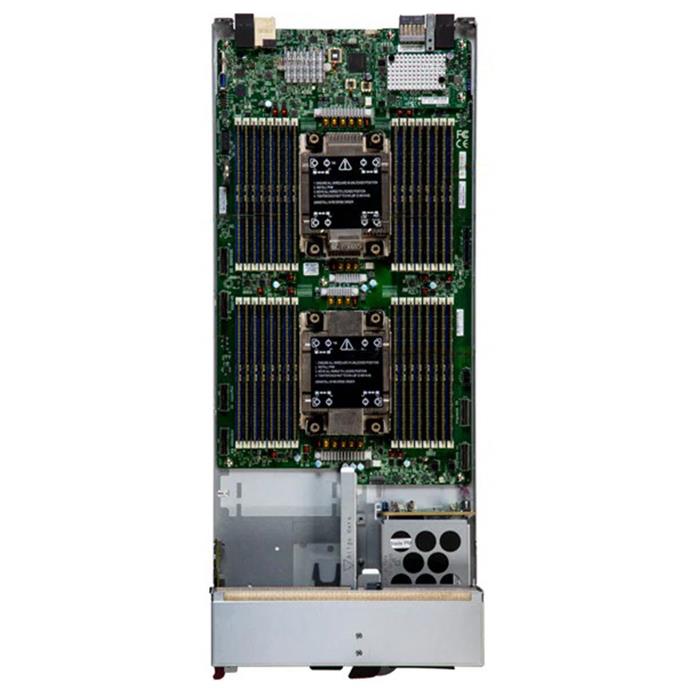

| Device Type | SuperBlade Sled |

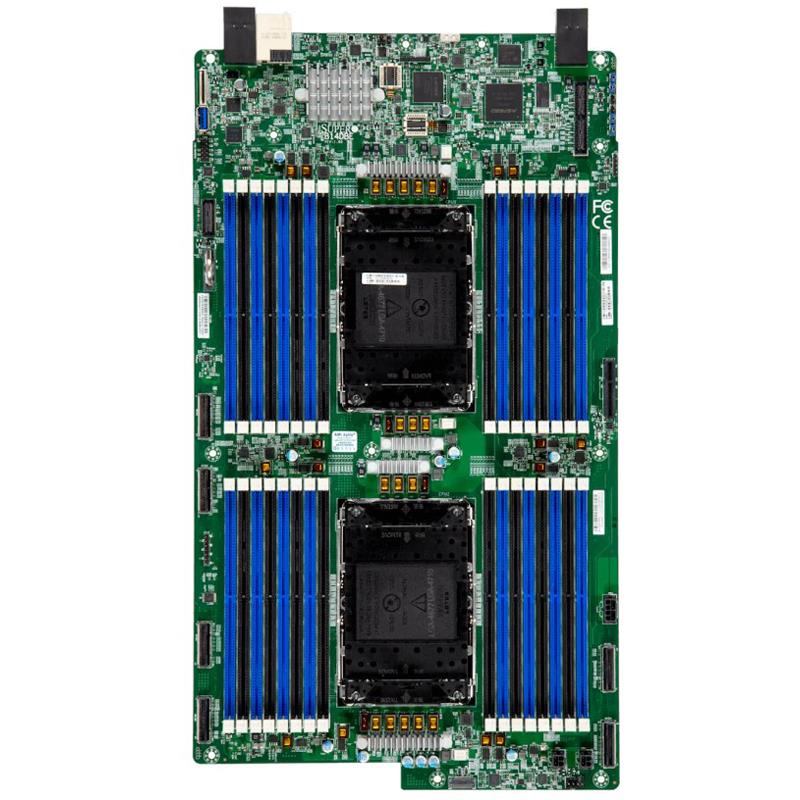

| Built-in Devices | MBD-B14DBE |
| Dimensions (WxDxH) | Height 3.4" x Width 9.83" x Depth 24.8" |
| Weight | 16.5 lbs (7.5kg) |
| Enclosure Color | Metalic Silver with Black Drive Bays |
| Processor |
| Compatible Processors | Intel Xeon 6700/6500 series processors with E-cores or P-cores |
| Compatible Socket | Dual Socket E2 (LGA-4710) |
| CPU TDP | Up to 350W TDP CPU (Air Cooled), Direct liquid cooling solution is available |
| System Memory |
| Memory Capacity | 32 DIMM slots (2DPC), Up to 8TB DDR5 ECC RDIMM and 3DS-RDIMM, Up to 1TB DDR5 ECC MRDIMM for P-core CPU |
| Memory Type | Up to 256GB of RDIMM (3DS-RDIMM) memory with speed up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC) |
| Up to 64GB of MRDIMM memory with speed up to 8000MT/s (1DPC) |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Onboard Dual 25G Ethernet |
| 1 expansion slot with optional mezzanine cards with Dual port 25G Ethernet |
| MGMT/Security | IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust |
| Graphics | Aspeed AST2600 |
| System BIOS |
| BIOS Type | 64Mb SPI Flash EEPROM with AMI® BIOS |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED, UID, Network Activity LED, Fault LED |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x16 slots, support 2 FHHL single-width PCIe cards |
| M.2 | Optional: 2 M.2 2280 NVMe SSDs via adaptor |
| Drive Bays / Storage |
| Drive Bays / Storage | 4 Hot-swap E3.S drive bays |
| Input / Output |
| TPM | 1 TPM 2.0 Header |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 80% (non-condensing) |
