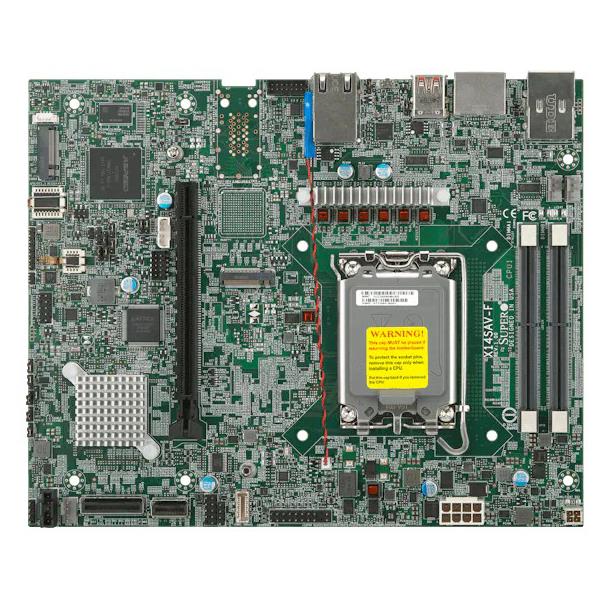

Supermicro X14SAV-F-B Motherboard Flex ATX Single Socket V1 (LGA-1851) Intel Core Ultra 9/7/5 (Series 2) Processors

Supermicro X14SAV-F-B Motherboard Flex ATX Single Socket V1 (LGA-1851) Intel Core Ultra 9/7/5 (Series 2) Processors

  • 4× SATA3 ports with RAID 0/1/5/10

  • Dual 2.5GbE LAN (Intel i226LM with AMT/vPro)

  • Intel Core Ultra 9/7/5 Series 2 CPUs (LGA-1851, up to 125W)

  • Up to 96GB ECC/non-ECC DDR5 C/SODIMM (up to 6400MT/s)

Motherboard Flex ATX Support Single Socket V1 (LGA-1851) For Intel Core Ultra 9/7/5 (Series 2) Processors, Up to 24-core. Supports Up To 125W TDP CPUs. CSODIMM (Clocked SODIMM) Support Up To 6400MT/s (With Core Ultra 9/7) In 2 DIMM Slots. On-Board: Intel W880 SATA Controller With RAID. LAN Ports: Dual LAN With Intel I226LM Ethernet Controller, 1 RJ45 1GbE Dedicated IPMI LAN Port. Includes 1 PCIe 5.0 x16 Slot, 1 PCIe 4.0 x8 Via MCIO Connector Slot - (MBD-X14SAV-F-B)

$ 509.50$ 509.50509.5USD

$ 509.50

Option not available

PreOrder
4 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. Supports 12V DC power input

    2. Intel Core Ultra 9/7/5 Series 2 Processor, Single Socket LGA-1851, up to 125W TDP

    3. Up to 96GB ECC/non-ECC CSODIMM/SODIMM, up to 6400MT/s, 2 slots

    4. 1 PCIe 5.0 x16 slot (16/NA or 8/8 or 8/4/4)

    5. 1 MCIO x8 port

    6. 1 MCIO x4 port

    7. 1 M.2 M-Key 2280 (PCIe 5.0 x4)

    8. 1 M.2 B-Key 3052 (PCIe 4.0 x1 / USB 3)

    9. Dual 2.5GbE LAN with Intel i226LM (AMT/vPro)

    10. Intel W880 controller with 4 SATA3 ports (RAID 0/1/5/10)

    Extra Specifications for Supermicro X14SAV-F-B Motherboard Flex ATX Single Socket V1 (LGA-1851) Intel Core Ultra 9/7/5 (Series 2) Processors

    Main Specifications
    Device TypeMotherboard
    Form FactorFlex ATX
    Dimensions (WxDxH)9" x 7.25" (22.86cm x 18.42cm)
    Processor
    Compatible ProcessorsIntel Core Ultra 9/7/5 Series 2 Processors
    Compatible SocketSingle Socket V1 (LGA-1851) supported, CPU TDP supports Up to 125W TDP
    Cache/CoresUp to 24 core
    System Memory
    Memory Capacity2 DIMM slots, Up to 96GB Unbuffered ECC/non-ECC SODIMM, DDR5-6400MT/s, CSODIMM (clocked SODIMM) support up to 6400MT/s (with Core Ultra 9/7)
    Memory Type5600/4800/4400/4000 MT/s ECC/non-ECC DDR5 SODIMM Unbuffered
    DIMM Sizes8GB, 16GB, 24GB, 32GB, 48GB
    Memory Voltage1.1V
    Error DetectionCorrects single-bit errors, Detects double-bit errors (using ECC memory)
    On-Board Devices
    Network ControllersDual LAN with Intel I226LM Ethernet Controller
    Input / Output
    LAN1 RJ45 GbE LAN port
    Serial Port / Headers1 COM
    Others2 MCIO port(s)
    Expansion / Connectivity
    Expansion Slots Total (Free)1 PCIe 5.0 x16, 1 PCIe 4.0 x8 MCIO connector
    M.2Key: M-key
    Form Factor: 2280
    M.2 Interface: 1 PCIe 5.0
    System BIOS
    BIOS TypeAMI 32MB UEFI
    BIOS FeaturesUEFI 2.9
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageVBAT, Memory temperature, CPU temperature, Chipset voltage, 3 -fan status, +5V, +3.3V, +12V, +1.8V, BMC/IPMI Heartbeat LED, UID, 3 fans with tachometer monitoring
    LEDPower LED
    TemperatureMonitoring for CPU and chassis environment, CPU thermal trip support
    Other FeaturesRoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
    FAN3x 4-pin fan headers (up to 3 fans)
    Environmental
    Operating EnvironmentNon-Operating Relative Humidity Range: 5% - 95% (non-condensing)
    Operating Relative Humidity Range: 10% - 85% (non-condensing)
    Operating Temperature Range: 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range: -40°C - 85°C (-40°F - 85°F)
    Parts List
    I/O Cables1x CBL-MCIO-1250QT4Q-85, 1x CBL-PWEX-1066
    I/O Shield1x MCP-260-00197-0N

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
