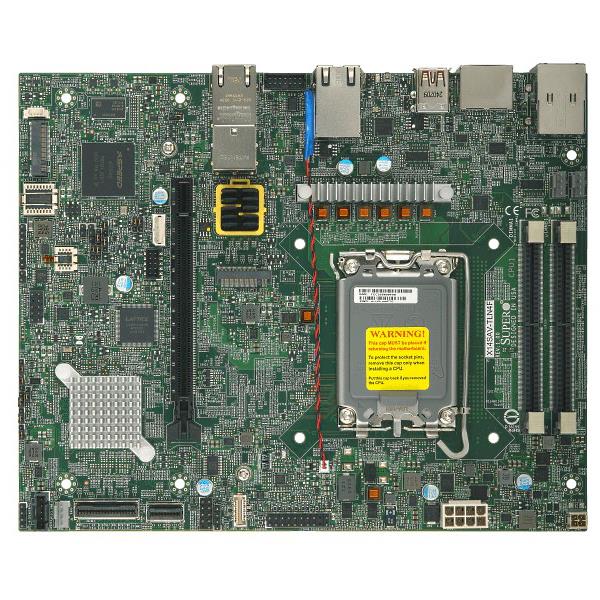

Supermicro X14SAV-TLN4F-B Motherboard Flex ATX Single Socket V1 (LGA-1851) Intel Core Ultra 9/7/5 (Series 2) Processors

Supermicro X14SAV-TLN4F-B Motherboard Flex ATX Single Socket V1 (LGA-1851) Intel Core Ultra 9/7/5 (Series 2) Processors

  • Intel W880 controller, 4× SATA3 ports, RAID 0/1/5/10

  • Intel Core Ultra 9/7/5 Series 2 Processor, Single Socket LGA-1851

  • Up to 96GB ECC/non-ECC CSODIMM/SODIMM, up to 6400MT/s, 2 slots

  • Dual 10GbE LAN (Intel X550-AT2), Dual 2.5GbE LAN (Intel i226LM, AMT/vPro)

Motherboard Flex ATX Support Single Socket V1 (LGA-1851) For Intel Core Ultra 9/7/5 (Series 2) Processors, Up to 24-core. Supports Up To 125W TDP CPUs. Up To 96GB 6400MT/s ECC/non-ECC DDR5 SO-DIMM In 2 DIMM Slots. On-Board: Intel W880 SATA Controller With RAID. LAN Ports: Dual LAN With Intel I226LM Ethernet Controller, Dual LAN With Intel X550 10GBase-T Ethernet Controller, 1 RJ45 1GbE Dedicated IPMI LAN Port. Includes 1 PCIe 5.0 x16 Slot, 1 PCIe 4.0 x8 Via MCIO Connector Slot, 1 M.2 PCIe 5.0 x4 slot (M-key 2280) - (MBD-X14SAV-TLN4F-B)

$ 654.00$ 654.00654.0USD

$ 654.00

Option not available

PreOrder
4 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. Intel Core Ultra 9/7/5 Series 2 Processor, Single Socket LGA-1851, up to 125W TDP

    2. Up to 96GB ECC/non-ECC CSODIMM/SODIMM, up to 6400MT/s, 2 slots

    3. 1 PCIe 5.0 x16 slot (16/NA, 8/8, 8/4/4)

    4. 1 MCIO x8 port, 1 MCIO x4 port

    5. 1 M.2 M-Key 2280 (PCIe 5.0 x4)

    6. 1 M.2 B-Key 3052 (PCIe 4.0 x1 / USB 3)

    7. Dual 10GbE LAN (Intel X550-AT2)

    8. Dual 2.5GbE LAN (Intel i226LM, AMT/vPro)

    9. Intel W880 controller, 4 SATA3 ports, RAID 0/1/5/10

    10. Supports 12V DC power input

    11. Optimized server design SYS-E300-14AR

    Extra Specifications for Supermicro X14SAV-TLN4F-B Motherboard Flex ATX Single Socket V1 (LGA-1851) Intel Core Ultra 9/7/5 (Series 2) Processors

    Main Specifications
    Device TypeMotherboard
    Form FactorFlex ATX
    Dimensions (WxDxH)9" x 7.25" (22.86cm x 18.42cm)
    Processor
    Compatible ProcessorsIntel Core Ultra 9/7/5 (Series 2) processors
    Compatible SocketSingle Socket V1 (LGA-1851) supported, CPU TDP supports Up to 125W TDP
    Cache/CoresUp to 24 core
    System Memory
    Memory CapacitySlot Count: 2 DIMM Slots, Max Memory (1DPC): Up to 96GB 6400MT/s ECC/non-ECC DDR5 SO-DIMM
    CSODIMM (clocked SODIMM) support up to 6400MT/s (with Core Ultra 9/7)
    Memory Voltage1.1V
    Error DetectionCorrects single-bit errors, Detects double-bit errors (using ECC memory)
    On-Board Devices
    Network ControllersDual LAN with Intel I226LM Ethernet Controller, Dual LAN with Intel X550 10GBase-T Ethernet Controller
    Others2 MCIO port(s)
    Input / Output
    LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s) (ASPEED AST2600 BMC)
    USB(s)2 USB 2 port(s) (Header), 4 USB 3.2 Gen2 Type-A port(s) (Rear), 2 USB 3.2 Gen2 port(s) (Header)
    Video Output1 HDMI 2.1 port, 1 Display Port, 1 Header port
    Serial Port / Headers1 COM port(s) (header)
    TPM1 TPM Header & Chip both
    Expansion / Connectivity
    Expansion Slots Total (Free)1 PCIe 5.0 x16 slot, 1 PCIe 4.0 x8 via MCIO Connector slot
    M.21 M.2 PCIe 5.0 x4 slot (M-key 2280)
    System BIOS
    BIOS TypeAMI 32MB UEFI
    BIOS FeaturesACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage+1.8V,+12V,+3.3V,+5V,3 -fan status,3 fans with tachometer monitoring,BMC/IPMI Heartbeat LED,Chipset voltage,CPU temperature,Memory temperature,UID,VBAT
    LEDPower LED
    TemperatureCPU thermal trip support, Monitoring for CPU and chassis environment
    FAN3x 4-pin fan headers (up to 3 fans)
    Other Features12V DC or ATX Power Source, ACPI power management, ATX power connector, Chassis intrusion detection, M.2 NGFF connector, RoHS
    Parts List
    I/O Cables1x CBL-MCIO-1250QT4Q-85, 1x CBL-PWEX-1066
    I/O Shield1x MCP-260-00197-0N

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
