| Main Specifications |

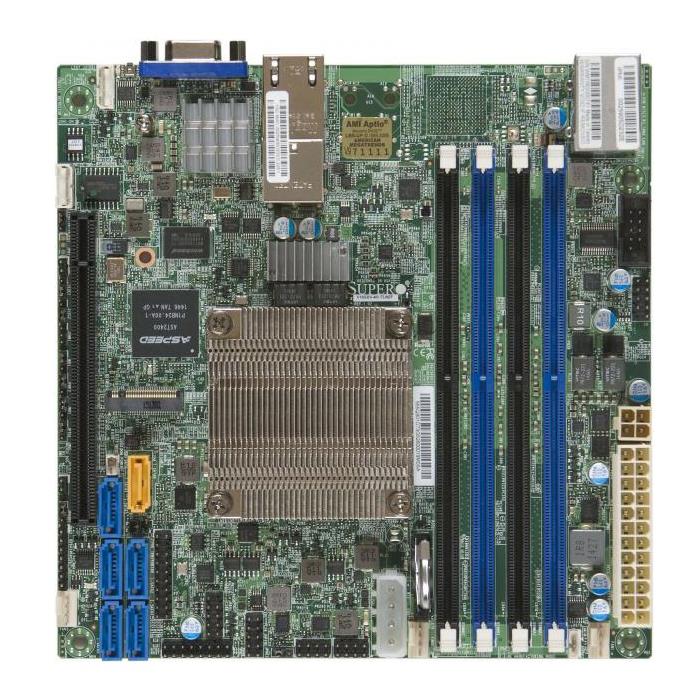

| Device Type | Motherboard |
| Form Factor | Mini-ITX |
| Dimensions (WxDxH) | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor |
| Embedded Processor | Intel Pentium D1508 Processor 2-core/4 thread |
| Compatible Socket | Socket FCBGA1667 supported, CPU TDP support 25W |
| System Memory |
| Memory Capacity | Up to 128GB Registered ECC RDIMM, DDR4-1866MHz, Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-1866MHz, in 4 DIMM slots |
| Memory Type | 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM (Operating speed up to 1866MHz) |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| SATA RAID | SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10, RSTe |
| Graphics | Aspeed AST2400 BMC |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Network Controllers | Dual LAN with 10Gbase-T, Single LAN with Virtual Machine Device Queues reduce I/O overhead, Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output, Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) |
| Input / Output |
| SATA | 6 SATA3 (6Gbps) port |
| LAN | 2 RJ45 10GBase-T ports, 1 RJ45 Dedicated IPMI LAN port |
| USB(s) | 4 USB 2.0 ports (4 headers, Type A), 2 USB 3.0 ports (2 rear) |
| Video Output | 1 VGA port |
| Serial Port / Header | 1 COM Port (1 header) |
| TPM | 1 TPM Header |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x16 |
| M.2 | Key: M-key |
| M.2 Interface: 1 SATA/PCI-E 3.0 x4 |
| Form Factor: 2242, 2280 |
| System BIOS |
| BIOS Type | 128Mb SPI Flash with AMI BIOS |
| BIOS Features | PCI 3.0, ACPI 3.0 / 4.0, USB Keyboard support, Hardware BIOS Virus protection, RTC (Real Time Clock) Wakeup, SMBIOS 2.8, UEFI 2.4 |
| Management |
| Software | Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor 5, Watchdog |
| Power Configurations | ACPI Power Management, CPU Fan auto-off in sleep mode, Power-on mode for AC power recovery |
| PC Health Monitoring |
| Voltage | +12V, +3.3V, +5V, Chassis intrusion header, Monitors for CPU Cores, System level control, VBAT |
| FAN | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI |
| LED | CPU / System Overheat LED |
| Other Features | 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS |
| Environmental |
| Operating Environment | Operating Temperature Range: 0°C ~ 60°C (32°F ~ 140°F) |
| Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F) |
| Non-Operating Relative Humidity Range: 10% ~ 95% (non-condensing) |
| Operating Relative Humidity Range: 10% ~ 85% (non-condensing) |
| Parts List |
| I/O Cables | 2x CBL-0044L |
| I/O Shield | 1x MCP-260-00084-0N |
