- Supermicro X10SDV-TP8F-B Motherboard Flex ATX Embedded Intel Xeon D-1518 Processor

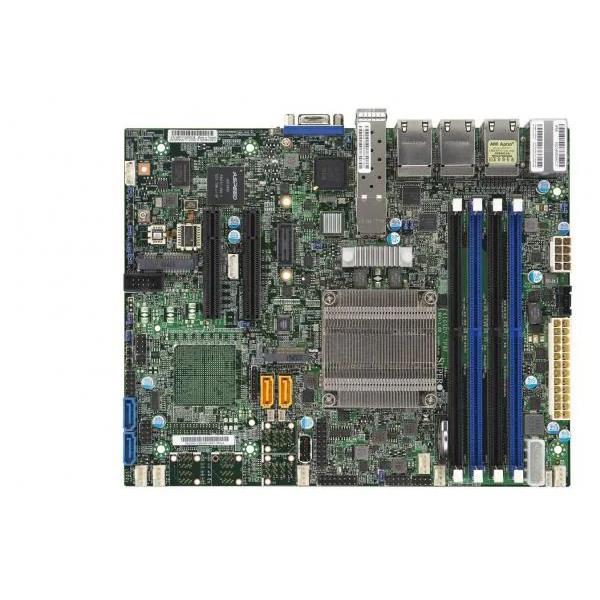

Supermicro X10SDV-TP8F-B Motherboard Flex ATX Embedded Intel Xeon D-1518 Processor
Includes 4 SATA3 (6Gbps) ports via SoC
Features 2x 10G SFP+ and 6x GbE LAN ports
Powered by an Intel Xeon D-1518 4-core processor
Optimized for embedded systems and compact servers
Motherboard Flex ATX Embedded Intel Xeon D-1518 Processor With 4-Core / 8-Thread 6MB Cache, 35W TDP. Up To 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM In 4 Sockets. On-Board: SoC Controller For 4 SATA3 (6 Gbps) Ports, RAID 0,1,5,10 RSTe. LAN Ports: 1 RJ45 Dedicated IPMI LAN Port, 2 10G SFP+ LAN Ports, 6 1GbE LAN Ports. Others: 7 USB Ports, 1 VGA Port, 1 COM Port (1 Header), 1 TPM Header. Includes 2 PCI-E 3.0 x8, Mini PCI-E (mSATA Support), M.2 PCI-E 3.0 x4 (SATA Support), M Key 2242/2280/22110 - (MBD-X10SDV-TP8F-B)
Intel Xeon processor D-1518, Single socket FCBGA 1667; 4-Core, 8 Threads, 35W
Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
2 PCI-E 3.0 x8,
Mini PCI-E (mSATA support),
M.2 PCI-E 3.0 x4 (SATA support),
M Key 2242/2280/22110
2 10G SFP+ and 6 GbE LAN
4 SATA3 (6Gbps) ports via SoC
2 USB 3.0 ports (rear), 5 USB 2.0 ports (4 via headers, 1 Type A)
2 SuperDOM, 1 COM, TPM 2.0 header, GPIO and SMbus headers
12V DC Input and ATX Power Source
Extra Specifications for Supermicro X10SDV-TP8F-B Motherboard Flex ATX Embedded Intel Xeon D-1518 Processor
| Main Specifications | ||
| Device Type | Motherboard | |
| Form Factor | Flex ATX | |
| Dimensions (WxDxH) | 9.0" x 7.25" (22.86cm x 18.42cm) | |
| Processor | ||
| Embedded Processor | Intel Xeon processor D-1518, 2.2GHz, CPU TDP support 35W | |
| Cache/Core | 4 cores, 8 threads / 6MB cache | |
| System Memory | ||
| Memory Capacity | Up to 128GB Registered ECC RDIMM, DDR4-2133MHz | |
| Up to 128GB Registered ECC RDIMM, DDR4-2133MHz, Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots | ||
| Memory Type | 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM | |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| Chipset | System-on-Chip | |
| SATA/SAS | SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10, RSTe | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | Aspeed AST2400 BMC | |
| Network Controllers | Dual LAN with 10G SFP+ from D-1500 SoC, Quad LAN with 1GbE with Inte I350-AM4, Dual LAN with 1GbE with Intel I210, Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) port | |
| LAN | 1 RJ45 Dedicated IPMI LAN port, 2 10G SFP+ LAN ports, 6 1GbE LAN ports | |
| USB(s) | 5 USB 2.0 ports (4 headers, 1 Type A), 2 USB 3.0 ports (2 rear) | |
| Video Output | 1 VGA port | |
| Serial Port / Headers | 1 COM Port (1 header) | |
| TPM | 1 TPM Header | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 2 PCI-E 3.0 x8 | |
| M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA Support | ||
| M.2 | 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280/22110 | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| BIOS Features | PCI 3.0, ACPI 5.0, USB Keyboard support, Hardware BIOS Virus protection, RTC (Real Time Clock) Wakeup, SMBIOS 2.8, UEFI 2.4 | |
| Management | ||
| Software | Intel Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor 5, Watchdog | |
| Power Configurations | ACPI Power Management, ATX Power connector, +12V DC Power Input, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL | |
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), 6 -fan status, Chassis intrusion header, HT, Memory, Memory Voltages, Supports system management utility, System level control, System temperature, VBAT | |
| FAN | 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI | |
| LED | CPU / System Overheat LED, UID/Remote UID | |
| Other Features | 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Hyper-Speed Technology hardware acceleration, Intel Smart Response Technology, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL | |
| Environmental | ||
| Operating Environment | Operating Relative Humidity Range: 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) | ||
| Operating Temperature Range: 0°C ~ 60°C (32°F ~ 140°F) | ||
| Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F) | ||
| Parts List | ||
| I/O Shield | 1x MCP-260-000980N | |
| I/O Cables | 2x CBL-0044L | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
