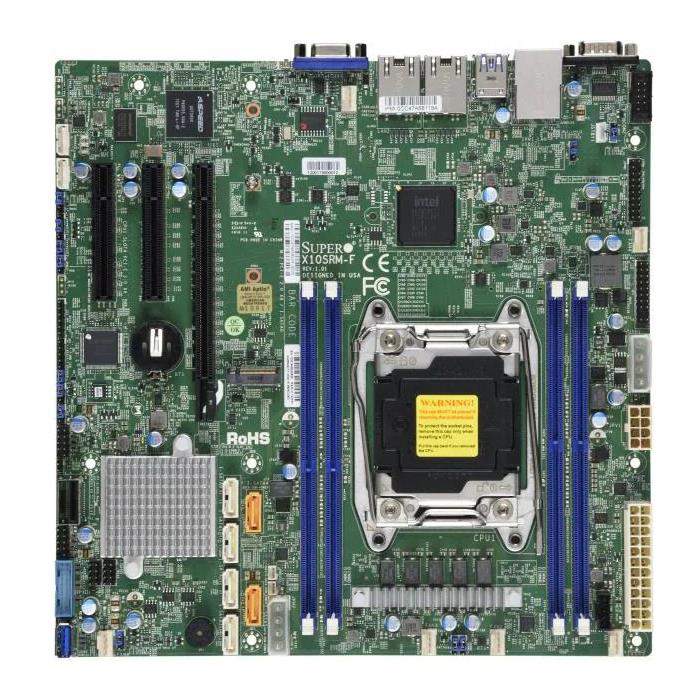

| Main Specifications |
| Device Type | Motherboard |
| Form Factor | Micro-ATX |
| Dimensions (WxDxH) | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| Compatible Processors | Intel Xeon Processor E5-1600 v3, Intel Xeon Processor E5-1600 v4, Intel Xeon processor E5-2600 v3, Intel Xeon processor E5-2600 v4 |
| Compatible Socket | Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 145W TDP |
| Cache/Core | Up to 22 Cores / Up to 55MB Cache |
| System Memory |
| Memory Capacity | Up to 128GB Registered ECC RDIMM, DDR4-2400MHz, Up to 256GB Registered ECC LRDIMM, DDR4-2400MHz, in 4 DIMM slotsUp to 512GB ECC 3DS LRDIMM, in 4x 288-pin DDR4 DIMM slots |
| Memory Type | 2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
| DIMM Sizes | 3DS LRDIMM: 128GB |
| LRDIMM: 32GB, 64GB |
| RDIMM: 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel C612 |
| SATA RAID | Intel C612 controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Aspeed AST2400 BMC |
| Network Controllers | Dual LAN with Intel i350 Gigabit Ethernet ControllerSupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Graphics | ASPEED AST2400 BMC |
| Input / Output |
| SATA | 10 SATA2 (3Gbps) ports |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port |
| USB(s) | 6 USB 2.0 ports (2 rear + 4 via headers), 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) |
| Video Output | 1 VGA port |
| Serial Port / Headers | 2 COM Ports (1 rear, 1 header), 2 fast UART 16550 serial |
| TPM | 1 TPM Header |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 |
| M.2 | M.2 Interface: 1 SATA/PCI-E 2.0 x4, Form Factor: 2242, 2280, 22110 |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | Plug and Play (PnP), APM 1.2, DMI 2.3, PCI 2.3, ACPI 1.0 / 2.0 / 3.0 / 4.0, USB Keyboard support, Hardware BIOS Virus protection, SMBIOS 2.7.1, UEFI 2.3.1, RTC (Real Time Clock) Wakeup |
| Environmental |
| Operating Environment | Operating Temperature Range: 0°C ~ 60°C (32°F ~ 140°F) |
| Non-Operating Relative Humidity Range: 10% ~ 95% (non-condensing) |
| Non-Operating Temperature Range: -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Relative Humidity Range: 10% ~ 85% (non-condensing) |
| Parts List |
| I/O Cables | 2x CBL-0044L |
| I/O Shield | 1x MCP-260-00042-0N |
