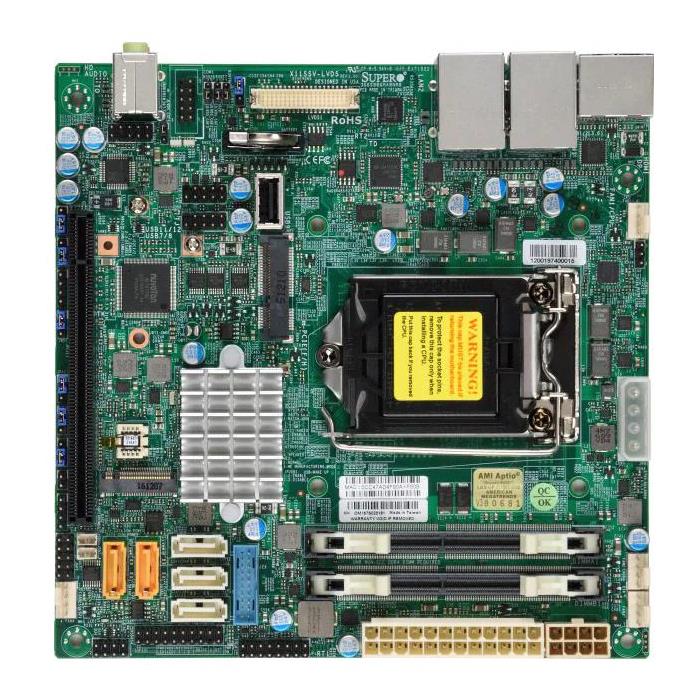

Supermicro X11SSV-LVDS-B Motherboard Mini-ITX Single Socket H4 (LGA 1151) Intel Celeron / Pentium And 7th Generation Core i7 Series Processors

Supermicro X11SSV-LVDS-B Motherboard Mini-ITX Single Socket H4 (LGA 1151) Intel Celeron / Pentium And 7th Generation Core i7 Series Processors

  • Offers M.2 with Form Factor: 2280, 2242

  • Supports Intel 7th/6th Gen. Core i7/i5/i3 series Processor

  • Intel Q170 Express controller for 5 SATA3 (6 Gbps) ports RAID

  • Up to 32GB SODIMM, DDR4-2400MHz memory in 2 DIMM slots

Motherboard Mini-ITX Supports Single Socket H4 (LGA 1151) For Intel 6th Generation Core I3 Series, Intel Celeron, Intel Pentium, Intel 6th Generation Core I5 Series, Intel 6th Generation Core I7 Series, Intel 7th Generation Core I3 Series, Intel 7th Generation Core I5 Series, Intel 7th Generation Core I7 Series. Up To 2GB Unbuffered non-ECC SODIMM, DDR4-2400MT/s In 2 Socket. On-Board: Intel Q170 Express Controller For 5 SATA3 Ports, RAID 0,1,5,10. LAN Ports: Dual GbE LAN With Intel i219LM + i210AT. Others: 1 LVDS Port, 1 COM, 1 TPM Header, 1 SMBus Header, 1 SGPIO Header, 1 GPIO. Includes 1 PCIe 3.0 x16, Mini-PCIe With mSATA Support, M.2 PCIe 3.0 x4 With SATA Support - (MBD-X11SSV-LVDS-B)

$ 253.00$ 253.00253.0USD

$ 253.00

Option not available

PreOrder
2 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. Supports 12V DC power input
    2. Single socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
    3. Intel® Q170 Express chipset
    4. Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots
    5. 1 PCIe 3.0 x16, Mini-PCIe (mSATA support) M.2 PCIe 3.0 x4 (SATA support), M Key 2242/80
    6. 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays
    7. Dual GbE LAN w/ Intel i219LM + i210AT
    8. 5 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
    9. AMT, vPro
    10. 2 SATA DOM, 1 COM,TPM header, ALC 888S HD Audio

    Extra Specifications for Supermicro X11SSV-LVDS-B Motherboard Mini-ITX Single Socket H4 (LGA 1151) Intel Celeron / Pentium And 7th Generation Core i7 Series Processors

    Main Specifications
    Device TypeMotherboard
    Form FactorMini-ITX
    Dimensions (WxDxH)6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    Compatible ProcessorsIntel 6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel 6th Generation Core i5 series, Intel 6th Generation Core i7 series, Intel 7th Generation Core i3 series, Intel 7th Generation Core i5 series, Intel 7th Generation Core i7 series
    Compatible SocketSingle Socket LGA-1151 (Socket H4) supported
    CPU TDPCPU TDP supports Up to 91W TD
    System Memory
    Memory Capacity2 DIMM slots, Up to 32GB Unbuffered non-ECC SODIMM, DDR4-2400MT/s
    Memory Type2400/2133/1866 MT/s non-ECC DDR4 SODIMM Unbuffered SDRAM 72-bit, 260-pin gold-plated
    DIMM Sizes4GB, 8GB, 16GB
    Memory Voltage1.2 V
    On-Board Devices
    ChipsetIntel Q170 Express
    SATA RAIDIntel Q170 Express controller for 5 SATA3 (6 Gbps) ports, RAID 0,1,5,10
    Graphics1 Intel HD Graphics port(s)
    Network ControllersSingle LAN with Intel PHY I219LM LAN controller, Single LAN with Intel Ethernet Controller I210-AT
    Input / Output
    USB(s)4 USB 3.2 Gen1 port(s) (4 rear), 1 USB 2.0 port(s) (1 Type A)
    Video Output1 LVDS port
    Serial Port / Headers1 COM
    TPM1 TPM Header
    Others1 SMBus header, 1 SGPIO Header, 1 GPIO
    Expansion / Connectivity
    Expansion Slots Total (Free)1 PCIe 3.0 x16
    Mini-PCIe with mSATA support, M.2 PCIe 3.0 x4 with SATA support, M Key
    M.2Form Factor: 2280, 2242
    System BIOS
    BIOS TypeAMI UEFI
    BIOS FeaturesACPI 5.0, DMI 2.3, PCI 3.0, Plug and Play (PnP), SMBIOS 3.0, UEFI 2.3.1, RTC (Real Time Clock) Wakeup, USB Keyboard support
    Management
    SoftwareSuperDoctor® 5, NMI, AMT, vPro, Watchdog
    System Management SoftwareSuperDoctor 5
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management
    Environmental
    Operating EnvironmentOperating Relative Humidity Range: 10% - 85% (non-condensing)
    Non-Operating Relative Humidity Range: 10% - 95% (non-condensing)
    Non-Operating Temperature Range: -20°C - 60°C (-4°F - 140°F)
    Operating Temperature Range: 0°C - 60°C (32°F - 140°F)
    Parts List
    I/O Cables2x CBL-0044L
    I/O Shield1x MCP-260-00070-1N

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
